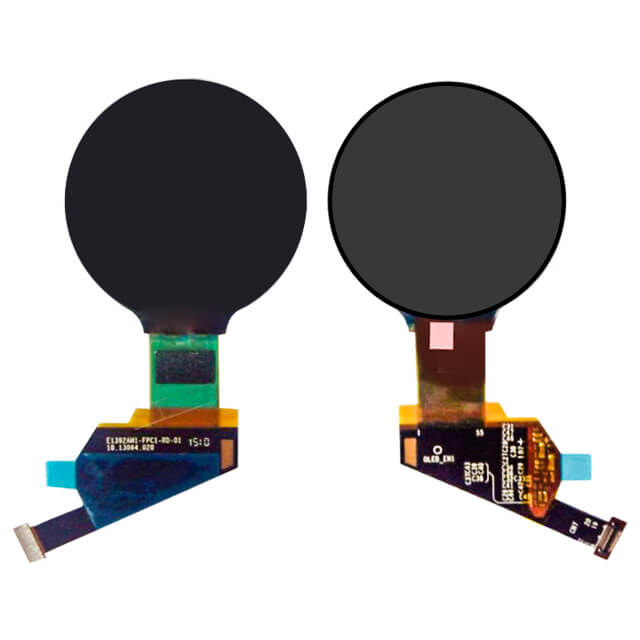

Product size
|
1.39-inch
|
Type
|
AM-OLED , OLED
|
||
|
Pixel Format
|
400(RGB)×400 287PPI
|
Configuration
|
RGB Vertical Stripe
|
||
|
Active Area
|
35.4(H)×35.4(V) mm
|
Outline Dim.
|
38.6(H)×40.5(V) ×0.73(D) mm
|
||
|
Luminance
|
300 cd/m² (Typ.)
|
Contrast Ratio
|
10000:1 (Typ.) (TM)
|
||
|
View Direction
|
Symmetry
|
Response Time
|
2 (Typ.)(Tr+Tf)
|
||
|
Viewing Angle
|
85/85/85/85 (Typ.)(CR≥200)
|
Operating Mode
|
-
|
||
|
Support Color
|
16.7M 100% NTSC
|
Light Source
|
self
|
||
|
Weight
|
2.00g (Typ.)
|
Designed For
|
Wearable Round Display
|
||
|
Frequency
|
60Hz
|
Touch Panel
|
Without
|
||
|
Interface Type
|
MIPI (1 data lane) , 20 pins Connector
|
||||
|
Power Supply
|
1.8/2.8V (Typ.)(IOVCC/VCI)
|
||||
|
Environment
|
Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
|
||||
