7.1"-10.1" LCD Display (7.8")

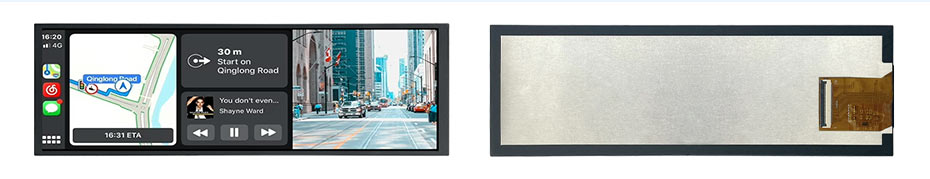

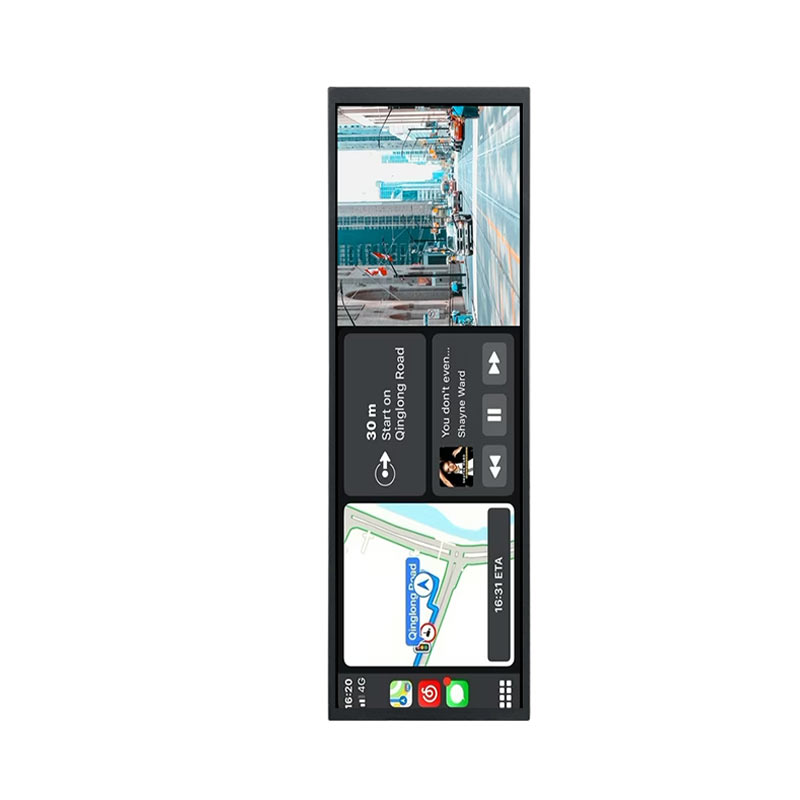

7.84 Inch Stretched Bar Display 400x1280 IPS LVDS 700nits High Brightness TFT LCD Display.

Part No.:ET078HD02-T
Size:7.8″ inch
Resolution:400x1280
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:67.14x205.12mm
Active Area:59.4x190.08mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:700(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

7.84 Inch Stretched Bar Display Overview
7.84 Inch Stretched Bar Display 400x1280 IPS LVDS 700nits High Brightness TFT LCD Display.

More 7.84 Inch Bar Displays For Reference

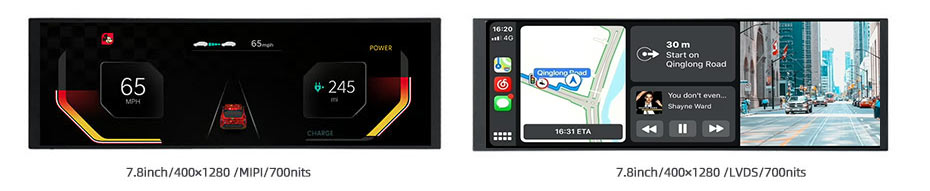

ET078HD01-T (400x1280, MIPI, IPS, 700nits, -20~70°C, 67.14x205.12mm)
ET070BA01-TT (400x1280,LVDS, IPS, 700nits, -20~70°C, 67.14x205.12mm)

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
