0.48"-5" LCD Display (1.3")

1.3 Inch Transflective Display 176x176 3-wire SPI Sunlight Readable LCD Display For Handheld PDA

Part No.:GPM1992A0
Size:1.3″ inch
Resolution:176x176
Panel Interface:3-wire SPI
Display mode:Transflective

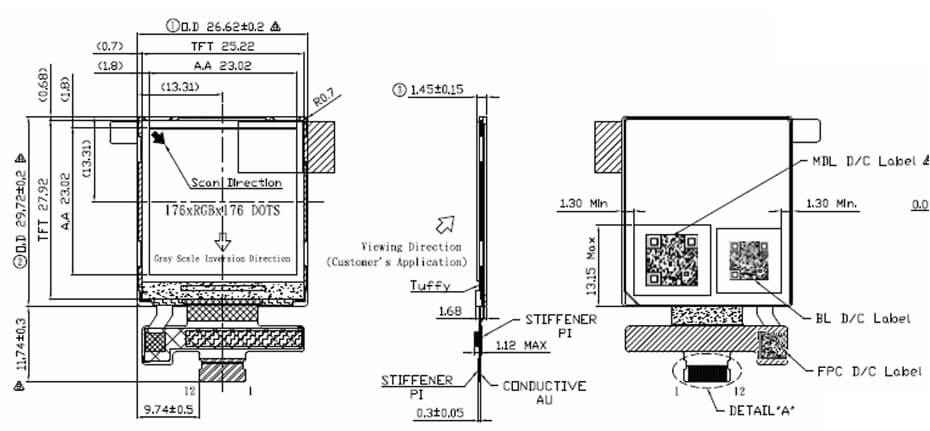

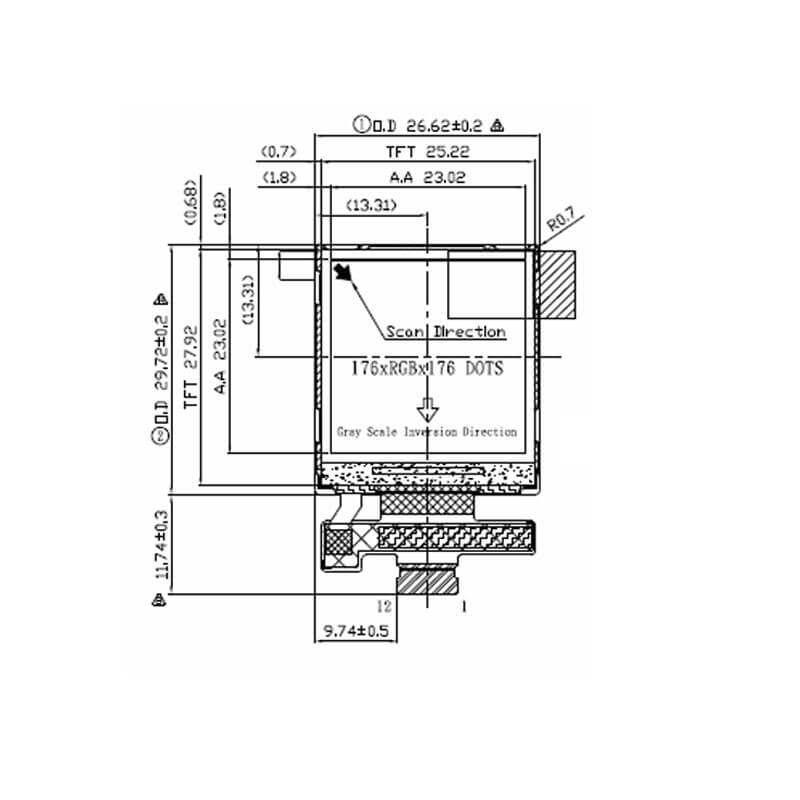

Outline Dimension:26.62x29.72mm
Active Area:23.0208x23.0208mm
Viewing Angle L/R/U/D:50/50/50/50 (Typ.)
Brightness（cd/m2）:15cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.3 Inch Transflective LCD Display Overview
1.3 Inch Transflective Display 176x176 3-wire SPI Sunlight Readable LCD Display For Handheld PDA.

Production and Manufacturing
