COM57H5N32XSC 5.7 Inch Transflective Display 640x480 Parallel RGB Sunlight Readable LCD Display For Handheld PDA

5.7 Inch Transflective LCD Display Overview

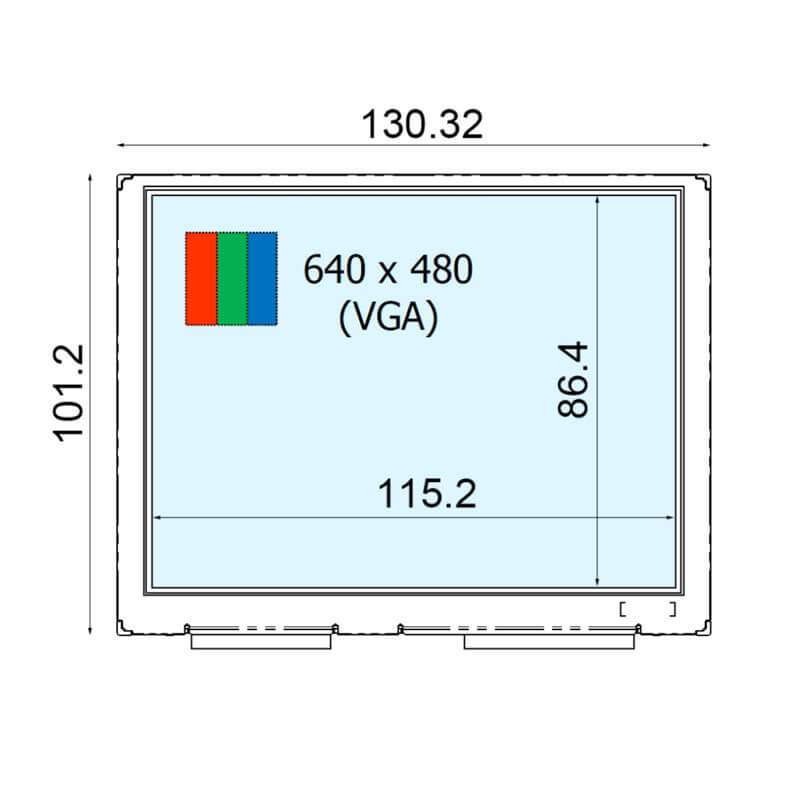

COM57H5N32XSC supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×9.69(D) mm, viewing area size of 118.7(W)×89.9(H) mm, with surface treament of Hard coating (3H), net weight of 120g (Typ.). As a TN, Normally White, Transflective LCM product, COM57H5N32XSC can provides 440 cd/m² display brightness 600:1 transimissive contrast ratio, 4.7:1 (Typ.) reflective contrast ratio, 80/80/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 39% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM57H5N32XSC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 5.7 Inch Transflective LCD Display For Reference
COM57H5N27XLC (640x480, TTL, 550nits, -20~70°C, 130.32x101.2mm)
COM57H5N28XTC (640x480, TTL, 450nits, -20~70°C, 130.32x101.2mm, 4w-RTP)
COM57H5N32XSC (640x480, TTL, 440nits, -20~70°C, 130.32x101.2mm)
COM57H5N33XRC (640x480, TTL, 350nits, -20~70°C, 4w-RTP)
