10.4 Inch Transflective LCD Display Overview

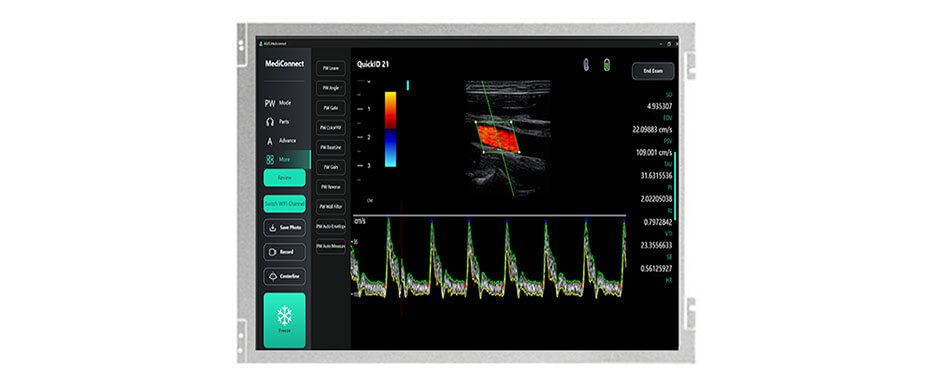

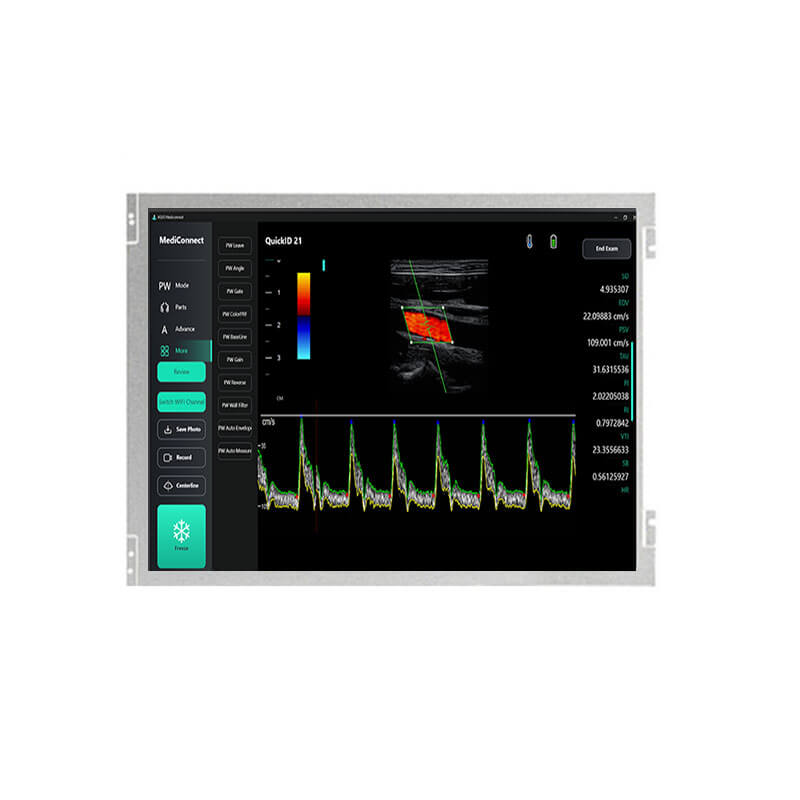

COM104H9M26SRS supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, net weight of TBD. As a FFS, Normally Black, Transflective LCM product, COM104H9M26SRS can provides 760 cd/m² display brightness 1200:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. COM104H9M26SRS utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

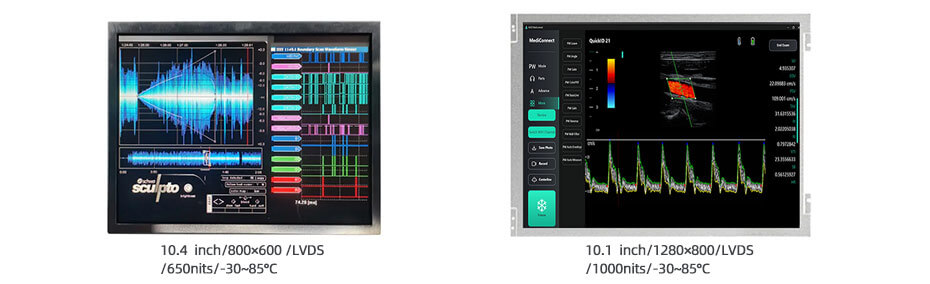

More 10.4 Inch Transflective LCD Display For Reference
COM104H9M25SSS (800x600, LVDS, 650nits, -30~80°C, 230x180.2mm)
COM104H9M26SRS (800x600, LVDS, 760nits,CTP(Optical))
