0.48"-5" LCD Display (1.22")

1.22 Inch Transflective Display 240x206 SPI Sunlight Readable Circular LCD Display For Handheld PDA

Part No.:TFT240206-3-E
Size:1.22″ inch
Resolution:240x206
Panel Interface:SPI
Display mode:Transflective

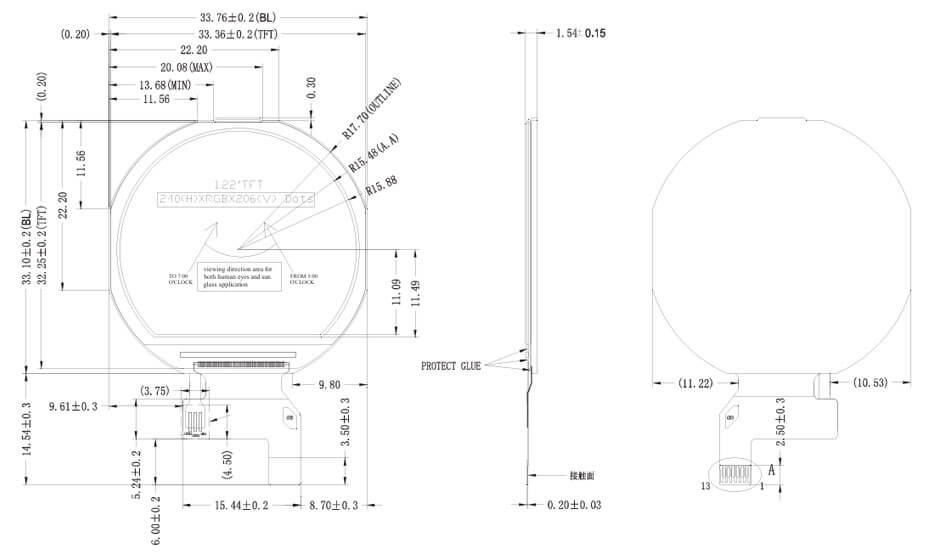

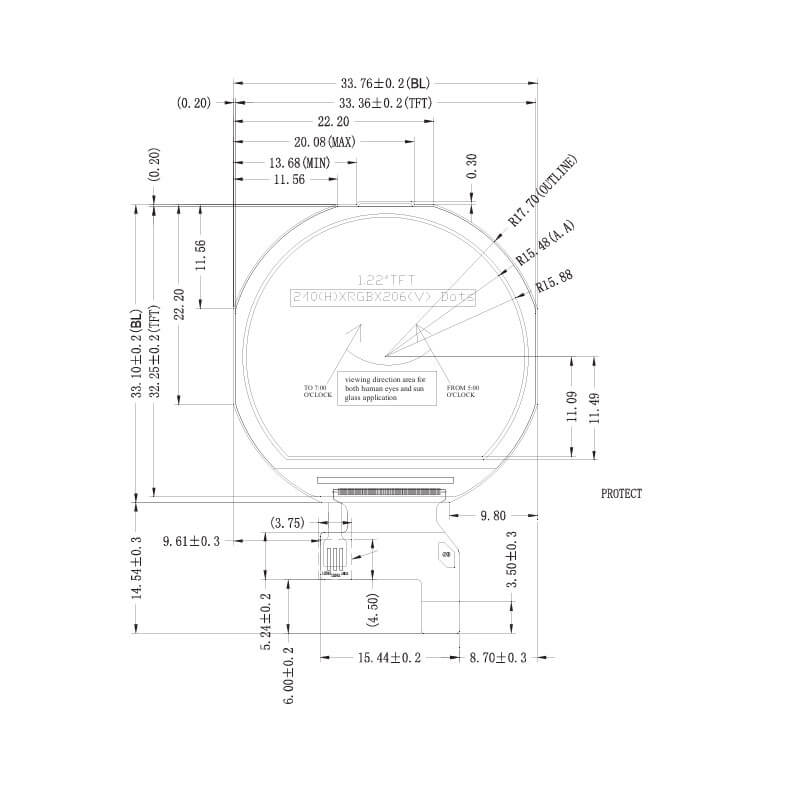

Outline Dimension:33.76x33.1mm
Active Area:30.96x30.96mm
Viewing Angle L/R/U/D:80/55/50/80 (Typ.)
Brightness（cd/m2）:210(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.22 Inch Transflective LCD Display Overview
The TFT240206-3-E is a 1.22-inch transflective circular LCD display for handheld PDAs, featuring a 240×206 resolution and SPI interface. It has an active area of 30.96×30.96 mm with overall dimensions of 33.76×33.1 mm. The display offers 210 cd/m² brightness, typical viewing angles of 80°/55°/50°/80° (L/R/U/D), operates between –20–70 °C, can be stored from –30–80 °C, and does not include touch functionality.
