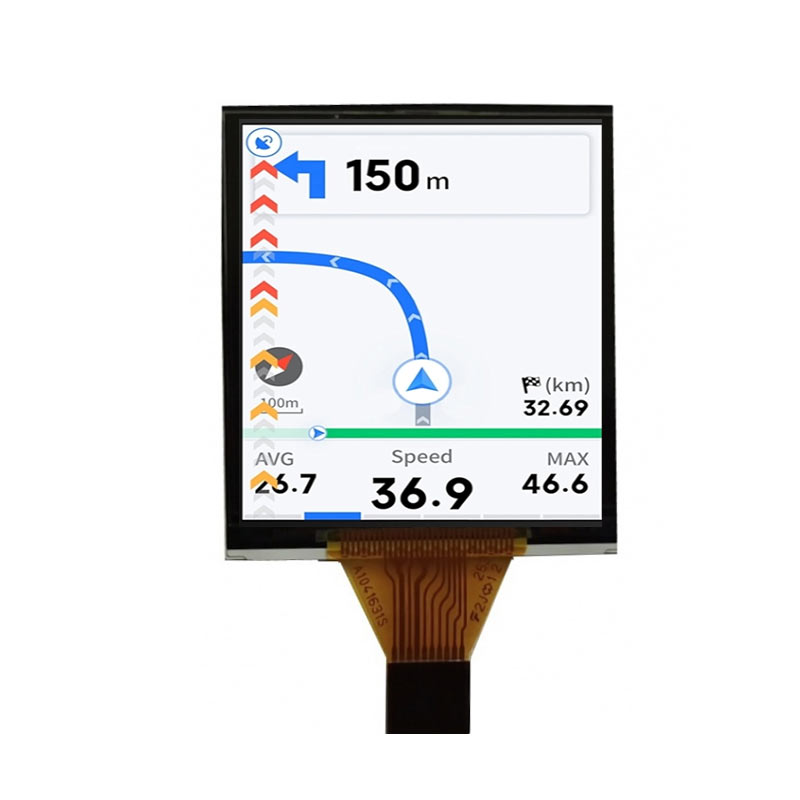

LPM013M126A JDI 1.28 Inch Reflective Display 176x176 Sunlight Readable 3-wire SPI Memory in Pixel Display

LPM013M126A Overview
LPM013M126A supports display 176(RGB)×176 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 23.0208(W)×23.0208(H) mm, outline size of 26.02(W)×27.82(H)×0.974(D) mm, with surface treament of Hard coating (2H), net weight of 1.20g (Typ.). As a ECB, Normally Black, Reflective LCM product, LPM013M126A can provides , 30:1 (Typ.) reflective contrast ratio, 65/65/65/65 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 4/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of 8 colors, also with performance of color gamut 23% (NTSC). This product have no backlight. LPM013M126A utilizes 3-wire SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 3.3/3.3V (Typ.)(VDDA/VDD). It's typical vertical frame rate (Fv) is 60Hz.

LPM013M126A Feature
-Reflective
-Sunlight Readable
-Square

Screen Size: 1.28 inch
Resolution: 176x176
Brand: JDI
LPM013M126A JDI 1.28 Inch 176x176 Sunlight Readable LCD Display.

LPM013M126A Application
For Wearable & Industrial LCD Display.

LPM013M126A Options For Reference
LPM013M126A

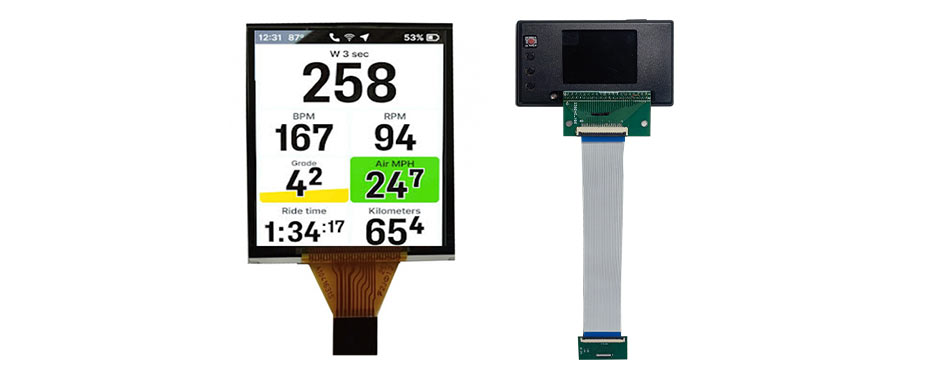

LPM013M126A with demo
LPM013M126A with backlight(NRE)

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
