0.48"-5" LCD Display (1.45")

1.45 Inch Transflective Display IPS 360x360 SPI Sunlight Readable Circular LCD Display For Handheld PDA

Part No.:HSD015GPF2-900002-PX
Size:1.45″ inch
Resolution:360x360
Panel Interface:SPI
Display mode:Transflective

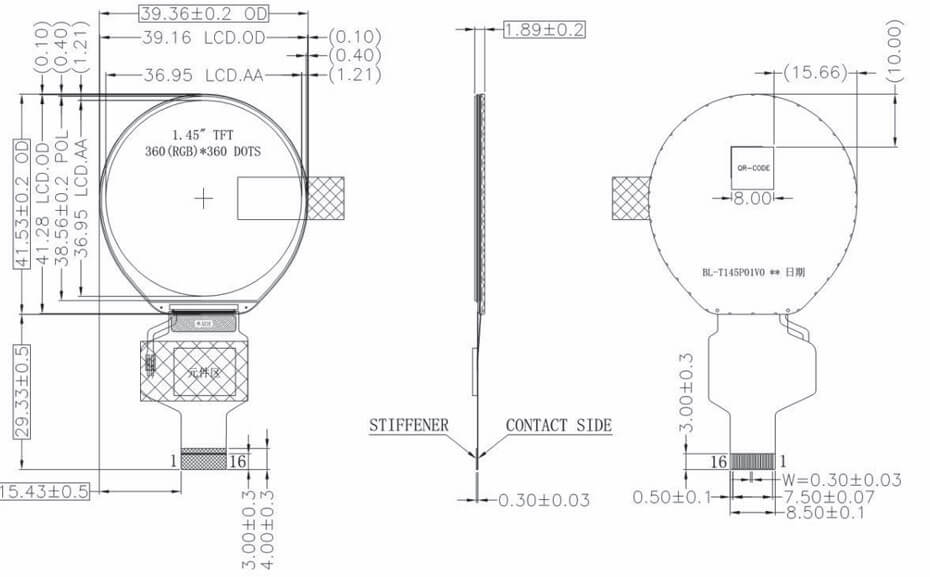

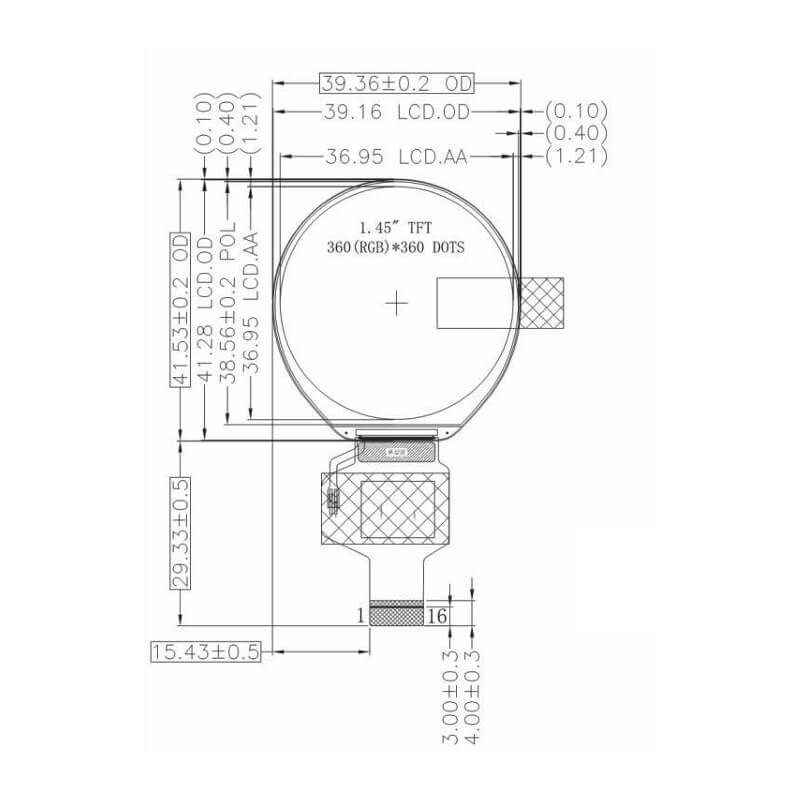

Outline Dimension:39.36x41.53mm
Active Area:36.95x36.95mm
Viewing Angle L/R/U/D:60/60/30/30 (Typ.)
Brightness（cd/m2）:14(Min.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.45 Inch Transflective LCD Display Overview
The HSD015GPF2-900002-PX is a 1.45-inch transflective circular IPS LCD display for handheld PDAs, featuring a 360×360 resolution and SPI interface. It has an active area of 36.95×36.95 mm and overall dimensions of 39.36×41.53 mm. The display provides a minimum brightness of 14 cd/m², typical viewing angles of 60°/60°/30°/30° (L/R/U/D), operates between –20–70 °C, can be stored from –30–80 °C, and does not support touch functionality.
