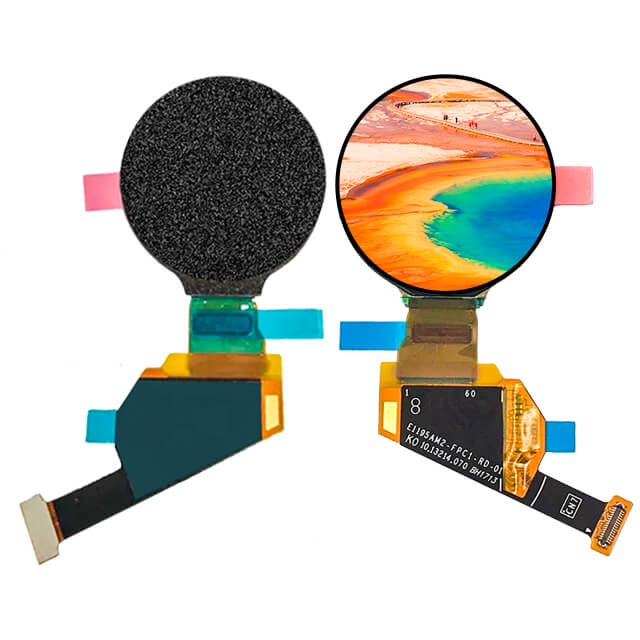

1.2 inch round amoled lcd display panel 1.2 inch micro oled mipi 350nits wearable display

Product size

1.2-inch

Type

OLED ,   AM-OLED

Pixel Format

390(RGB)×390, 325PPI

Configuration

RGB Vertical Stripe

Active Area

30.42 × 30.42 (H×V)

Outline Dim.

33.22 × 34.72 × 0.75 (H×V×D)

Luminance

350 cd/m² (Typ.)

Contrast Ratio

10000 : 1 (Typ.) (TM)

View Direction

Symmetry

Response Time

2 (Typ.)(Tr+Tf) ms

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Operating Mode

-

Support Color

16.7M   105% NTSC

Light Source

self

Weight

-

Designed For

Wearable Round Display

Frequency

60Hz

Touch Panel

Without

Driver IC list

Built-in COF RM67162

Interface Type

MIPI (1 data lane) , 24 pins Connector

Power Supply

1.8/2.8/4.6/-2.4V (Typ.)(VDDIO/VCI/ELVDD/ELVSS)

Environment

Storage Temp.: -30 ~ 70 °C    Operating Temp.: -20 ~ 60 °C
