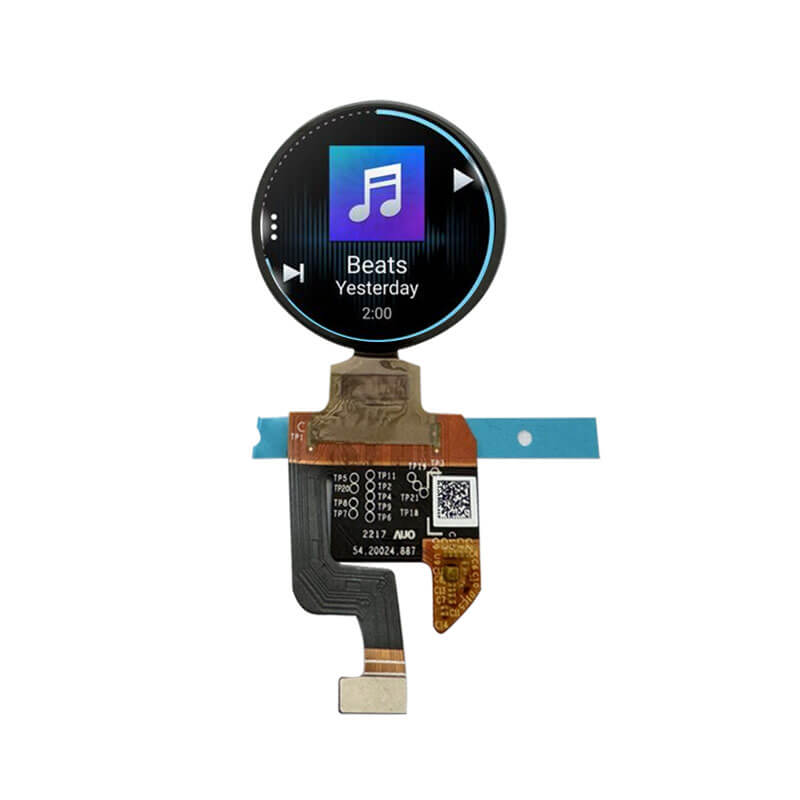

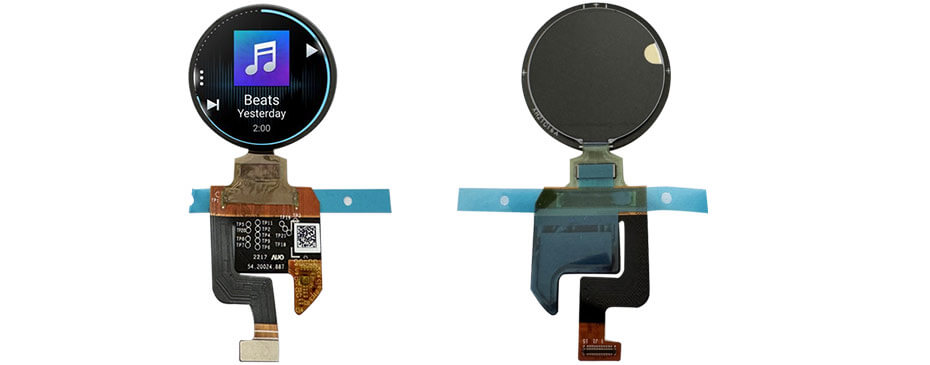

U128BLA03.0 1.28 Inch OLCD Display 416×416 MIPI Circular AMOLED Display With In-Cell Touch

1.28 Inch AMOLED Display Overview
U128BLA03.0 is a 1.28 inch diagonal AM-OLED display screen product from AUO, it self emiting, touchscreen In-Cell Touch. U128BLA03.0 supports display 416(RGB)×416 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 325 PPI. As for mechanical detail, it features active area of 32.45(W)×32.45(H) mm, outline size of 38.2(W)×79.4(H)×2.1(D) mm. U128BLA03.0 can provides 350 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . U128BLA03.0 utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDIO/VCI). It's typical vertical frame rate (Fv) is 45Hz.
