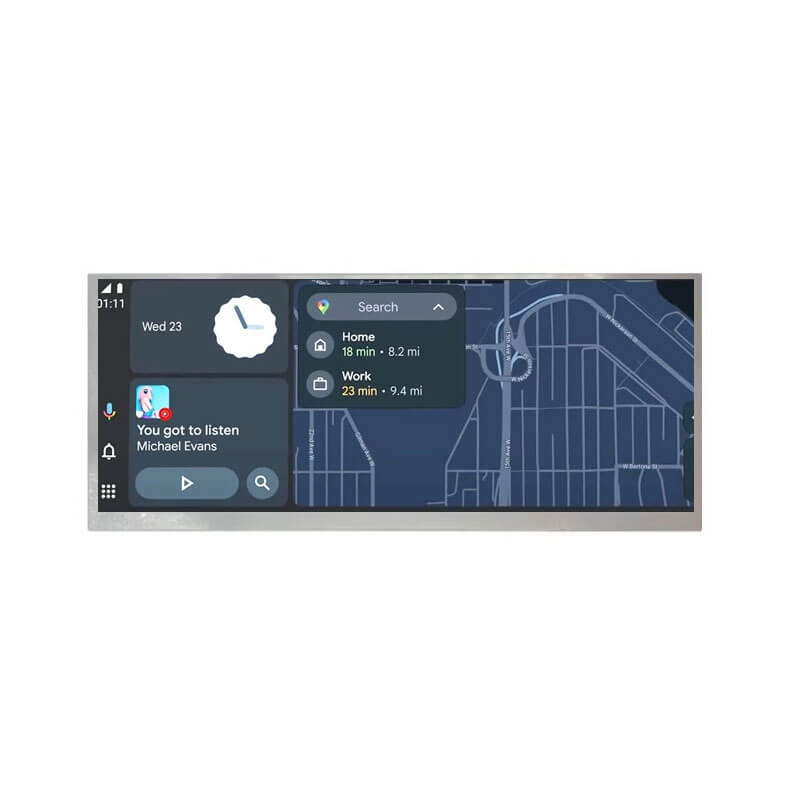

12.3 Inch Bar Display 1920x720 LVDS High Brightness 900 nits LCD Panel With LVDS to HDMI For Car Navigation

12.3 Inch 1920x720 Display Overview

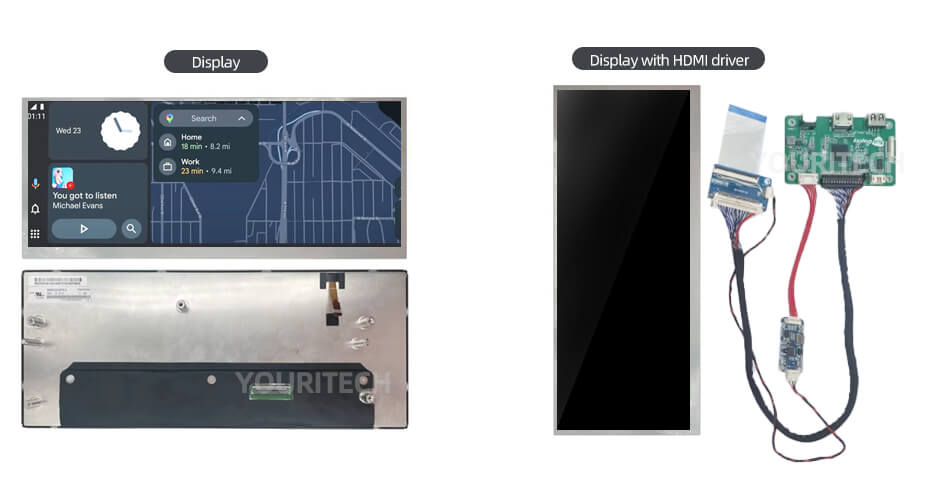

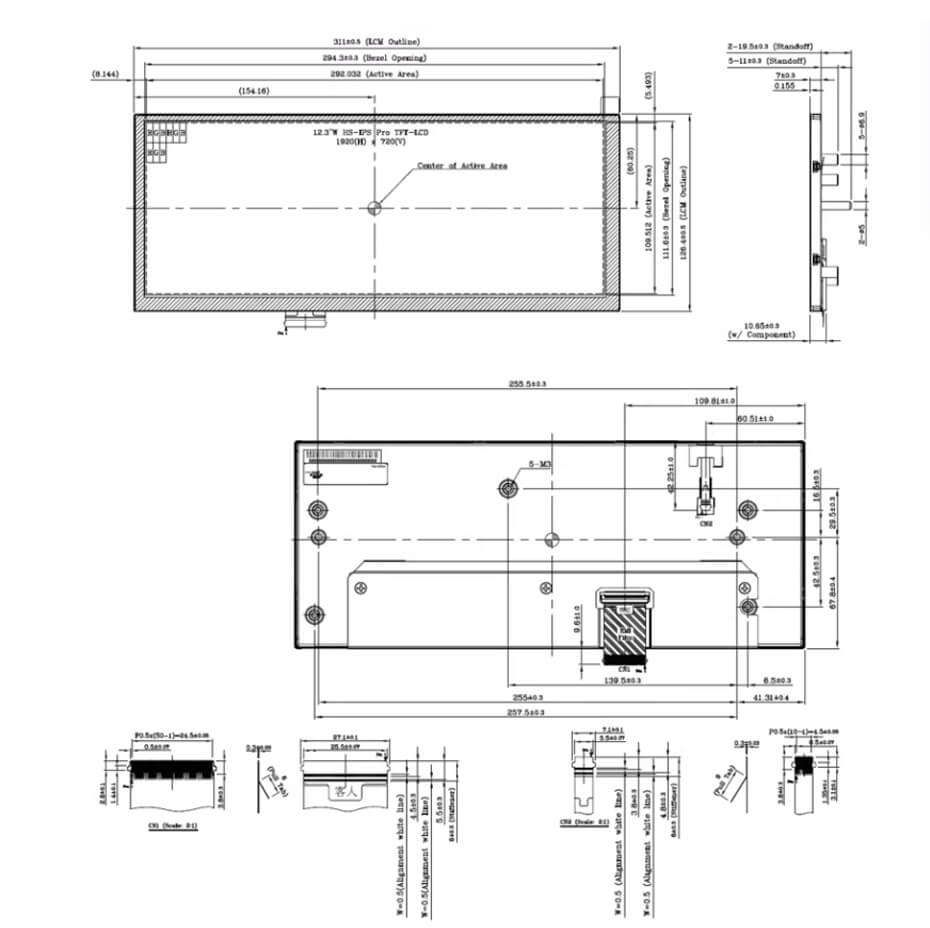

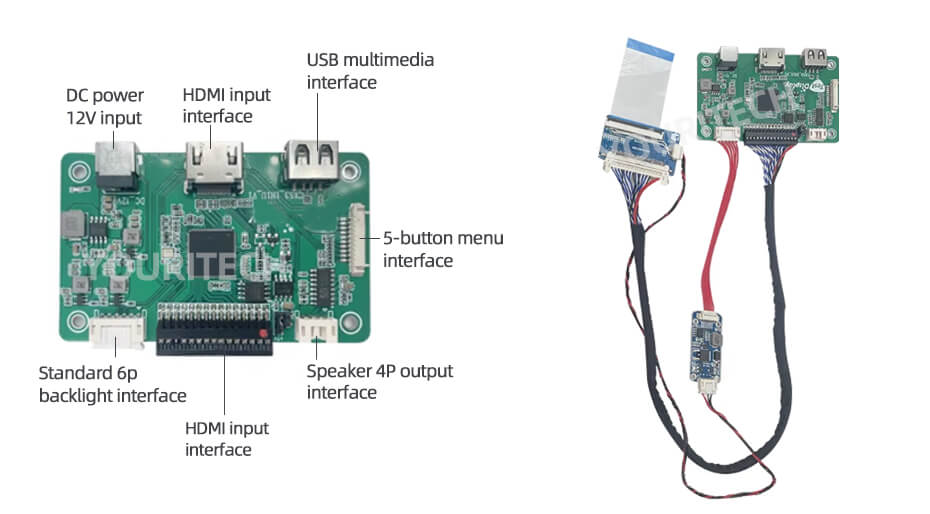

ET123BA02-HDMI is a 12.3-inch diagonal TFT-LCD display panel for automotive applications, featuring a resolution of 1920×720 and an IPS Pro, Normally Black mode with wide viewing angles of 85/85/85/85 (L/R/U/D). It adopts an LVDS interface (2 ch, 8-bit) with an integrated LVDS-to-HDMI solution, and offers an active area of 292.032(W) × 109.512(H) mm within an outline size of 311(W) × 126.4(H) mm. With a typical brightness of 900 cd/m², it ensures clear visibility in bright conditions, and operates reliably within a temperature range of -30°C to 85°C (storage: -40°C to 95°C). Touch function is not included.
12.3 Inch 1920x720 Display Features
Model：ET123BA02-HDMI
Resolution:1920(RGB)x720
Brightness:900 cd/m² (Typ.)
Viewing Angle:85/85/85/85 (Typ.)
Contrast Ratio:1500:1 (Typ.)
Interface:LVDS (2 ch, 8-bit)

Display Module Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.

Display Applications
