1.3 Inch AMOLED Display Overview

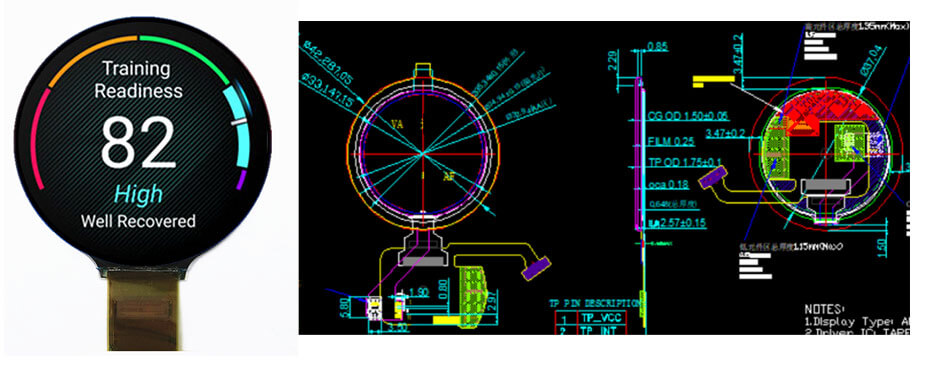

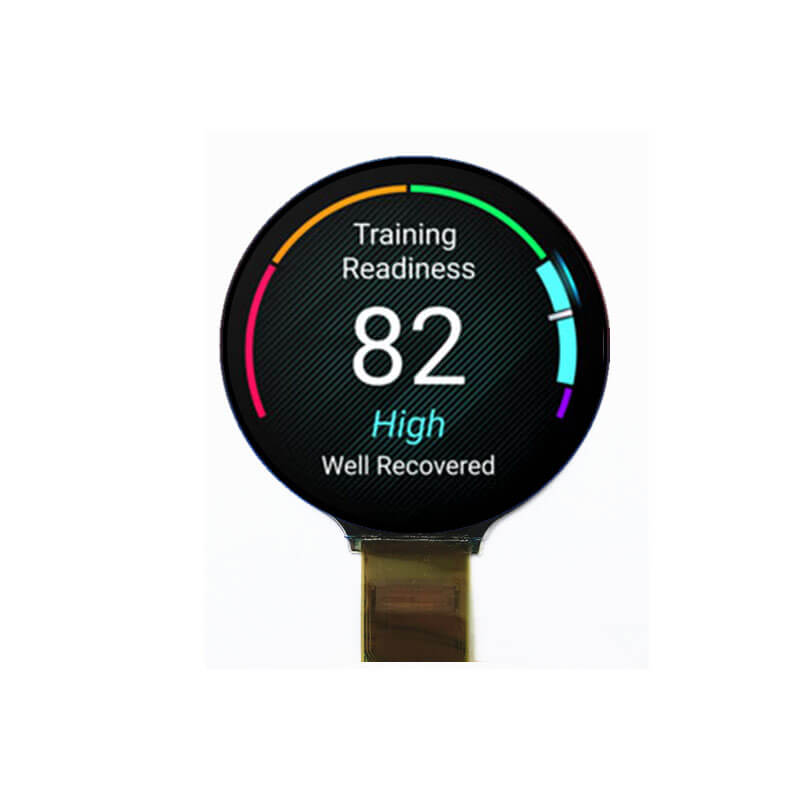

ET013AM01-J is a 1.3 inch diagonal circular AMOLED display screen product, featuring self-emissive technology. ET013AM01-J supports a resolution of 360×360 with a 1:1 aspect ratio (W:H) and offers viewing angles of 80/80/80/80 (L/R/U/D). It features an active area of 32.94(W) × 32.94(H) mm and an outline dimension of 42.28(W) × 42.28(H) mm, and adopts an SPI interface for signal transmission. The display provides a brightness of 350 nits and operates within a temperature range of -20°C to 70°C (storage: -40°C to 80°C). Designed without a touch function, ET013AM01-J is suitable for compact, high-quality circular display applications.
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
