0.95 Inch AMOLED Display Overview

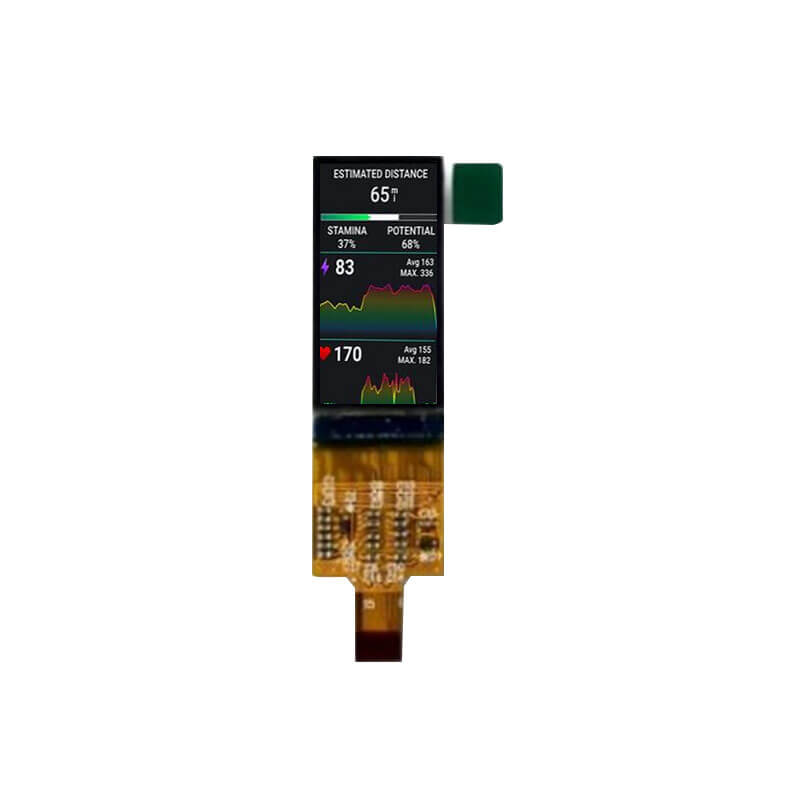

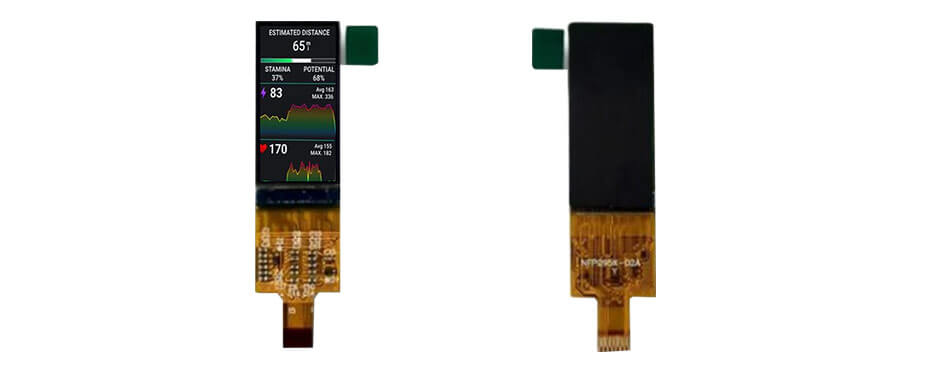

ET095XVT-01 is a 0.95 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET095XVT-01 supports a resolution of 120×240 with an approximate 1:2 aspect ratio (W:H) and offers viewing angles of 85/85/85/85 (L/R/U/D). It features an active area of 10.8(W) × 21.6(H) mm and an outline dimension of 12.8(W) × 27.35(H) mm, and adopts an SPI interface for signal transmission. The display provides a brightness of 450 nits and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). Designed without a touch function, ET095XVT-01 is suitable for compact, high-brightness display applications.
More 0.95 Inch AMOLED Displays For Reference

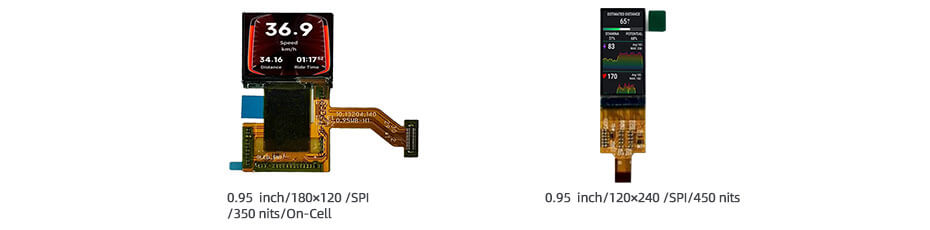

E0954AK1.A (180×120, SPI, IPS, 350nits, -20~70°C, 22.23×18.32mm, On-Cell Touch)
ET095XVT-01 (120×240, SPI, IPS, 450nits, -20~70°C, 12.8×27.35mm)
