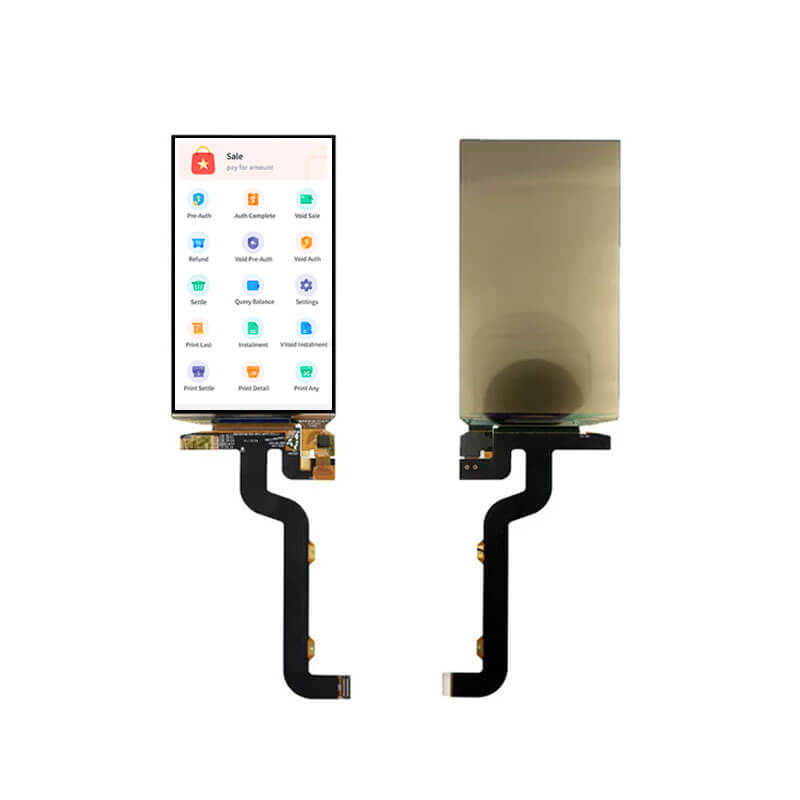

5.5 Inch AMOLED Display 1920x1080 MIPI Capacitive Touch Screen With Controller Board For Raspberry Pi

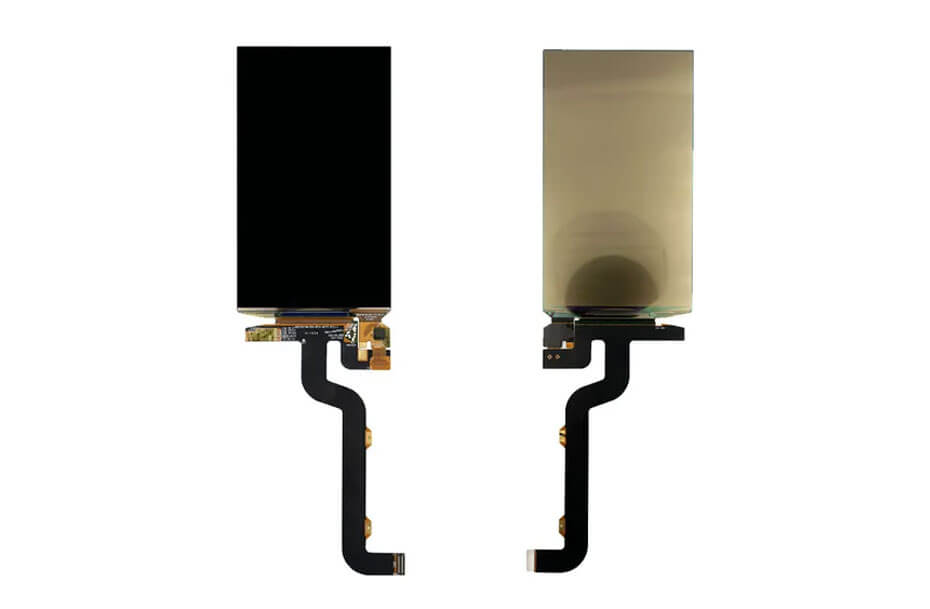

5.5 Inch 1920x1080 AMOLED Display Overview
5.5 Inch AMOLED Display 1920x1080 MIPI Capacitive Touch Screen With Controller Board For Raspberry Pi

5.5 Inch AMOLED Display Features
Model:ET055RA01-OT
1)Panel Type: AM-OLED, OLED
2)Active Area: 68.31(W)x121.44(H) mm
3)Brightness:350nits
4)Contrast Ratio: 17000:1
5)Touch:On-Cell Touch 10 ponts capacitive
6) Viewing Angle: 80/80/80/80
7)Size: 5.5 inch
8)Resolution:1920x1080
9)Interface: MIPI (4 data lanes) , 40 pins Connector

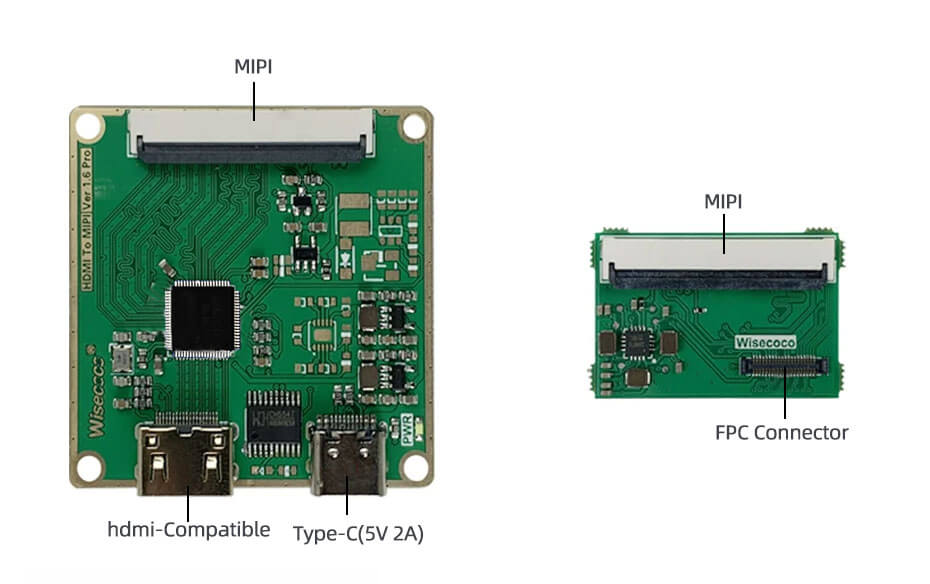

Onboard Resources

Display Module Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.

Display Applications
