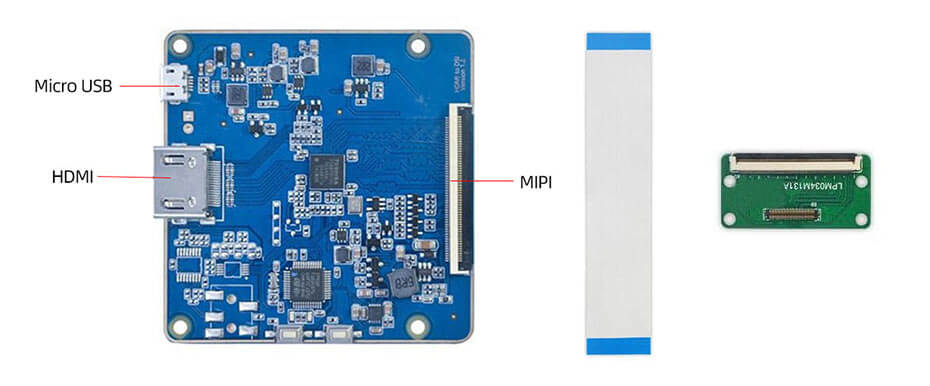

TFTMD089030 JDI 8.9 Inch TFT LCD Display 2560x1600 MIPI LCD Module With Driver Board

8.9 Inch LCD Display Overview

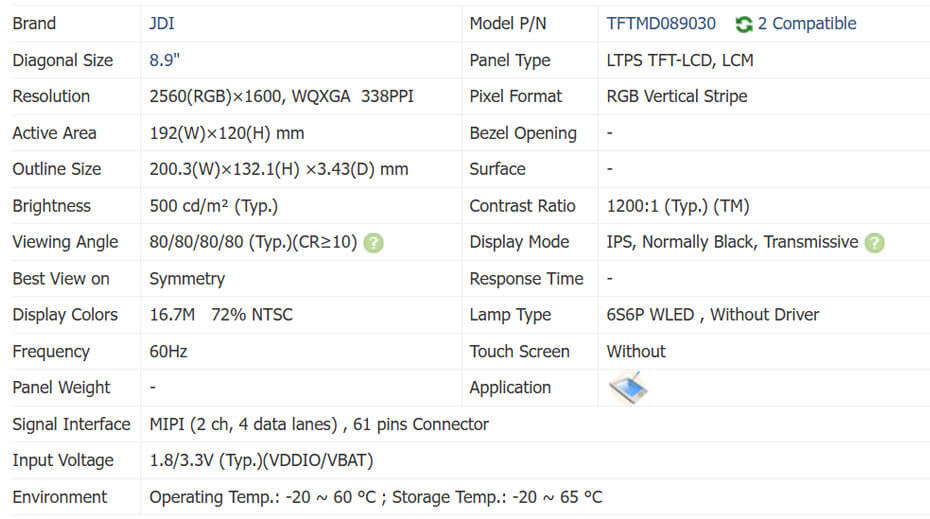

TFTMD089030 is a 8.9 inch diagonal LTPS TFT-LCD display screen product from JDI, with a built-in WLED backlight, without backlight driver, without touch screen. TFTMD089030 supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 338 PPI. As for mechanical detail, it features active area of 192(W)×120(H) mm, outline size of 200.3(W)×132.1(H)×3.43(D) mm. As a IPS, Normally Black, Transmissive LCM product, TFTMD089030 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TFTMD089030 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 61 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDIO/VBAT). It's typical vertical frame rate (Fv) is 60Hz.

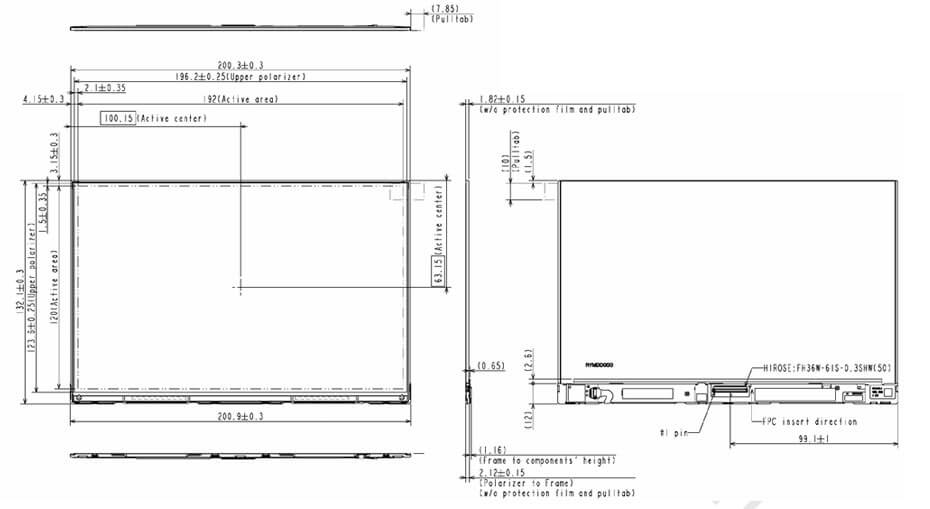

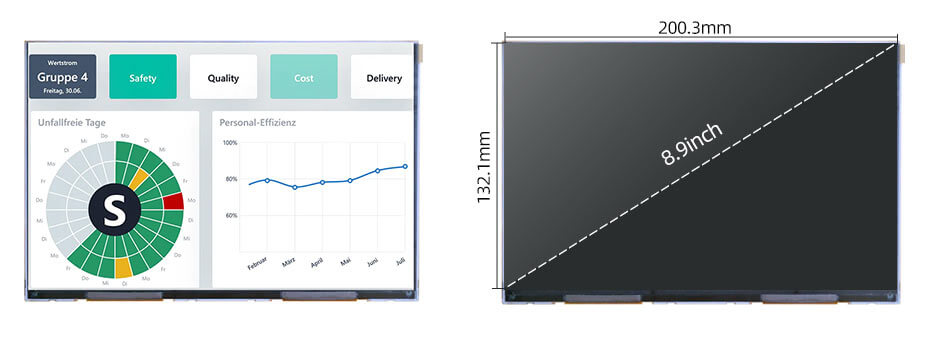

8.9 Inch LCD Display Drawing
