2.4 Inch High Brightness LCD Display Overview

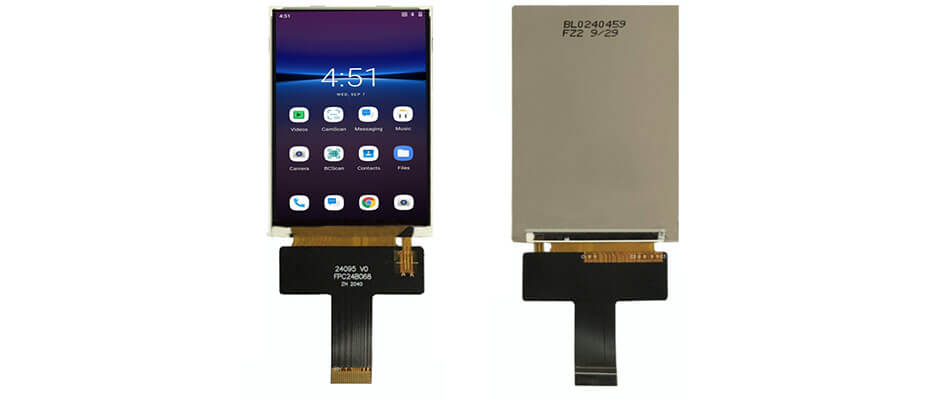

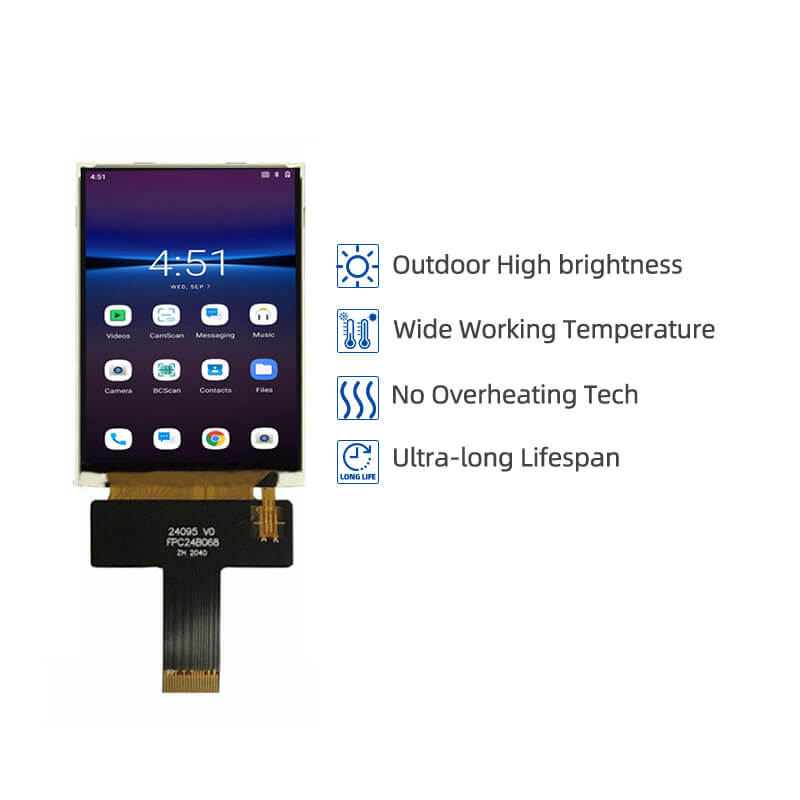

ET024VG30-K is a 2.4-inch diagonal high-brightness IPS TFT LCD display designed for handheld PDAs. It features a 480×640 resolution with MIPI interface and transmissive display mode. The active area measures 36.72(W)×48.96(H) mm, with an outline size of 42.92×60.26 mm. ET024VG30-K provides a typical brightness of 800 cd/m², viewing angles of 80° in all directions (L/R/U/D), and operates between –30 °C and 80 °C, with storage from –30 °C to 80 °C. Touch functionality is not supported.
More 2.4 Inch High Brightness LCD Display For Reference
ET024VG10-T (240x320, CPU/RGB/SPI ,1500nits, -20~70°C, 42.92x60.26mm)
ET024HV30-K (320x480, MIPI ,750nits, -20~70°C, 39.52x60.68mm)
ET024HV30-KT (320x480, MIPI ,700nits, -20~70°C, 44.52x69.88mm, CTP)
ET024HV20-K (320x480, TTL, 700nits, -20~70°C, 39.52x60.68mm)
ET024HV20-KT (320x480, TTL ,700nits, -20~70°C, 44.52x69.88mm,CTP)
ET024VG30-K (480x640, MIPI, 800nits, -30~80°C, 42.92x60.26mm)
Outdoor High Brightness Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
