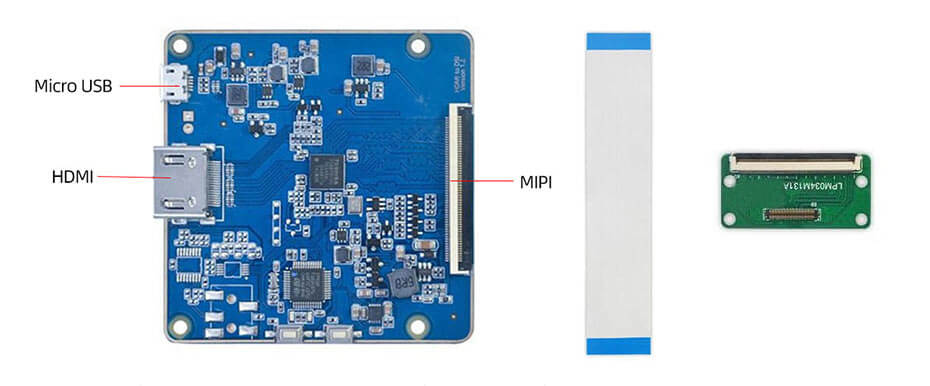

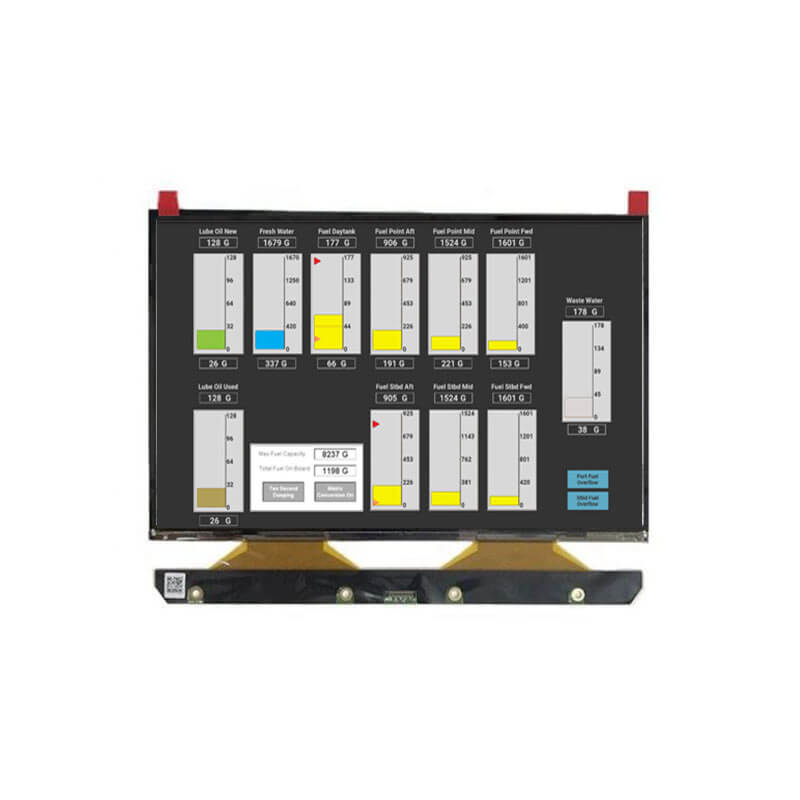

TM089CFSP01 Tianma 8.9 Inch TFT LCD Display 3840x2400 MIPI LCD Module With Driver Board For for 3D printer

8.9 Inch LCD Display Overview

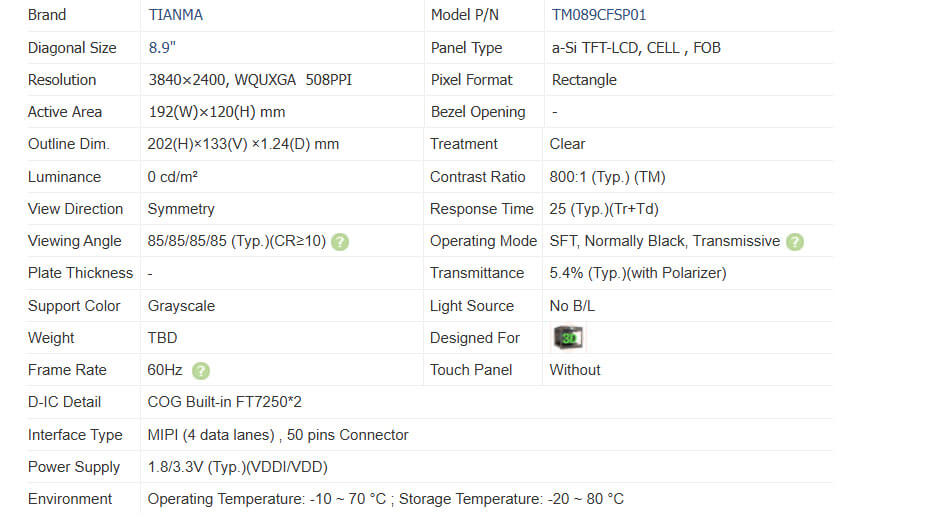

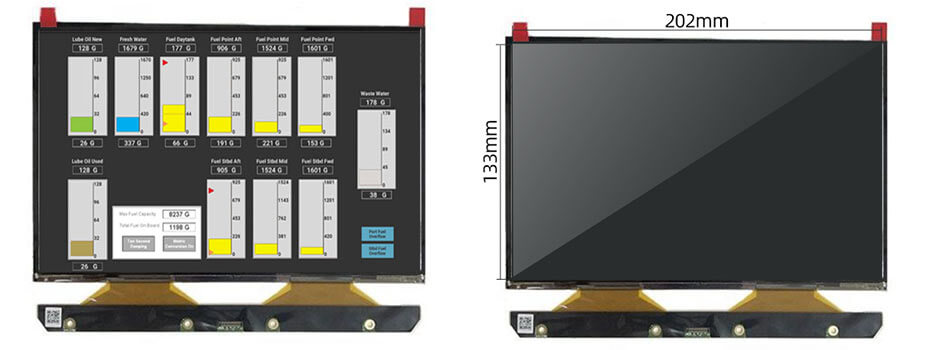

TM089CFSP01 supports display 3840×2400 (WQUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in Rectangle, it's pixel density is 508 PPI. As for mechanical detail, it features active area of 192(W)×120(H) mm, outline size of 202(W)×133(H)×1.24(D) mm, with surface treament of Clear, net weight of TBD. As a SFT, Normally Black, Transmissive CELL product, TM089CFSP01 can provides 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product have no backlight. TM089CFSP01 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDI/VDD). It's typical vertical frame rate (Fv) is 60Hz.

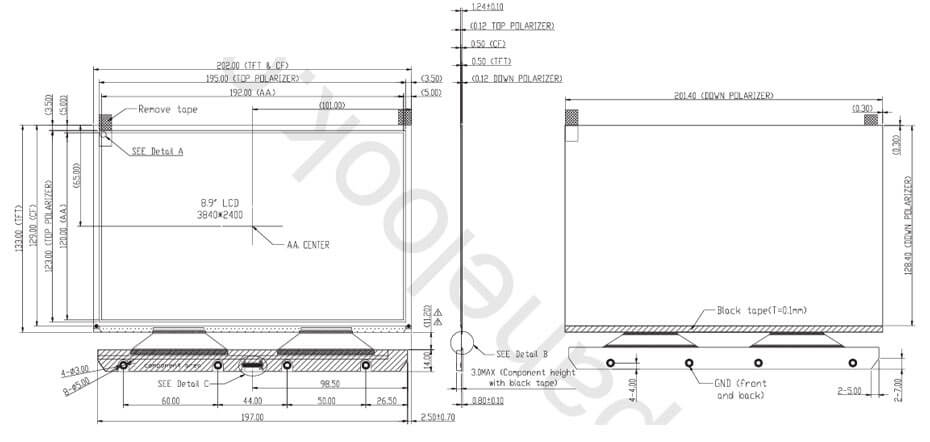

8.9 Inch LCD Display Drawing
