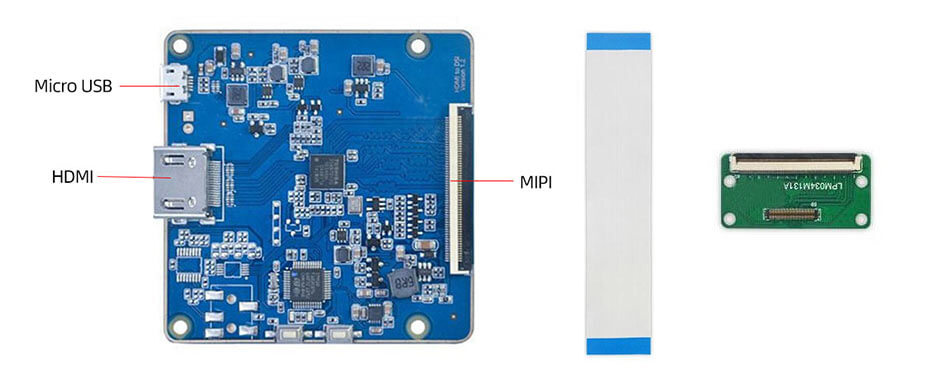

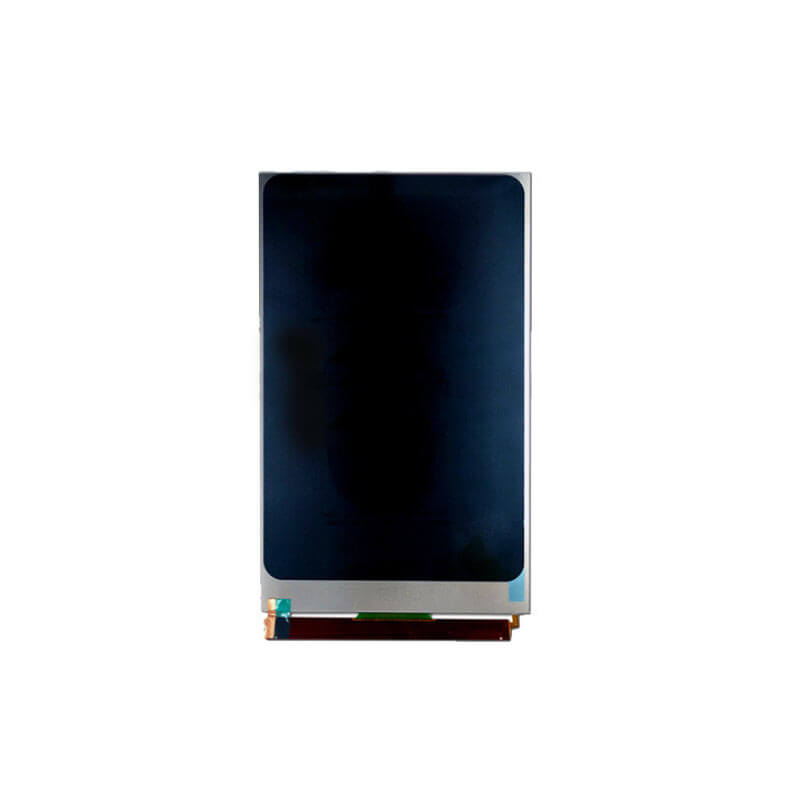

TFT08915362048 JDI 8.9 Inch TFT LCD Display 1536x2048 MIPI LCD Module With Driver Board

Part No.:TFT08915362048
Size:8.9″ inch
Resolution:1536x2048
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:140.84x190.74x2.15mm

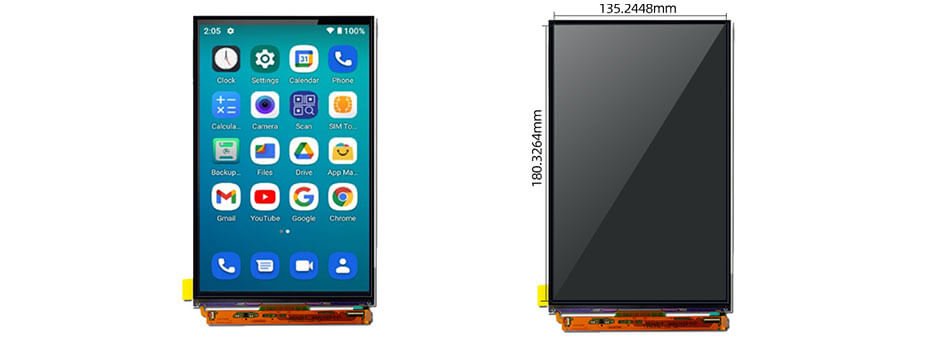

Active Area:135.2448x180.3264mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:/
Operation / Storage Temp:-20~60°C / -30~70°C
Touch:no

8.9 Inch LCD Display Overview
TFT08915362048 is an 8.9-inch TFT LCD display featuring a high resolution of 1536×2048 and a transmissive display mode. It adopts a MIPI interface and provides an active area of 135.2448 × 180.3264 mm within a slim outline dimension of 140.84 × 190.74 × 2.15 mm. The display offers wide 80° viewing angles in all directions, supports stable operation from −20 to 60 °C (storage −30 to 70 °C), is supplied with a driver board, and does not support touch functionality.
Size: 8.9 inch
Resolution:1536x2048
Active Area: 135.2448x180.3264mm
Outline dimension:140.8448x190.7464x2.151mm
Pixel pitch: 0.02935x0.08805mm
Color Depth: 16M
Display Mode: Normally black Transmissive
Interface: MIPI 51PIN
View Angle: 80/80/80/80
