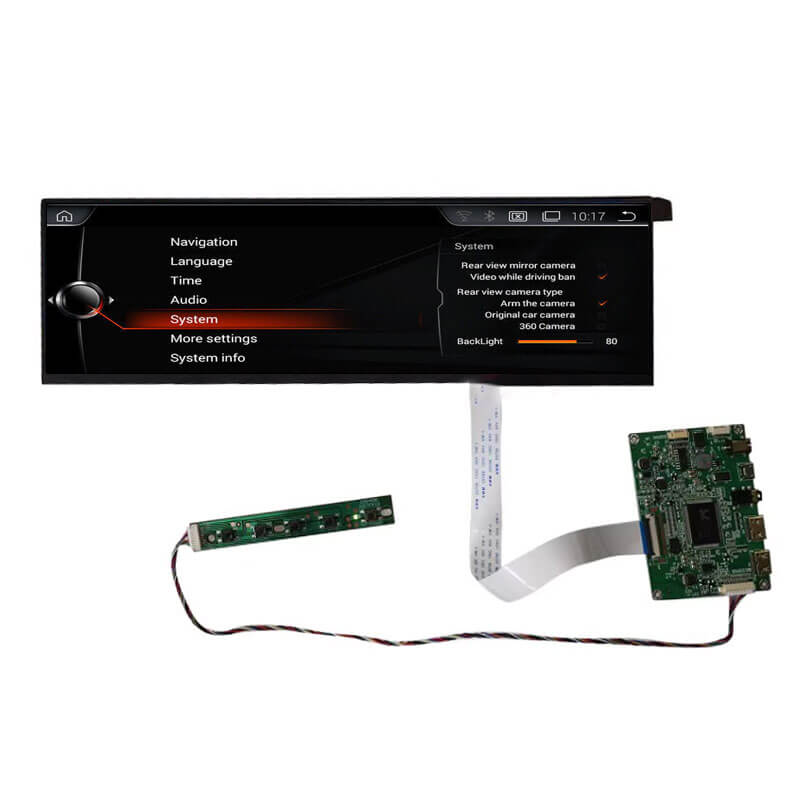

12.6 Inch Bar Display HDMI 1920x515 Full Viewing Angle Advertising Display

12.6 Inch 1920x515 Display Overview
12.6 Inch Bar Display HDMI 1920x515 Full Viewing Angle Advertising Display.

12.6 Inch 1920x515 Display Features
Model：ET126BA01-HDMI
1) Number of Pixel:1920(RGB)x515
2) Contrast Ratio:1200:1 (Typ.)
3) Viewing Angle:85/85/85/85 (Typ.)
4) Signal Interface:eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
5) Luminance:250 cd/m² (Typ.)

Display Module Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.

Display Applications
