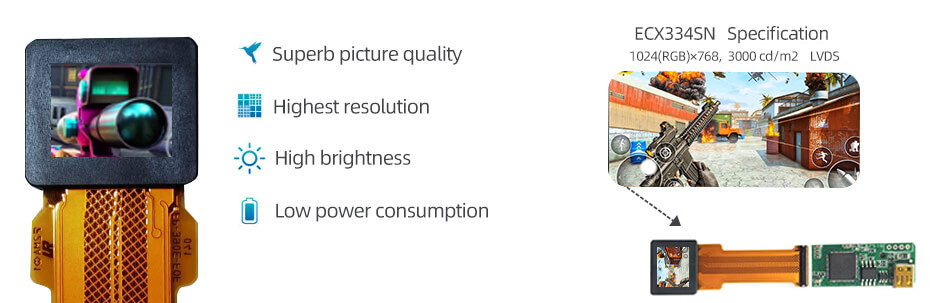

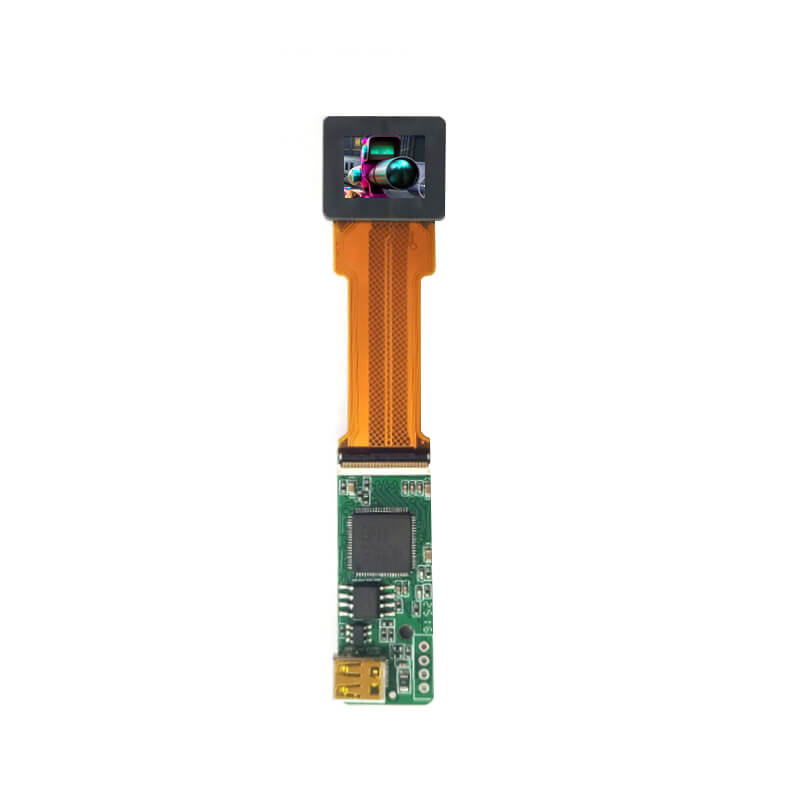

ECX334SN 0.39 Inch Micro OLED Display 1024×768 LVDS High Brightness 3000nits OLED Display With HDMI Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ECX334SN is a 0.39 inch diagonal Si-OLED display screen product from Sony, it self emiting, without touch screen. ECX334SN supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Delta, according to calculation of Panelook it's pixel density is 3186 PPI. It features active area of 8.143(W)×6.146(H) mm, outline size of 12.86(W)×11.58(H)×1.68(D) mm. ECX334SN can provides 3000 cd/m² display brightness 10000:1 transimissive contrast ratio . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 97% (sRGB). This product emiting itself . ECX334SN utilizes LVDS as it's signal inputting systerm, which connected by 61 pins FPC with power supply voltage of 1.8/1.8/10.0V (Typ.)(VDD/VDD1IF/VDD2). It's typical vertical frame rate (Fv) is 60Hz.

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
