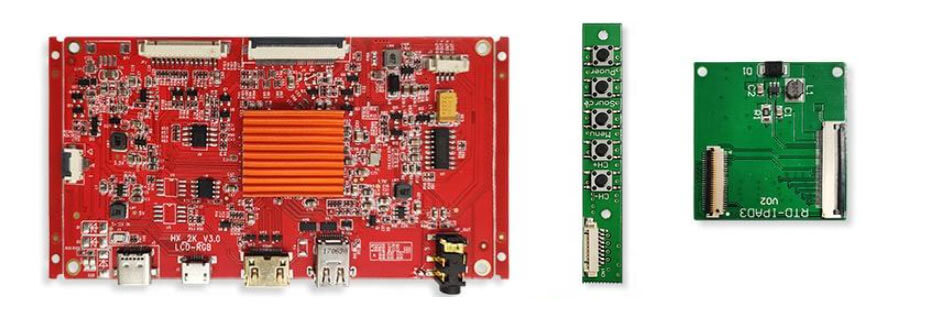

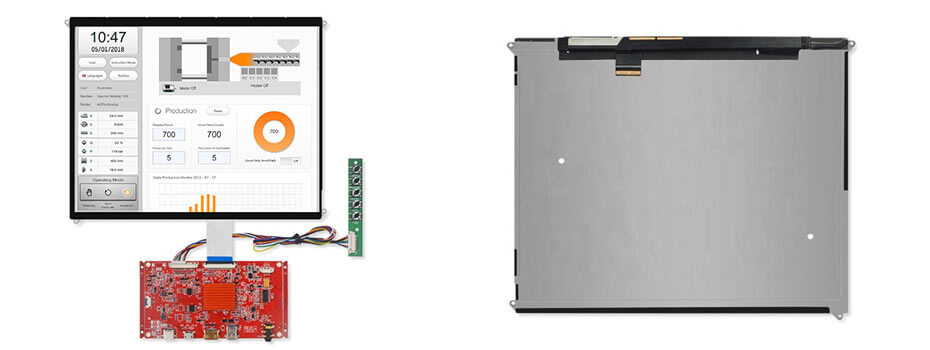

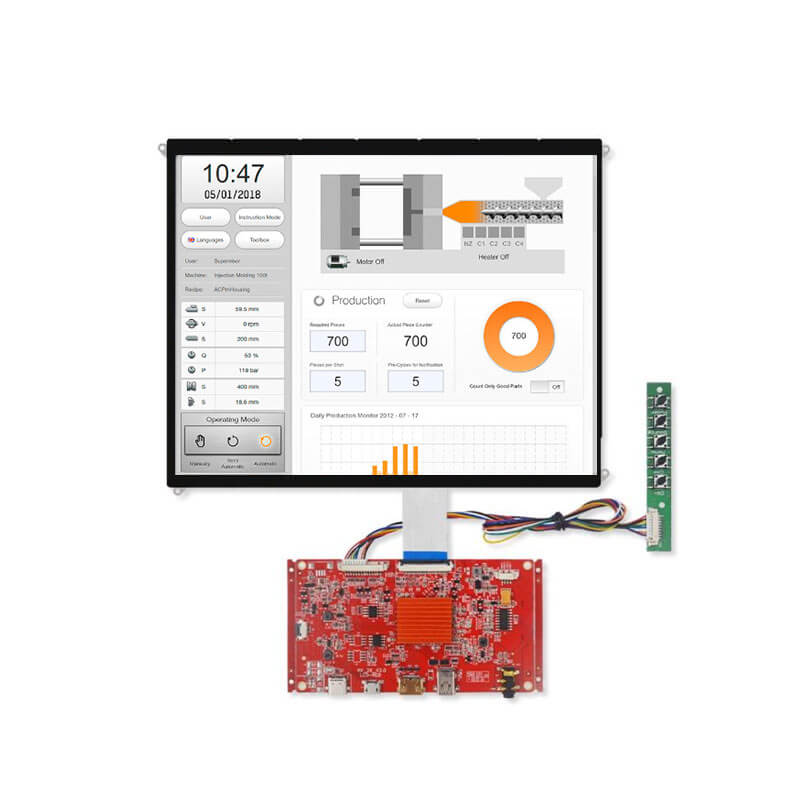

LP097QX1-SPA1 LG 9.7 Inch TFT LCD Display 2048x1536 eDP LCD Module With Driver Board

9.7 Inch LCD Display Overview
 LP097QX1-SPA1 supports display 2048(RGB)×1536 (QXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 264 PPI. As for mechanical detail, it features active area of 196.608(W)×147.456(H) mm, outline size of 208.88(W)×167.12(H)×5.17(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), Antireflection, net weight of 134g (Max.). As a IPS, Normally Black, Transmissive LCM product, LP097QX1-SPA1 can provides 440 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. LP097QX1-SPA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 51 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
