New Original 15.6 Inch 60Hz 3840x2160 Resolution Free Angle with eDP 40 Pins OLED Screen Display For Laptop

  • Part No.:ATNA56WR14-0
  • Size:15.6″ inch
  • Resolution:3840x2160
  • Panel Interface:eDP (4 Lanes)
  • Display mode:/
  • Outline Dimension:348.218(H)x215.662(V)x2.9(D)mm
  • Active Area:344.218(H)x193.622(V)mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):440cd/m²
  • Operation / Storage Temp:-20~70°C / -40~85°C
  • Touch:no

Products Description

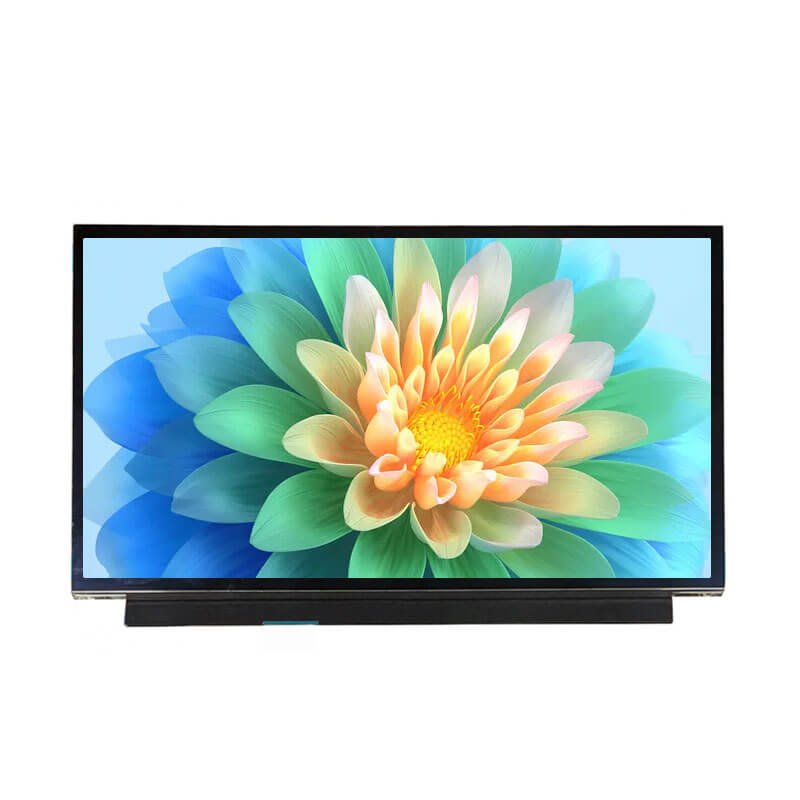

ATNA56WR14-0-15.6inch-TFT-3840x2160-EDP-3

LCD SPECIFICATION
Panel Size 15.6" Panel Type AM-OLED, OLED
Pixel Number 3840(RGB)×2160 [UHD] 283PPI Configuration RGB Vertical Stripe
Active Area(mm) 344.218(H)×193.622(V) mm Outline(mm) 348.218(H)×215.662(V) ×2.9(D) mm
Bezel Area(mm) - Treatment Glare (Haze 0%)
Luminance 440 cd/m² (Typ.) Contrast Ratio 100000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode -
View Direction Symmetry Response Time 1 (Typ.)(Tr+Tf)
Support Color 1.06B 100% DCI-P3 Backlight self
Form Style Slim (PCBA Flat, T≤3.2mm) Used for Laptop
Frame Rate 60Hz Touchscreen Without
Signal Interface eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector
Input Voltage 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 85 °C

ATNA56WR14-0_01ATNA56WR14-0_03ATNA56WR14-0_02
