3 Inch Wide Temperature OLCD Display Overview

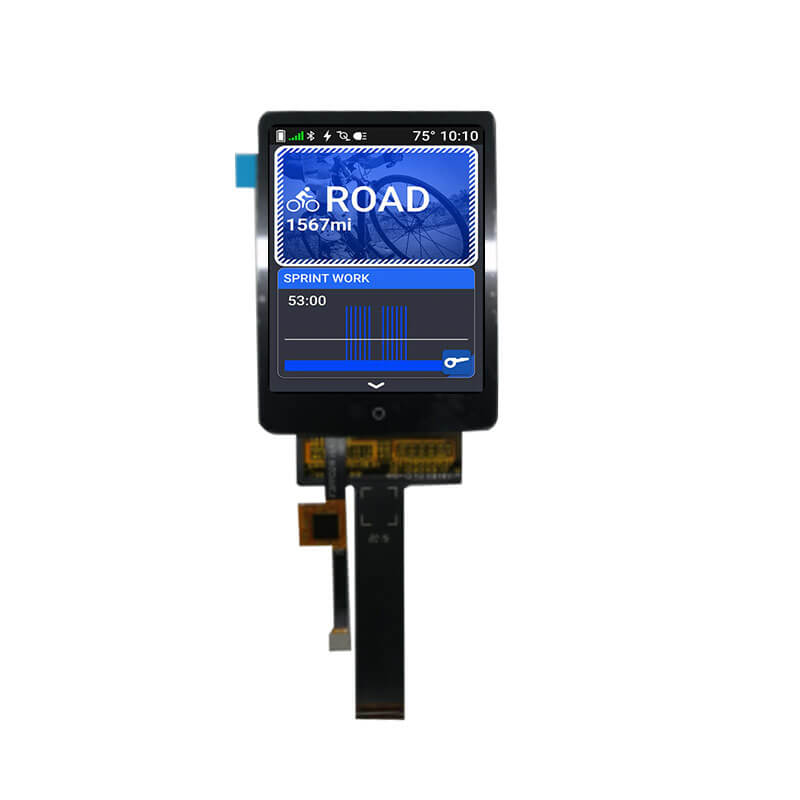

ET030WT01-ZC is a 3-inch diagonal AMOLED display module product, it is self-emitting. ET030WT01-ZC supports a resolution of 1080×1200 with a high pixel density and optimized aspect ratio, delivering vivid and high-contrast image performance. It adopts a MIPI interface for high-speed data transmission, with pixels arranged to ensure excellent display quality. It features an active area of 50.11(W) × 55.68(H) mm and an outline size of 52.91(W) × 62.58(H) mm. ET030WT01-ZC provides a brightness of 300 cd/m² and supports full viewing angles, ensuring superior visibility from all directions. Designed for extreme environments, it operates within a temperature range of -40°C to 85°C and supports storage from -55°C to 125°C, and it does not include a touch function.
More 3 Inch Wide Temperature Displays For Reference
ET030WT01-TS (LCD, 432×432, TTL, IPS, 500nits, -30~85°C, 94×94mm)
ET030WT01-ZC (LCD, 1080×1200, MIPI, IPS, 300nits, -40~85°C, 52.91×62.58mm)
ET030WT01-HGT (LCD, 1080×1200, MIPI, IPS, 300nits, -40~85°C, 62.06×80.06mm, CTP)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
