14.3 Inch Stretched Bar Display 1280x512 IPS LVDS TFT LCD Display

Part No.:ET043BA01-VL
Size:14.3″ inch
Resolution:1280x512
Panel Interface:LVDS (2 ch,8-bit)
Display mode:TN,Transmissive

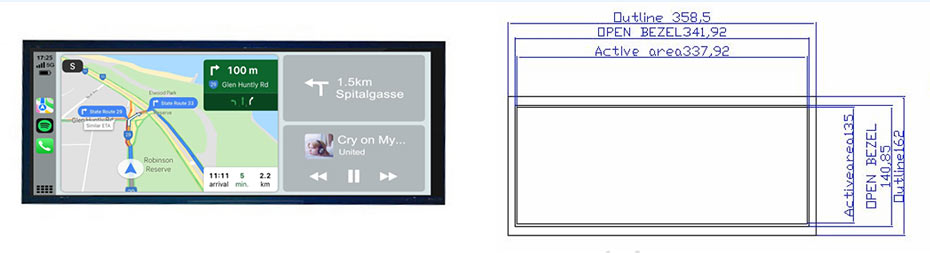

Outline Dimension:358.5x162mm
Active Area:337.92x135mm
Viewing Angle L/R/U/D:85/85/80/80 (Typ.)
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:0~50°C / /
Touch:no

14.3 Inch Stretched Bar Display Overview
14.3 Inch Stretched Bar Display 1280x512 IPS LVDS TFT LCD Display.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
