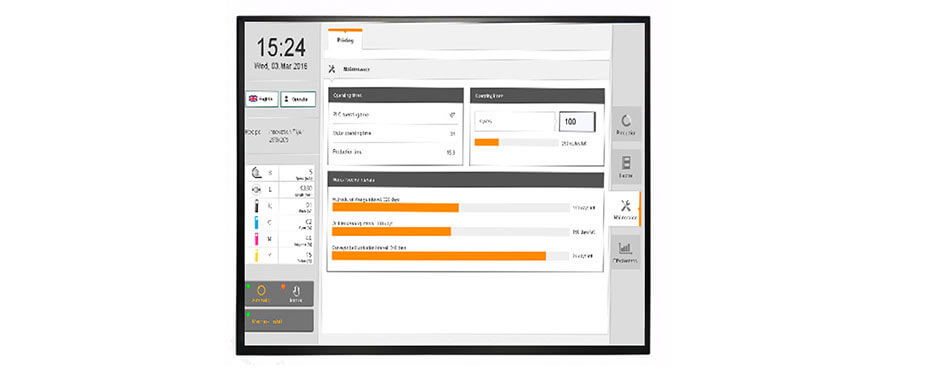

25.6 Inch Square Display IPS 940x940 LVDS 500nits High Brightness TFT LCD Display

Part No.:ET255SQ01-YF
Size:25.6″ inch
Resolution:940x940
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:490x490mm
Active Area:460.8x460.8mm
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

25.6 Inch Square Display Overview
ET255SQ01-YF is a 25.6-inch diagonal square IPS TFT LCD display with a resolution of 940×940, featuring an LVDS interface. The display operates in transmissive mode and has an active area of 460.8(W)×460.8(H) mm, with an outline dimension of 490(W)×490(H) mm. ET255SQ01-YF provides high brightness of 500 cd/m² (Typ.), wide viewing angles of 89° in all directions (L/R/U/D), and supports operation from 0 °C to 50 °C and storage from –20 °C to 60 °C. This model does not include touch functionality.
