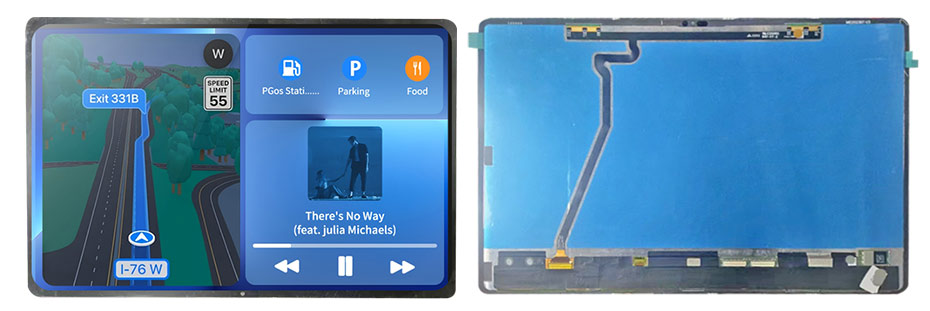

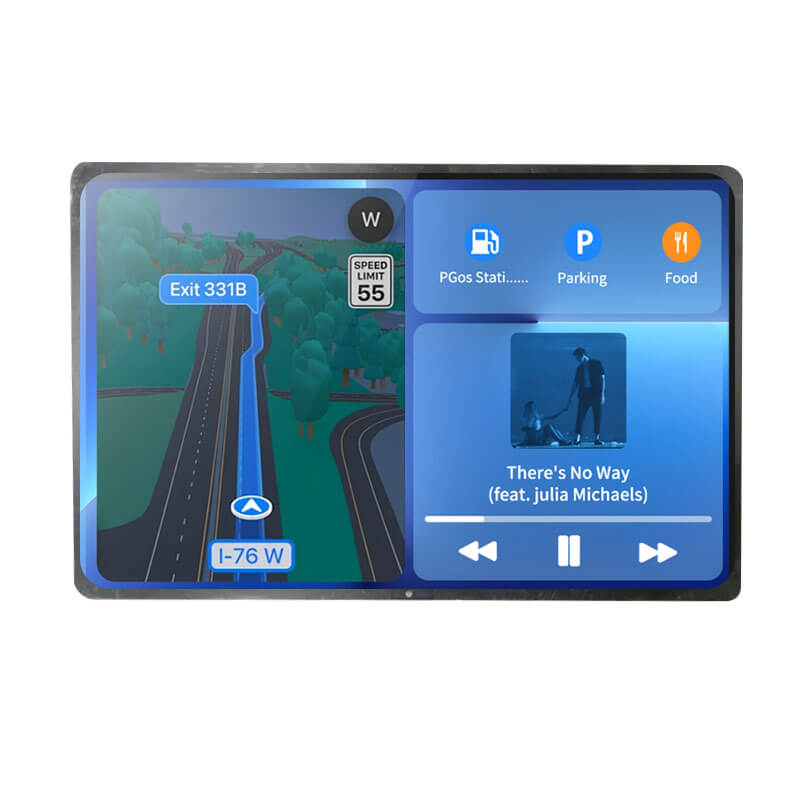

14.5 Inch AMOLED Display Overview
EE50QBC73.A supports display 3000(RGB)×1876 with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 312.3(W)×195.292(H) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating (7H), net weight of 218g (Typ.). EE50QBC73.A can provides 400 cd/m² display brightness 1000000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself and have a working life time of 10K hours. EE50QBC73.A utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 102 pins Connector with power supply voltage of 3.3/7.3/4.6/-3.5V (Typ.)(VCI/AVDD/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 120Hz.
