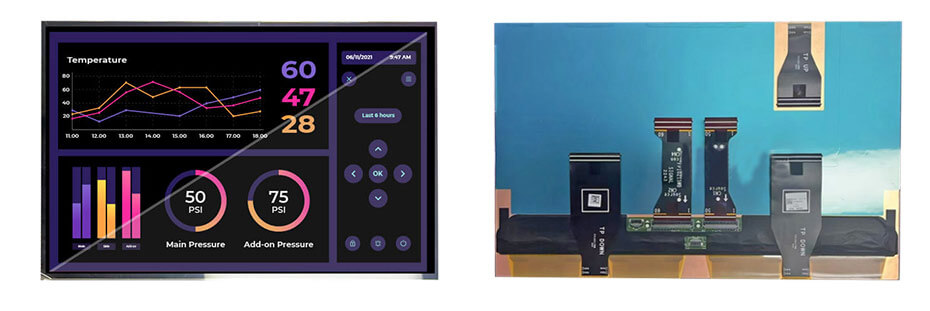

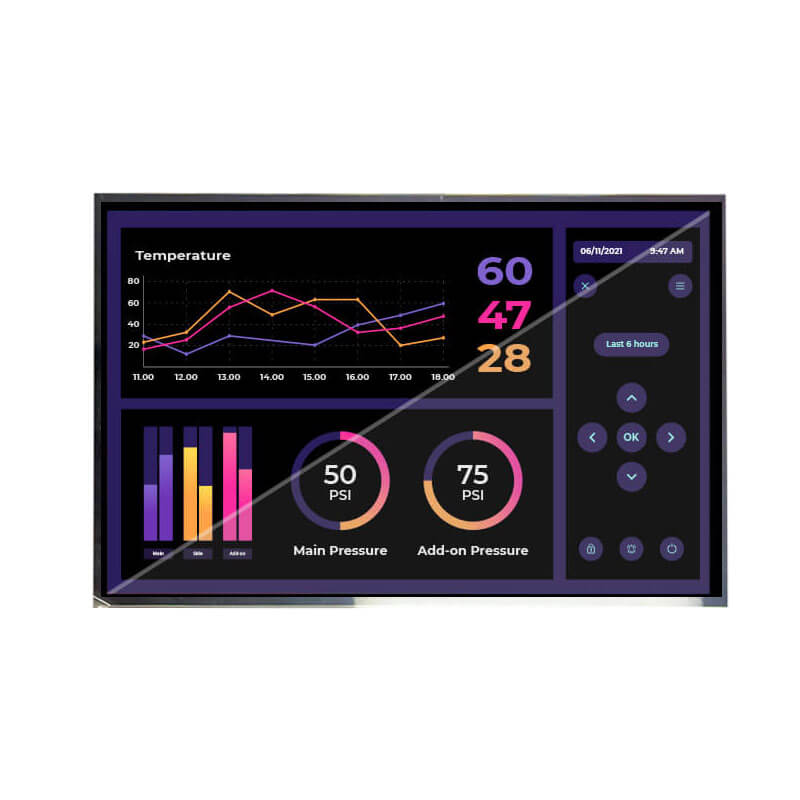

15.1 Inch AMOLED Display Overview
EF10QBP63.A supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 324.096(W)×202.56(H) mm, outline size of 328.896(W)×210.46(H) mm, net weight of TBD. EF10QBP63.A can provides 750 cd/m² display brightness 10000:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 3 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself and have a working life time of 10K hours. EF10QBP63.A utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3/20V (Typ.)(VCC/VDD). It's typical vertical frame rate (Fv) is 60Hz.
