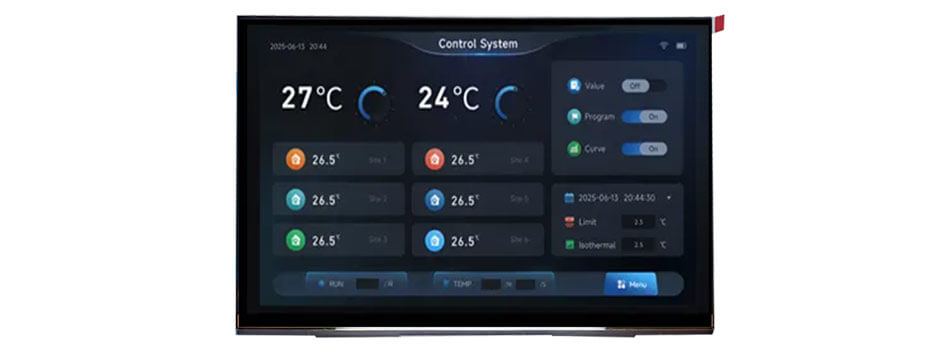

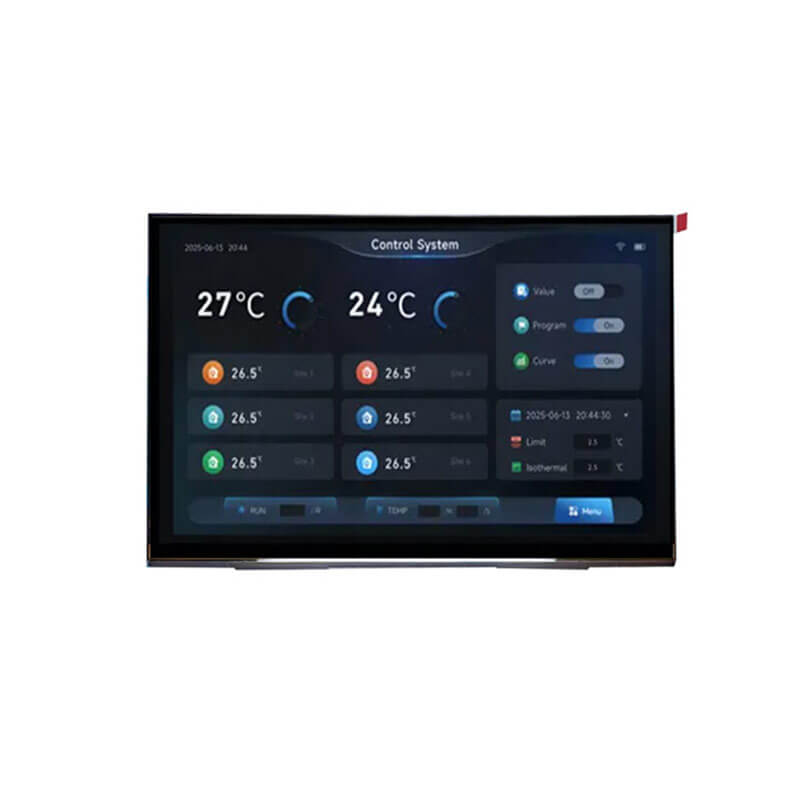

EE0010A61.A 14 Inch OLCD Display 1920×1200 eDP IPS AMOLED Display

14 Inch AMOLED Display Overview
EE0010A61.A supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in Real RGB. It features active area of 301.824(W)×188.64(H) mm, outline size of 305.52(W)×195.44(H)×3.15(D) mm, with surface treament of Glare (Haze 0%), net weight of 150±15g, shape stype of Slim (PCBA Bent, T≤3.0mm). EE0010A61.A can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself and have a working life time of 15K hours. EE0010A61.A utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3/4.6/-3.5V (Typ.)(VDD/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 60Hz.

More 14 Inch AMOLED Displays For Reference
ATNA40YK04-0 (2880×1800, eDP, IPS, 400nits, -40~70°C, 305.02×196.24mm)
EE0010A61.A (1920×1200, eDP, IPS, 400nits, -10~60°C, 305.52×195.44mm)
