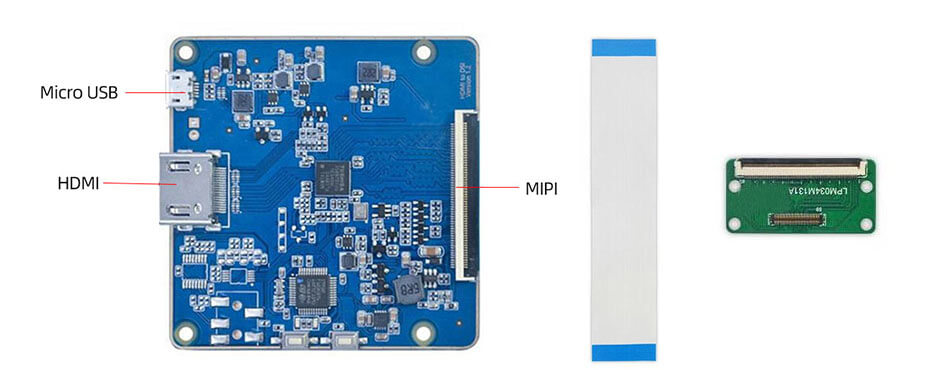

DV190FBM-NB0 BOE 19.1 Inch TFT LCD Display 1920x360 LVDS Stretched Bar Display With Driver Board For Advertising

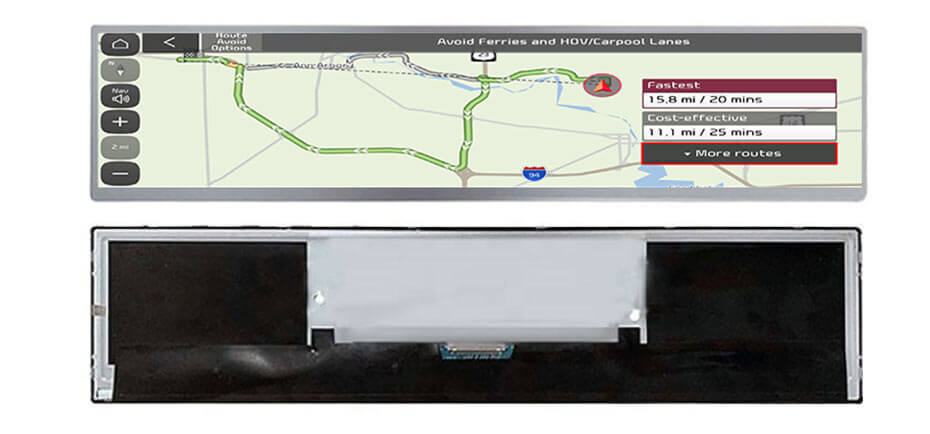

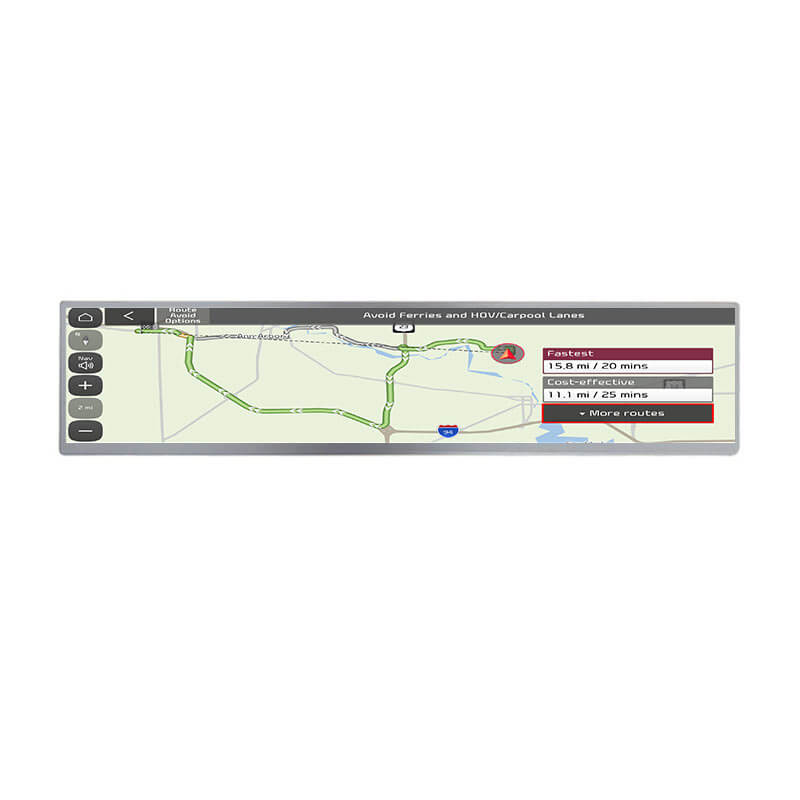

19.1 Inch LCD Display Overview

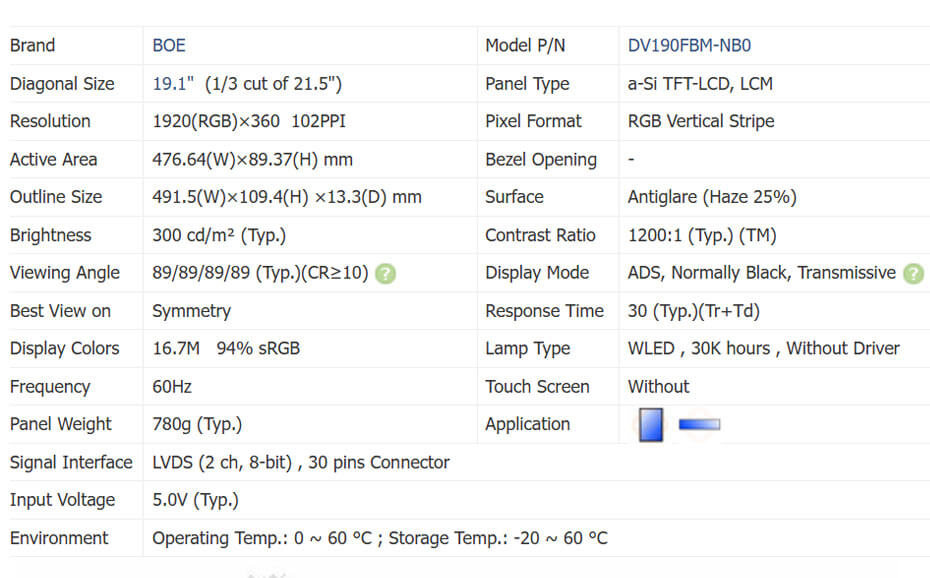

DV190FBM-NB0 is a 19.1 inch diagonal a-Si TFT-LCD display screen product from BOE, with a built-in WLED backlight, without backlight driver, without touch screen. DV190FBM-NB0 supports display 1920(RGB)×360 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×89.37(H) mm, outline size of 491.5(W)×109.4(H)×13.3(D) mm, with surface treament of Antiglare (Haze 25%), net weight of 780g (Typ.). As a ADS, Normally Black, Transmissive LCM product, DV190FBM-NB0 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 94% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, external backlight driver is additionally needed. DV190FBM-NB0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

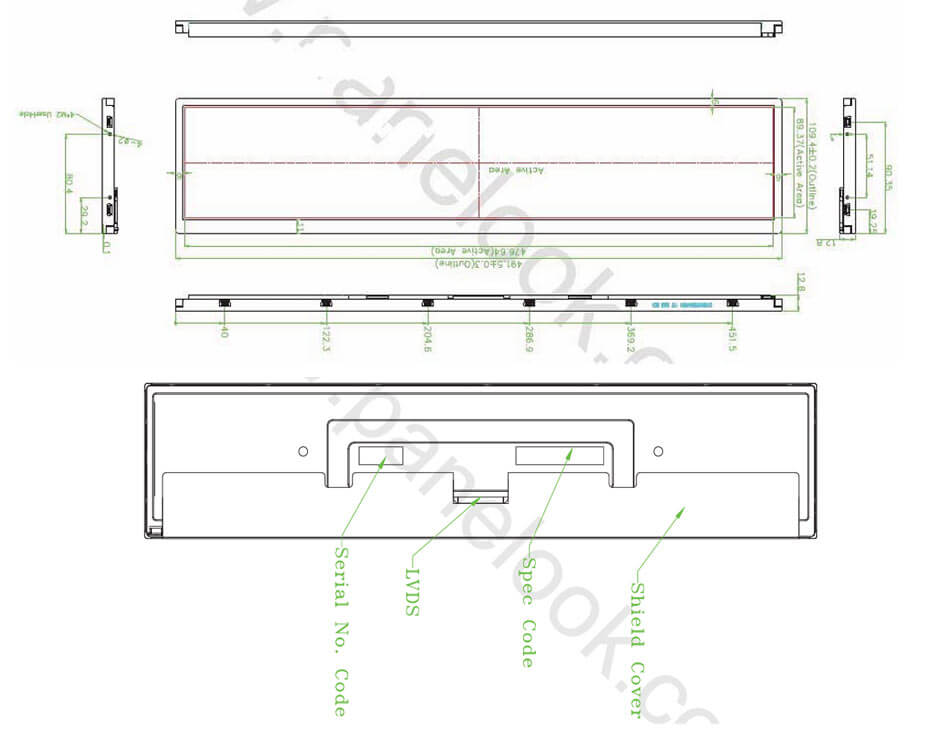

19.1 Inch LCD Display Drawing
