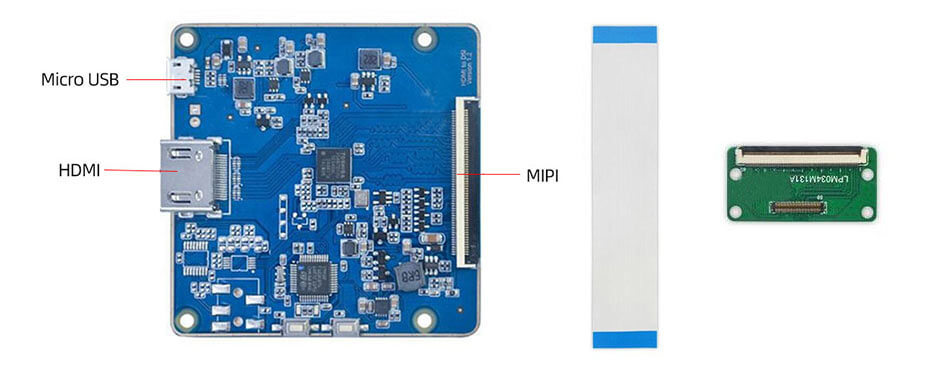

DV185FHM-R00 BOE 18.5 Inch TFT LCD Display 1920x1080 LVDS 1000nits Ultra High Brightness LCD Panel With Driver Board

18.5 Inch LCD Display Overview

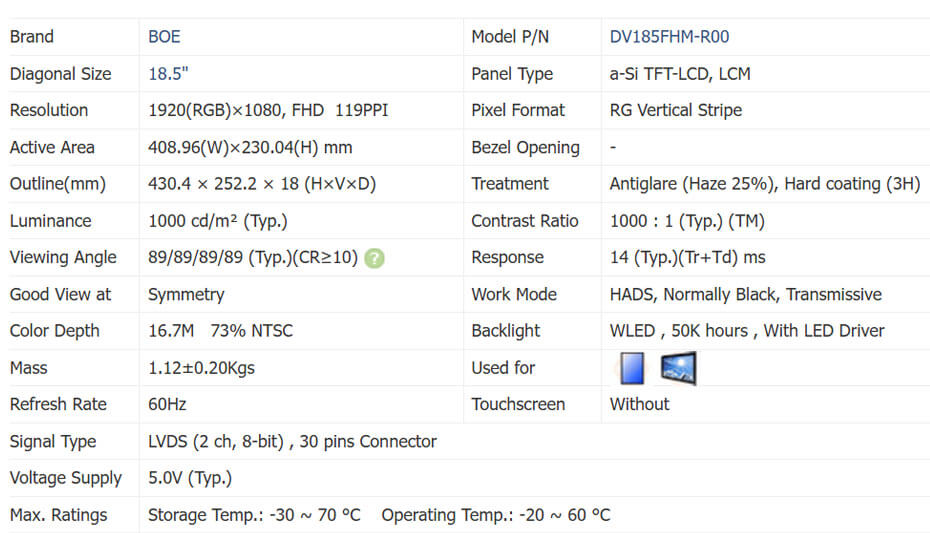

DV185FHM-R00 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RG Vertical Stripe. It features active area of 408.96(W)×230.04(H) mm, outline size of 430.4(W)×252.2(H)×18(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.12±0.20Kgs. As a HADS, Normally Black, Transmissive LCM product, DV185FHM-R00 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, With LED Driver. DV185FHM-R00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

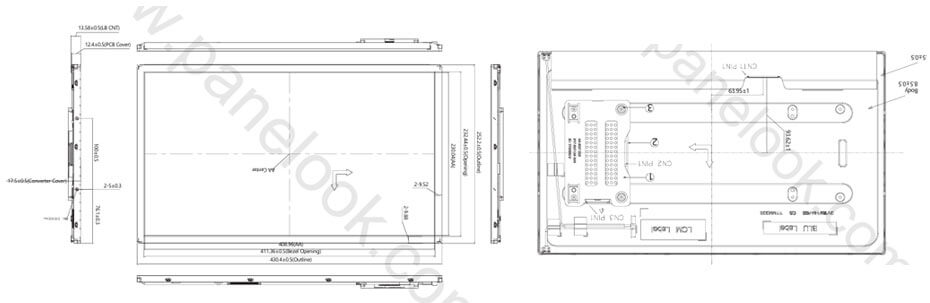

18.5 Inch LCD Display Drawing
