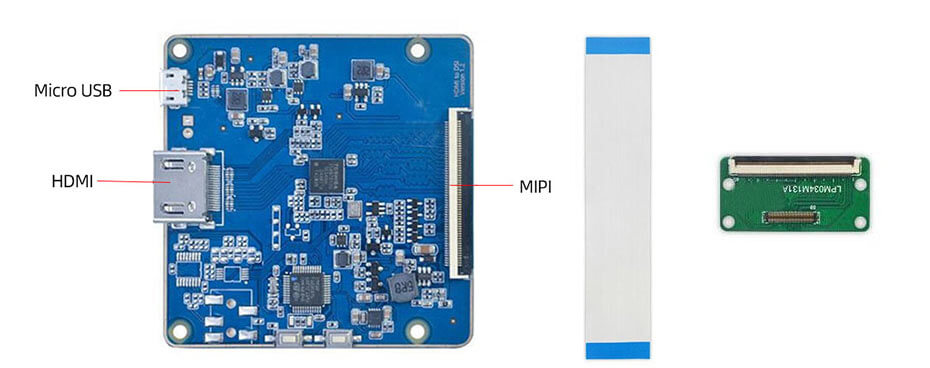

HR215WU1-120 BOE 21.5 Inch TFT LCD Display 1920x1080 LVDS LCD Panel With Driver Board

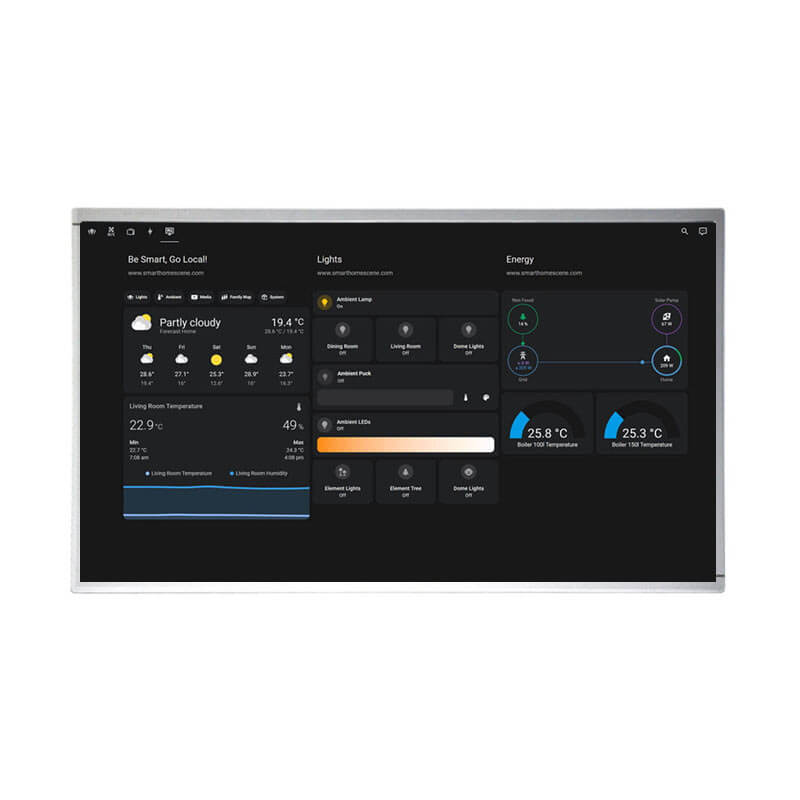

21.5 Inch LCD Display Overview

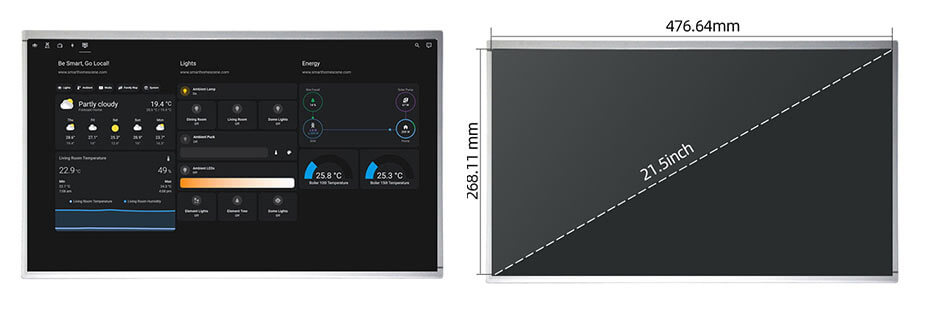

HR215WU1-120 is a 21.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. HR215WU1-120 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 476.64(W)×268.11(H) mm, outline size of 495.6(W)×292.2(H)×11.3(D) mm, viewing area size of 479.8(W)×271.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.79Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, HR215WU1-120 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 17S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. HR215WU1-120 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz.

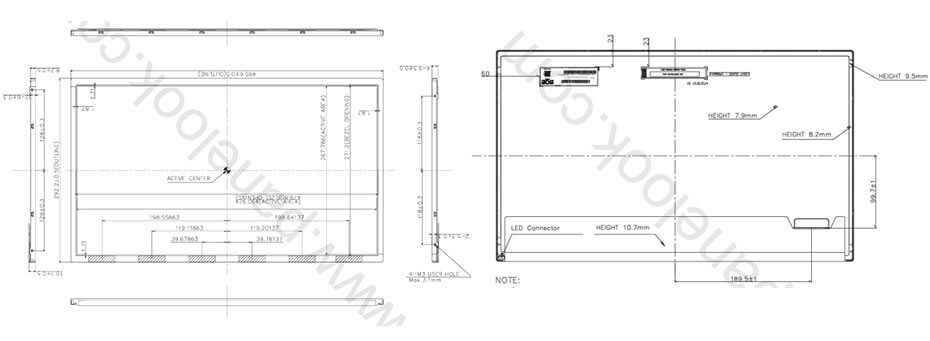

21.5 Inch LCD Display Drawing
