6"-15.6" Touch Screen (8")

8 Inch Capacitive Touch screen P+G Structure 16:10 IIC+USB GT911 Multi-touch Capacitive Touch Screen

Part No.:ET080CTP03
Size:8″ inch
Resolution:Optional
Panel Interface:I2C USB
Display mode:PCAP

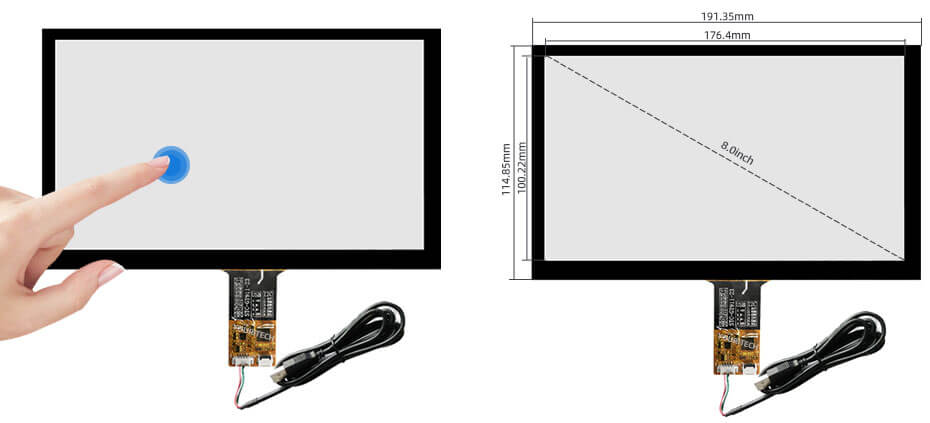

Outline Dimension:191.35x114.85mm
Active Area:176.4x114.85mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

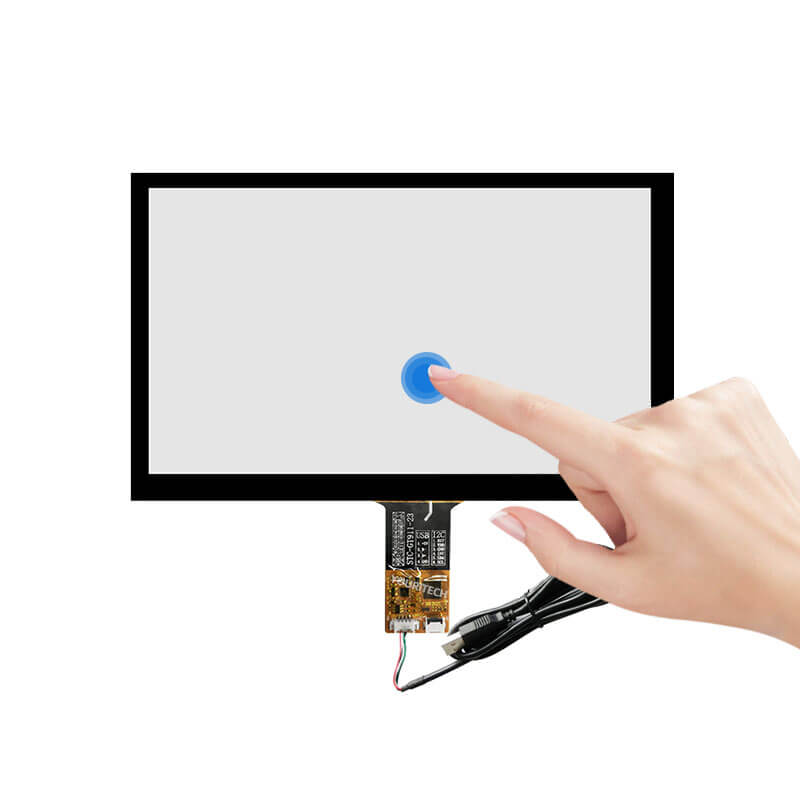

8 Inch Capacitive Touch Screen
Product structure: PET/Glass
Surface hardness: Hard coating (3H)
Touch Points: Multi-touch
Interface Type: I2C USB
Display Area: 176.4x114.85 mm
Outline Dim.: 191.35x114.85 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

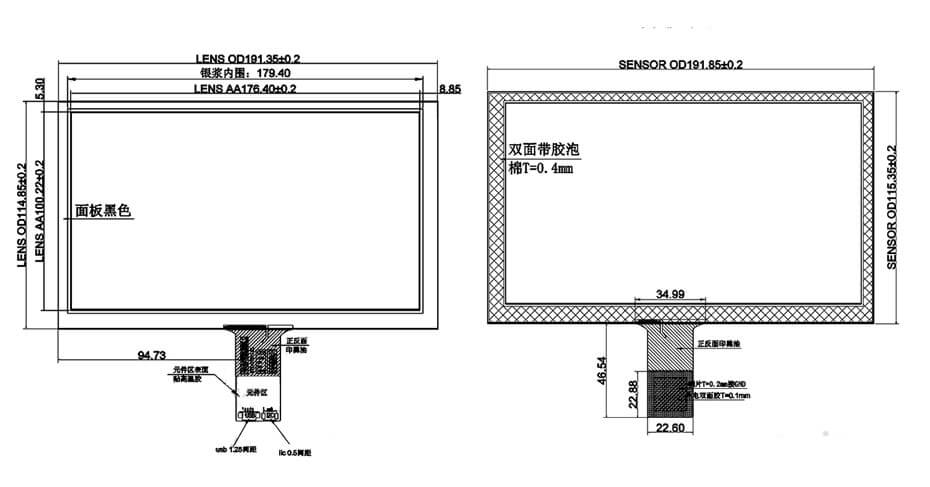

8 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
