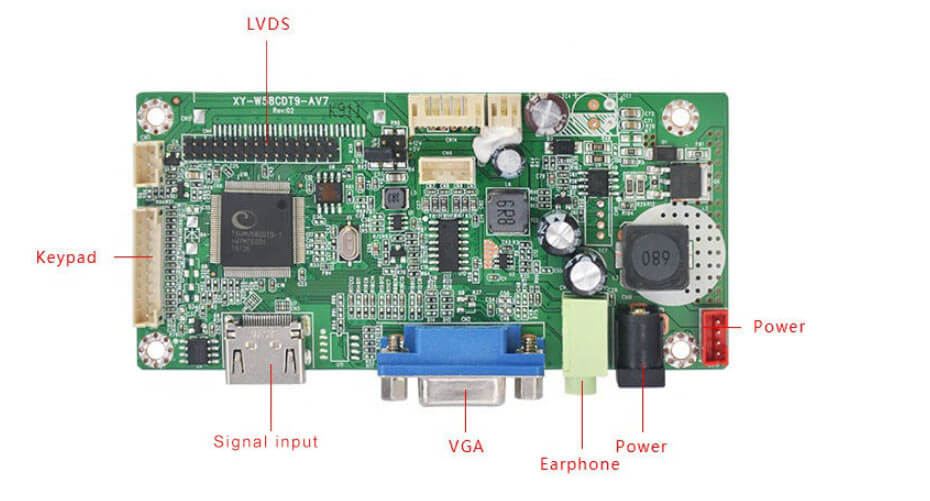

C123HAN01.1 AUO 12.3 Inch TFT LCD Display 1920x720 High Brightness Wide Temperature Bar Display With Driver Board

12.3 Inch LCD Display Overview
C123HAN01.1 is a 12.3 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, without backlight driver, without touch screen.C123HAN01.1 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 292.32(W)×109.62(H) mm, outline size of 308.1(W)×134.86(H)×15.6(D) mm, viewing area size of 294.82(W)×112.12(H) mm, with surface treament of Antiglare, net weight of 590±59g. As a AHVA, Normally Black, Transmissive LCM product, C123HAN01.1 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/13 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 10S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. C123HAN01.1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

12.3 Inch LCD Display Drawing
