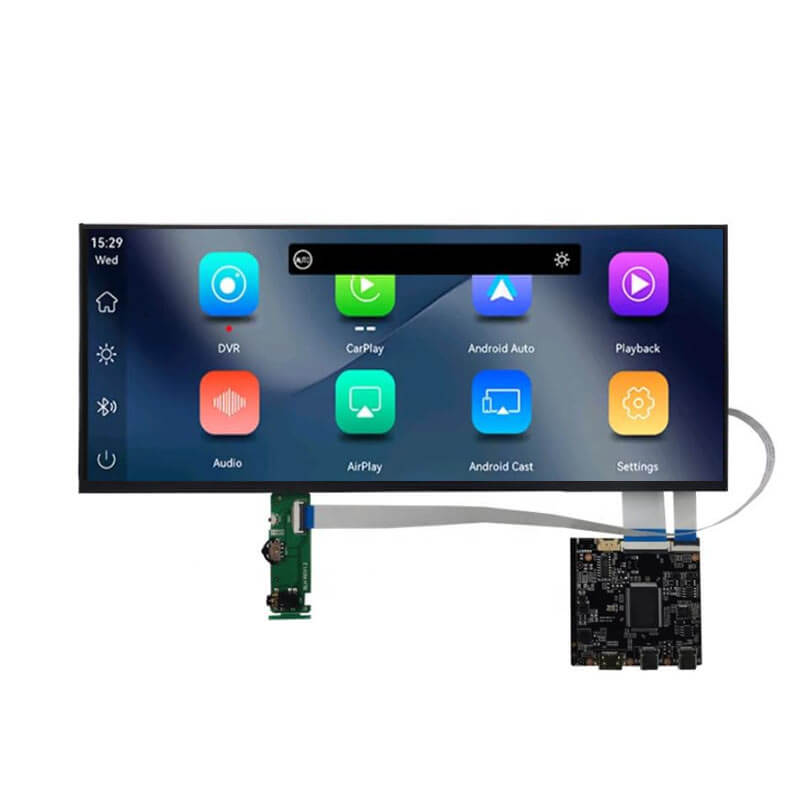

C123HAN03.1 AUO 12.3 Inch TFT LCD Display 2400x900 LVDS Wide Temperature LCD Module With Driver Board

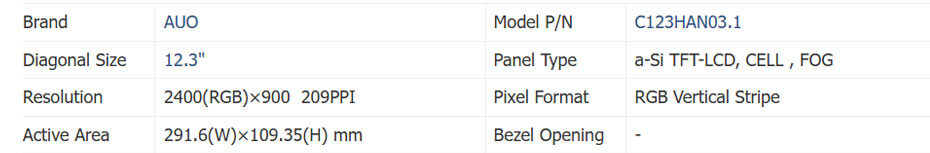

Part No.:C123HAN03.1
Size:12.3″ inch
Resolution:2400x900
Panel Interface:LVDS (2 ch,8-bit)
Display mode:AHVA,Transmissive

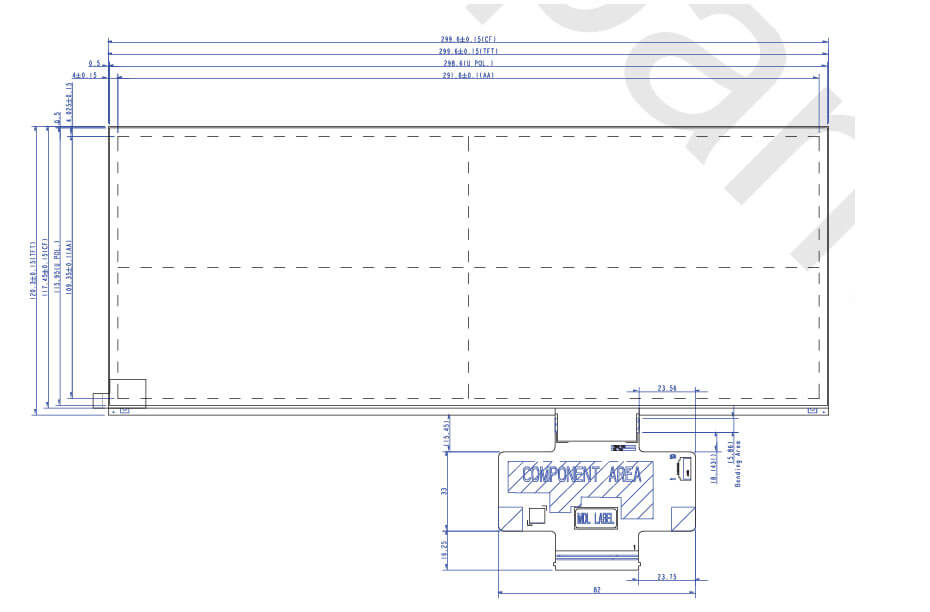

Outline Dimension:299.6x120.3mm

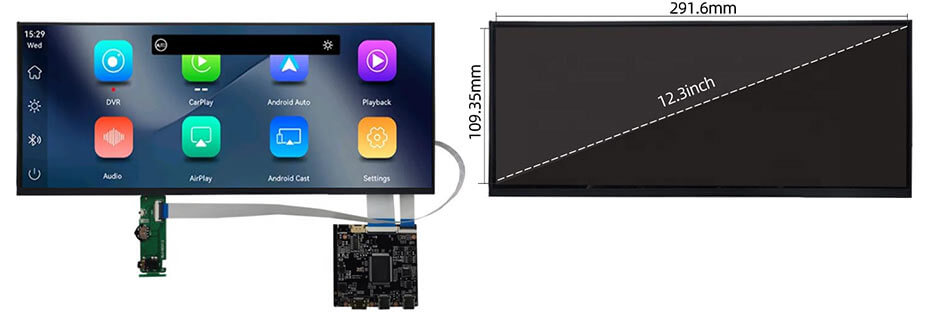

Active Area:291.6x109.35mm
Viewing Angle L/R/U/D:Symmetry
Brightness（cd/m2）:0cd/m²
Operation / Storage Temp:-30~85°C / -40~95°C
Touch:no

12.3 Inch LCD Display Overview

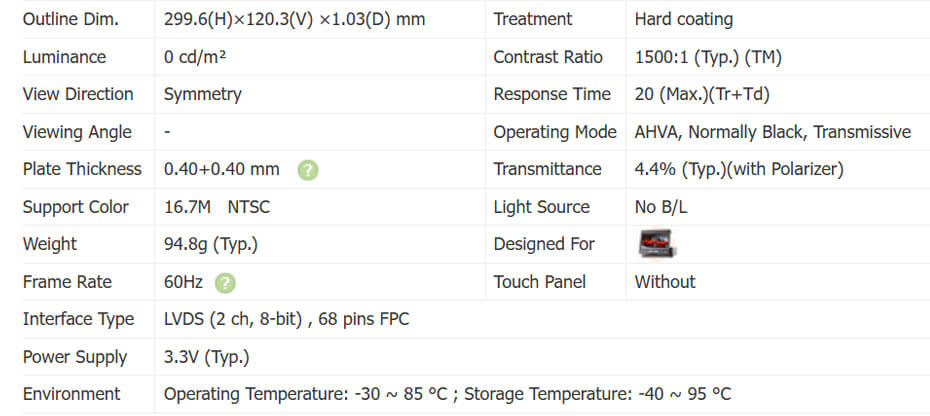

C123HAN03.1 supports display 2400(RGB)×900 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 291.6(W)×109.35(H) mm, outline size of 299.6(W)×120.3(H)×1.03(D) mm, with surface treament of Hard coating, net weight of 94.8g (Typ.), utilizing 0.40+0.40 mm mm plate. As a AHVA, Normally Black, Transmissive CELL product, C123HAN03.1 can provides 1500:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 20 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product have no backlight. C123HAN03.1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 68 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
