AV123Z7M-N12-58P2 BOE 12.3 Inch TFT LCD Display 1920x720 Ultra High Brightness 1000nits Wide Temperature LCD Module With Driver Board

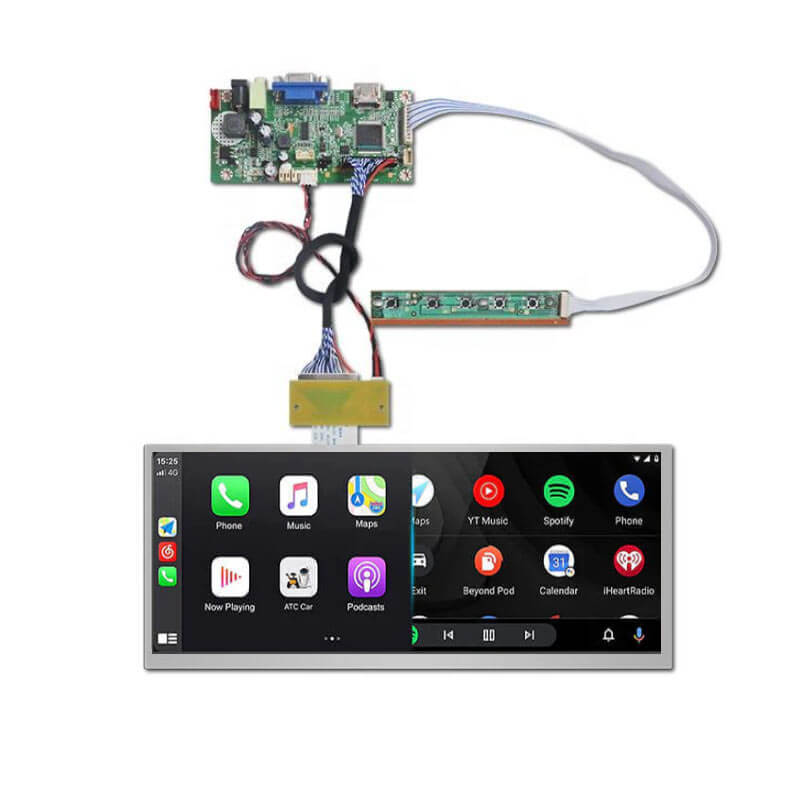

12.3 Inch LCD Display Overview

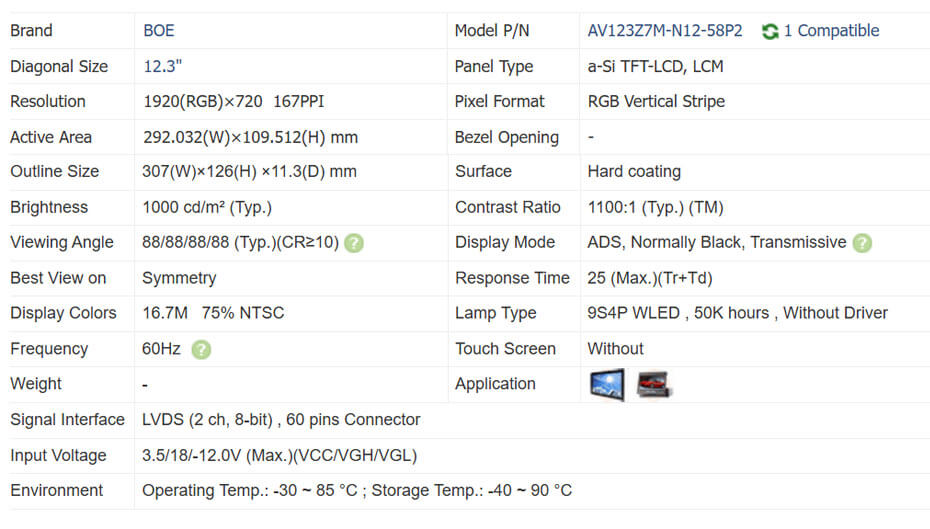

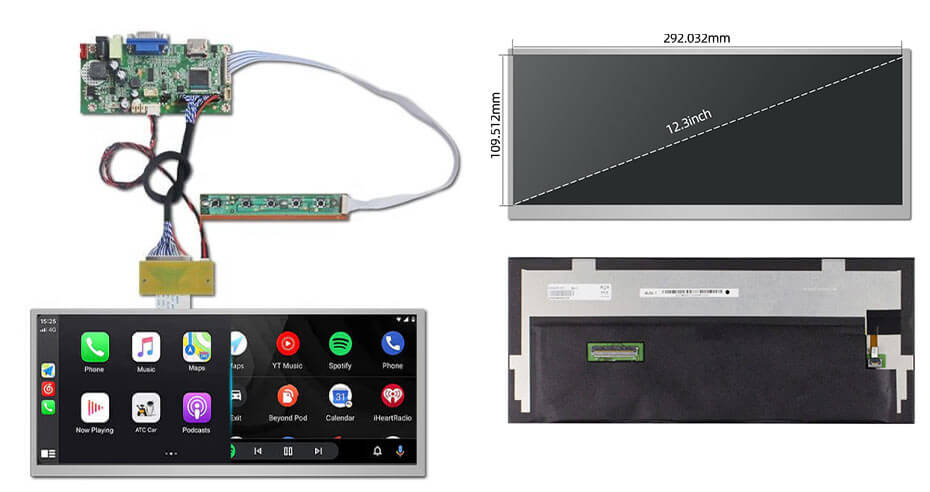

AV123Z7M-N12-58P2 is a 12.3 inch diagonal a-Si TFT-LCD display screen product from BOE, with a built-in WLED backlight, without backlight driver, without touch screen. AV123Z7M-N12-58P2 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 292.032(W)×109.512(H) mm, outline size of 307(W)×126(H)×11.3(D) mm, with surface treament of Hard coating. As a ADS, Normally Black, Transmissive LCM product, AV123Z7M-N12-58P2 can provides 1000 cd/m² display brightness 1100:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. AV123Z7M-N12-58P2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.5/18/-12.0V (Max.)(VCC/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

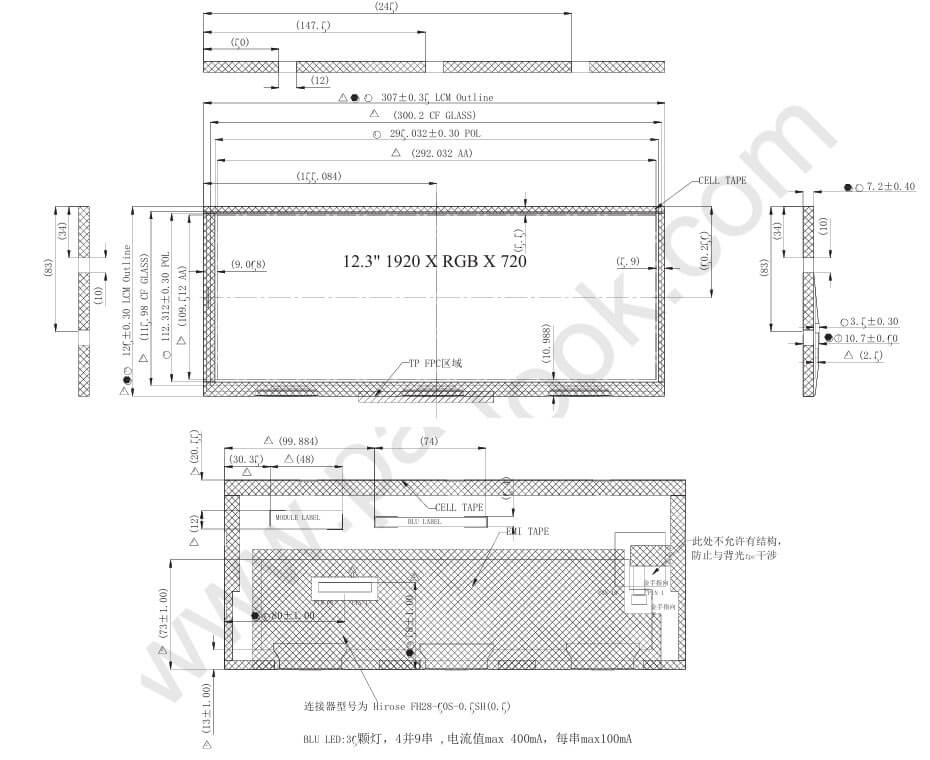

12.3 Inch LCD Display Drawing
