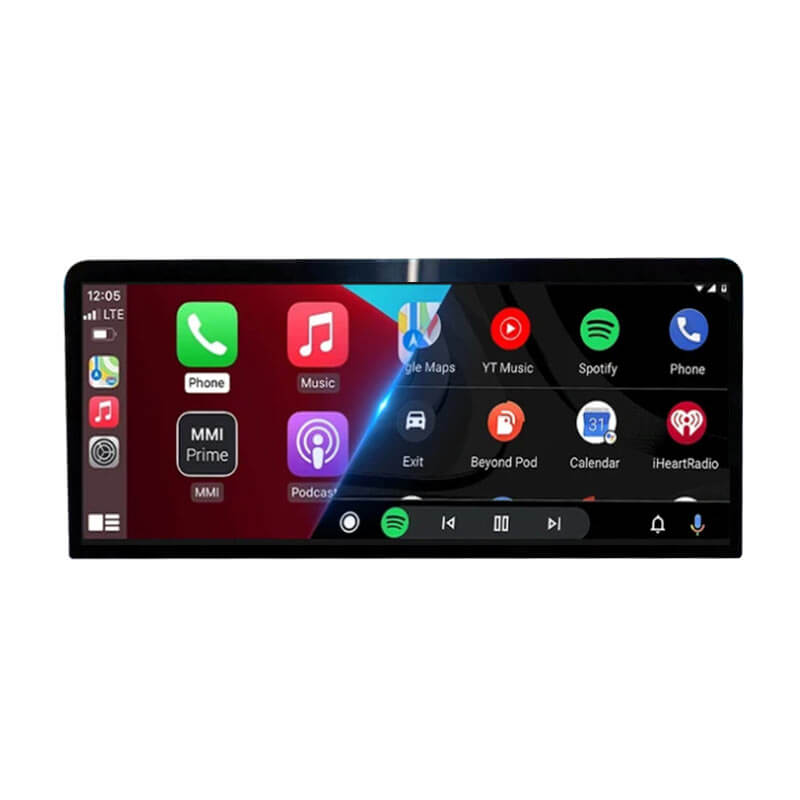

C123HAX02.2 AUO 12.3 Inch TFT LCD Display 1920x720 LVDS High Brightness 930nits Bar Display With Driver Board

12.3 Inch LCD Display Overview

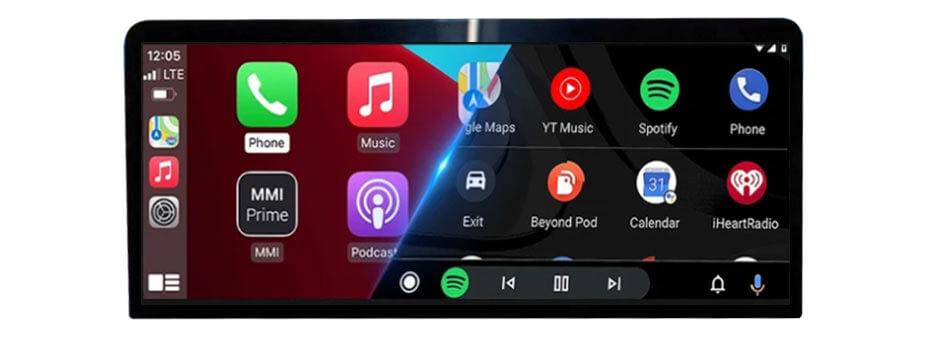

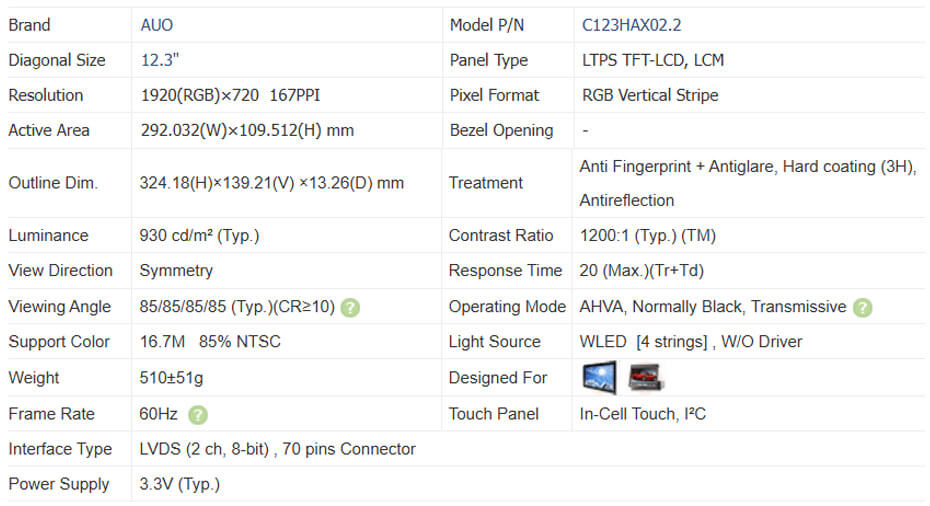

 C123HAX02.2 is a 12.3 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen In-Cell Touch.C123HAX02.2 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 292.032(W)×109.512(H) mm, outline size of 324.18(W)×139.21(H)×13.26(D) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating (3H), Antireflection, net weight of 510±51g. As a AHVA, Normally Black, Transmissive LCM product, C123HAX02.2 can provides 930 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. C123HAX02.2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 70 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

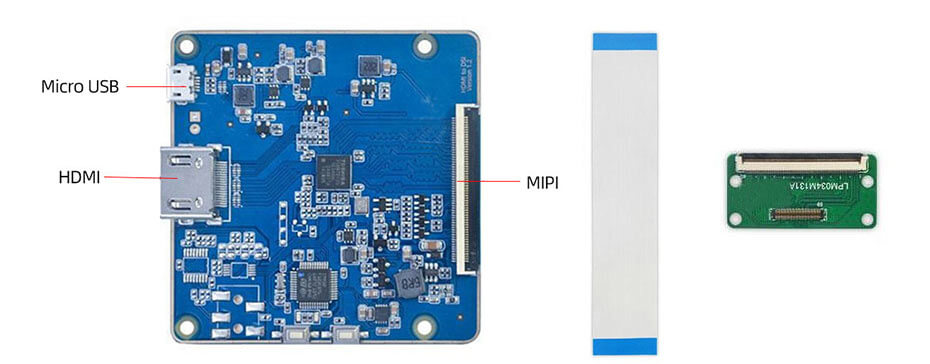

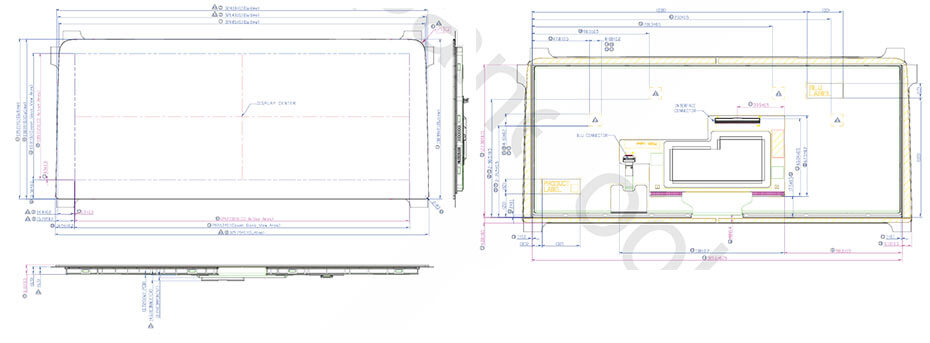

12.3 Inch LCD Display Drawing
