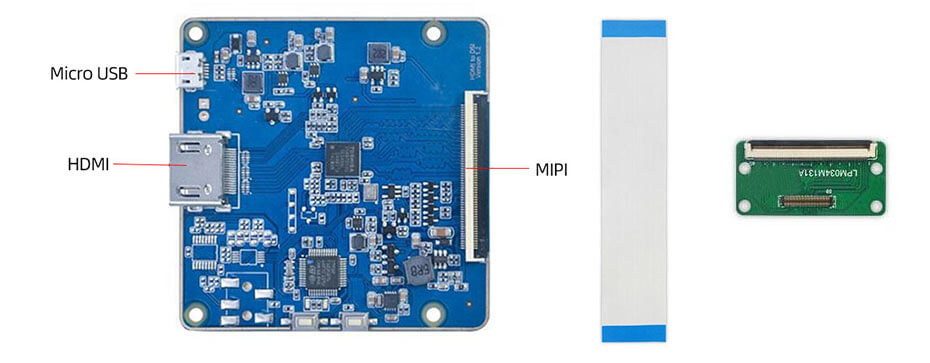

N116BCA-EA1 Innolux 11.6 Inch TFT LCD Display 1366x768 eDP LCD Module With Driver Board

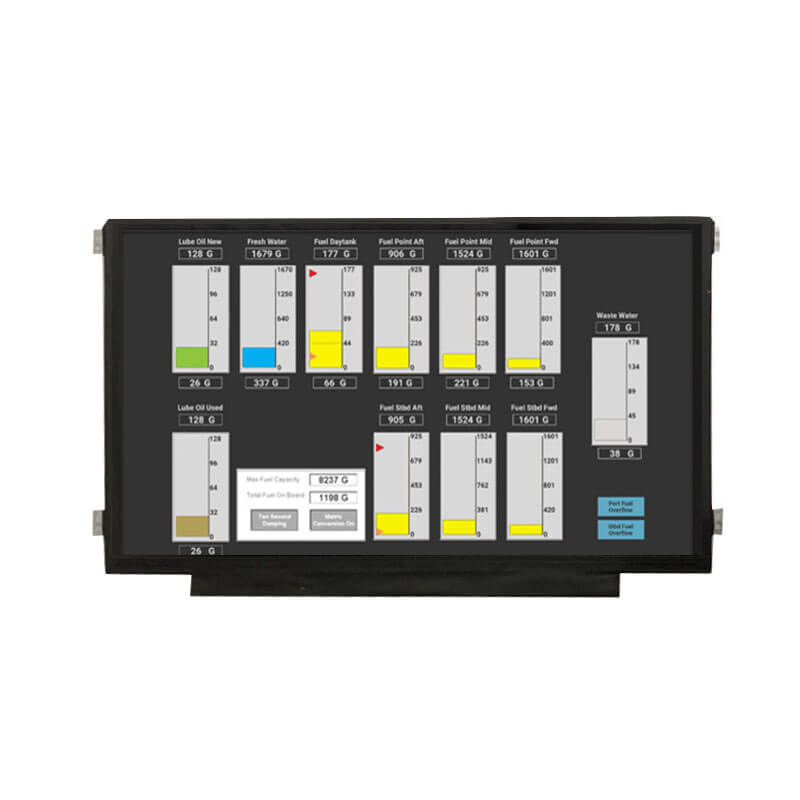

11.6 Inch LCD Display Overview

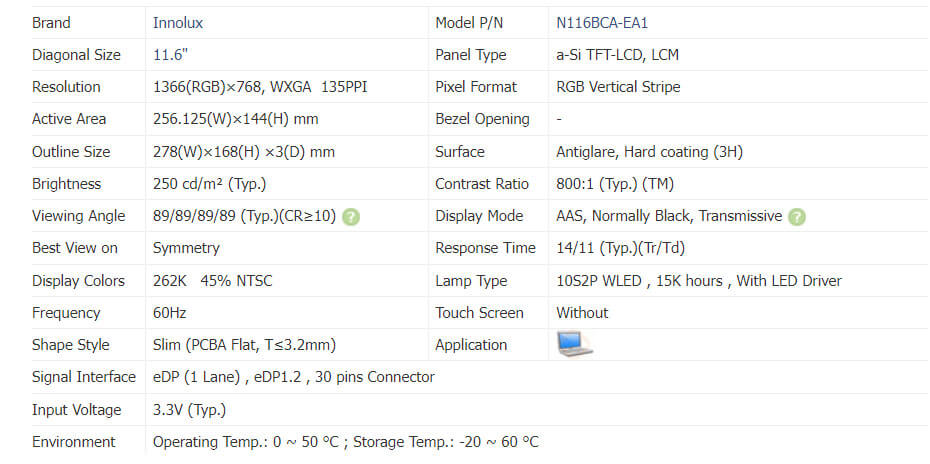

N116BCA-EA1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 256.125(W)×144(H) mm, outline size of 278(W)×168(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AAS, Normally Black, Transmissive LCM product, N116BCA-EA1 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 10S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N116BCA-EA1 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

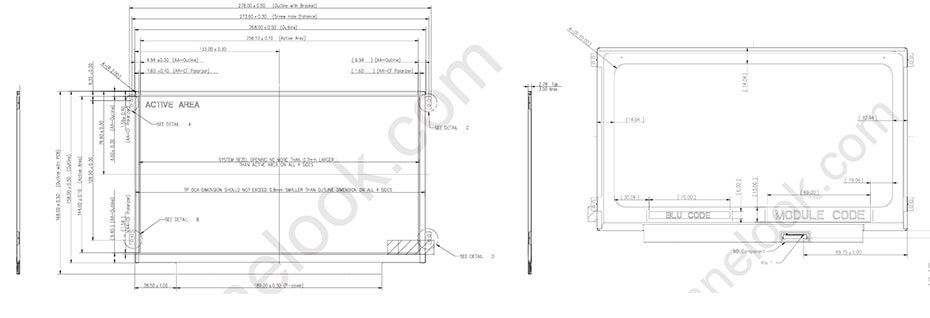

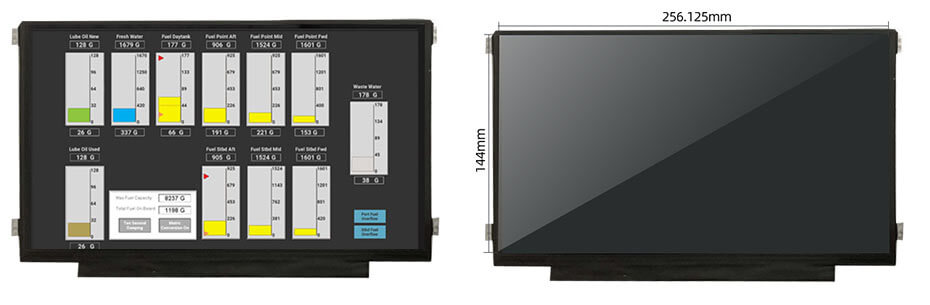

11.6 Inch LCD Display Drawing
