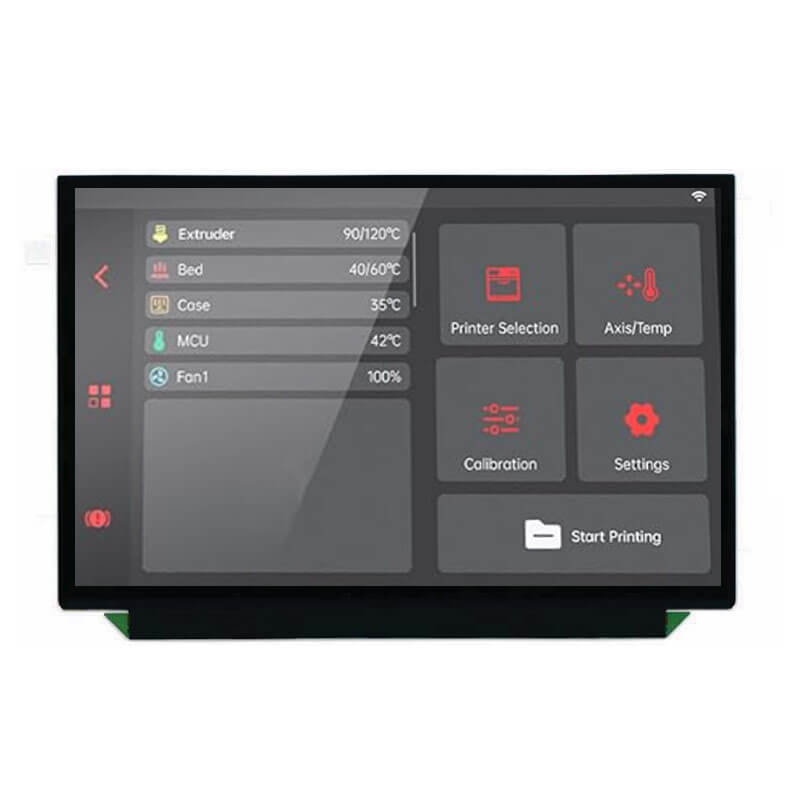

ATNA33AA05-0 13.3 Inch OLCD Display 2880×1800 eDP IPS AMOLED Display

13.3 Inch AMOLED Display Overview
ATNA33AA05-0 supports display 2880(RGB)×1800 (WQXGA+) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 255 PPI. As for mechanical detail, it features active area of 285.984(W)×178.74(H) mm, outline size of 289.18(W)×198.74(H)×2.13(D) mm, with surface treament of Glare (Haze 0%), net weight of 150g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). ATNA33AA05-0 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA33AA05-0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/10V (Typ.)(VDD/VABT). It's typical vertical frame rate (Fv) is 60Hz.

More 13.3 Inch AMOLED Displays For Reference
ATNA33XC11-0 (1920×1080, eDP, IPS, 400nits, -20~70°C, 297.46×183.99mm)
ATNA33AA05-0 (2880×1800, eDP, IPS, 400nits, -20~70°C, 289.18×198.74mm)
ET133AM01-LT (3840×2160, eDP, IPS, 400nits, -20~70°C, 304×176.5mm, On-Cell)
