13.3 Inch AMOLED Display Overview
ET133AM01-LT is a 13.3 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET133AM01-LT supports a resolution of 3840×2160 (UHD) with an aspect ratio of 16:9 (W:H) and offers wide viewing angles of 85/85/85/85 (L/R/U/D). It features an active area of 293.76(W) × 165.24(H) mm and an outline dimension of 304(W) × 176.5(H) mm, and adopts an eDP interface for signal transmission. The display provides a brightness of 400 nits and operates within a temperature range of -20°C to 70°C (storage: -30°C to 70°C). With integrated On-Cell touch functionality, ET133AM01-LT is suitable for applications requiring high-resolution display and touch interaction.

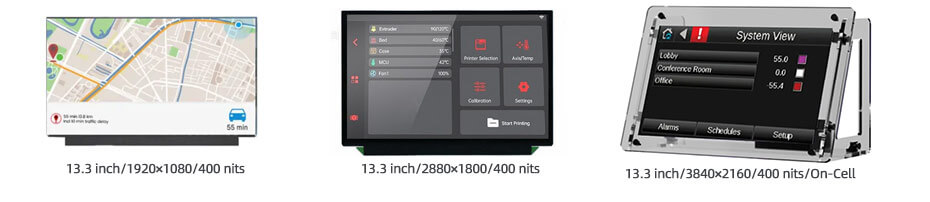

More 13.3 Inch AMOLED Displays For Reference
ATNA33XC11-0 (1920×1080, eDP, IPS, 400nits, -20~70°C, 297.46×183.99mm)
ATNA33AA05-0 (2880×1800, eDP, IPS, 400nits, -20~70°C, 289.18×198.74mm)
ET133AM01-LT (3840×2160, eDP, IPS, 400nits, -20~70°C, 304×176.5mm, On-Cell)
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
