7.6 Inch 1200x1200 Display Overview

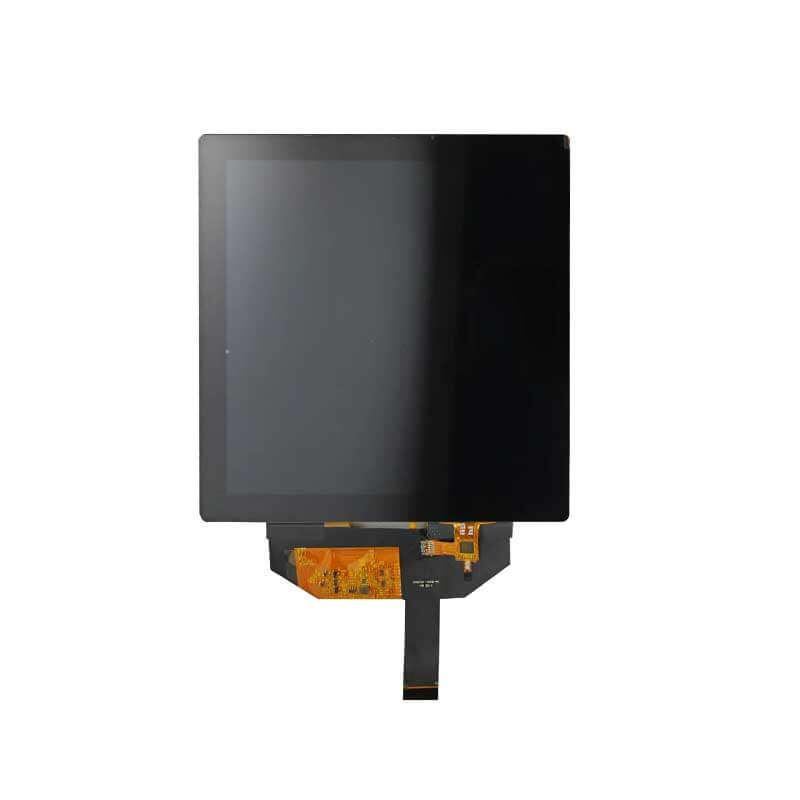

The ET076SQ02-GXT is a 7.6-inch TFT LCD display designed for high brightness and square format applications. It features a resolution of 1200x1200, providing crisp and detailed visuals, ideal for applications requiring a high-quality display. The display has a large active area of 135.36mm x 135.36mm, with compact outline dimensions of 142.56mm x 148.14mm, making it versatile for a variety of industrial and commercial uses. With a brightness of 1000 cd/m², it ensures excellent visibility even in bright environments. The display operates in transmissive mode, delivering vibrant, clear images. It uses a 30-pin MIPI interface, enabling high-speed data transmission for seamless performance. The viewing angles are wide at 85° in all directions (L/R/U/D), ensuring consistent clarity from multiple perspectives. The ET076SQ02-GXT operates efficiently within a temperature range of -20°C to 70°C for operation and -30°C to 80°C for storage, making it suitable for various environmental conditions. This display does not include touch functionality.
Medium Size Display List For Reference
| Inch | Resolution | LCM Driver chip |
LCM Dimensions | Display area | LCD interface | Reference brightness | CTP/RTP |
| 5 | 800x480 | ST7262 | 120.7x75.9x2.95 | 108x64.8 | RGB 24 BIT | 600 | CTP |
| 480x854 | ST7701S | 66.4x120.05x2.05 | 61.56x109.53 | RGB 24 BIT | 400 | / | |
| 800x480 | ST7262 | 120.7x75.9x3.0 | 108x64.8 | RGB 24 BIT | 1500 | / | |
| 720x1280 | ST7703 | 65.3x119.28x1.64 | 62.1x110.4 | MIPI 4 LANE | 350 | CTP | |
| 480x854 | ST7701S | 65.3x119.3x2.05 | 61.56x109.53 | MIPI 2 LANE | 350 | / | |
| 480x854 | ST7701S | 66.4x120.05x2.05 | 61.56x109.53 | MIPI 2 LANE | 1000 | / | |
| 720x1280 | NV3051FL | 65.4x119.3x1.59 | 61.56x109.53 | LVDS | 400 | / | |
| 1080x1920 | HX8399C | 64.76x118.7x1.5 | 61.88x110.02 | MIPI 4 LANE | 800 | / | |
| 720x1280 | NV3052C | 65.4x119.3x1.99 | 61.56x109.53 | RGB 24 BIT | 300 | / | |
| 5.2 | 1080x1920 | HX8399C | 67x122.6x1.7 | 64.8x115.2 | MIPI 4 LANE | 1200 | CTP |
| 5.5 | 1080x1920 | HX8399C | 70.04x128.29x1.72 | 68.04x120.96 | MIPI 4 LANE | 1200 | CTP |
| 1080x1920 | HX8399C | 70.04x128.29x1.72 | 68.04x120.96 | MIPI 4 LANE | 500 | CTP | |
| 720x1280 | ST7703 | 70.34x128.1x1.62 | 67.93x120.7 | MIPI 4 LANE | 300 | / | |
| 720x1280 | ST7703 | 70.34x128.1x1.62 | 67.93x120.7 | MIPI 4 LANE | 1000 | / | |
| 6 | 720x1280 | RM68200 | 76.84x139.46x2.02 | 77.98x131.52 | MIPI 4 LANE | 500 | / |
| 720x1280 | ILI9881C | 76.84x139.46x2.02 | 77.98x131.52 | MIPI 4 LANE | 450 | CTP | |
| 1080x1920 | FT8275 | / | 74.52x132.48 | MIPI | 400 | / | |
| 7 | 1024x600 | HX8282A11 | 164.9x100x3.45 | 154.08x85.92 | RGB 24 BIT | 800 | / |
| 720x1280 | ILI9881C | 91.44x165.91x2.35 | 86.94x154.56 | MIPI 4 LANE | 350 | / | |
| 1024x600 | HX8282A11 | 164.9x100x3.5 | 154.08x85.92 | LVDS 8 BIT | 1300 | / | |
| 800x1280 | ILI9881C | 99.65x160.85x2.4 | 94.2x150.72 | MIPI 4 LANE | 550 | / | |
| 600x1024 | JD9365DA | 94.85x163.14x2.73 | 89.28x184.8 | MIPI 4 LANE | 350 | CTP | |
| 600x1024 | JD9365DA | 94.85x161.29x2.53 | 89.28x184.8 | MIPI 2 LANE | 800 | CTP | |
| 800x480 | HX8264-E | 164.9x100x5.5 | 154.08x85.92 | TTL | 450 | / | |
| 800x1280 | ILI9881C | 99.65x160.85x2.4 | 94.2x150.72 | MIPI 4 LANE | 1100 | CTP | |
| 1024x600 | EK79007AD2 | 164.9x100x3.45 | 154.08x85.92 | MIPI 4 LANE | 700 | CTP | |
| 1024x600 | HX8282A11 | 164.9x100x3.45 | 154.08x85.92 | RGB | 1000 | CG | |
| 1200x1920 | HX8279 | 105.18x163.34x3.65 | 94.5x151.2 | MIPI 4 LANE | 1600 | / | |
| 8 | 1024x768 | / | 183x141x5.5 | 162.5x121.54 | LVDS | 1000 | / |
| 800x1280 | JD9365DA | 114.66x184.24x2.41 | 107.64x172.22 | MIPI 4 LANE | 450 | CTP | |
| 800x1280 | NV3052C | 114.66x184.24x2.41 | 107.64x172.22 | LVDS | 350 | CTP | |
| 1024x600 | HX8282 | 192.8x116.9x6.45 | 176.64x99.36 | LVDS | 450 | / | |
| 1024x768 | / | 174x136x2.5 | 162.5x121.54 | LVDS | 300 | / | |
| 1200x1920 | / | / | 176.64x99.36 | MIPI | / | / | |
| 1920x1200 | / | / | 172.22x107.64 | LVDS | / | / | |
| 9 | 1024x600 | HX8282A11 | 210.7x126.5x5 | 196.61x114.15 | LVDS 8 BIT | 450 | / |
| 9.7 | 1024x768 | / | 210.21x164.25x2.85 | 196.6x147.46 | LVDS | 1000 | / |
| 10.1 | 800x1280 | JD9365DA | 143x228.6x2.7 | 135.36x216.58 | MIPI 4 LANE | 350 | / |
| 800x1280 | JD9365DA | 143x228.6x2.7 | 135.36x216.58 | MIPI 4 LANE | 700 | CTP | |
| 1024x600 | HX8282A11 | 235x143x4.5 | 222.72x125.28 | LVDS | 450 | / | |
| 1200x1920 | HX8279 | 143x228.6x2.56 | 135.36x216.58 | MIPI 4 LANE | 300 | / | |
| 1280x800 | EK79202 | 229.46x149.1x2.6 | 216.96x135.6 | LVDS | 350 | / | |
| 1280x800 | EK79202 | 229.46x149.1x4.4 | 216.96x135.6 | LVDS | 1000 | / | |
| 800x1280 | NV3051F1 | 143x228.6x2.8 | 135.36x216.58 | LVDS 8 BIT | 400 | CTP | |
| 1920x1200 | / | 229.25x149.8x4.25 | / | LVDS | 1000 | / | |
| 1024x600 | / | 235x143x4.5 | / | RGB | 700 | / | |
| Touch Screens are Available and Optional | |||||||
7.6 Inch 1200x1200 Display Custom LCD Solutions for Diverse Applications
Brightness from 0-3000 for perfect display effect achievement.
100% NTSC makes the vividness of the picture better and the color transition in the picture more natural.
Color Temperature is positive white at around 5500K, warm white (yellowish) at 3500K and also cool white (cold) at 6500K.
Driver circuit with sufficient voltage and current values to meet output requirements and reduce the secondary development cycle.
Heat dissipation for high-brightness products to advance design of reasonable heat dissipation structure
Power consumption, we increase the brightness without increasing the power consumption.
Cables, Backlighting also requires cables, either through an FPC connected to the LCD's FPC and controlled through a port, or a separate cable that controls it through a connector.
LED life reached the standard of 30K hours Min. 50K, 70K, 100K hours are all achievable.
7.6 Inch 1200x1200 Display Touch screen,standard type and customization
7.6 Inch 1200x1200 Display Driver board/adapter board, standard type and design customization
DEMO board, H-DMl board, other customized board, etc.
7.6 Inch 1200x1200 Display Embedded Integrated Solution
UART display solution, H-DMl display solution, Window display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
