5.1"-7" LCD Display (7")

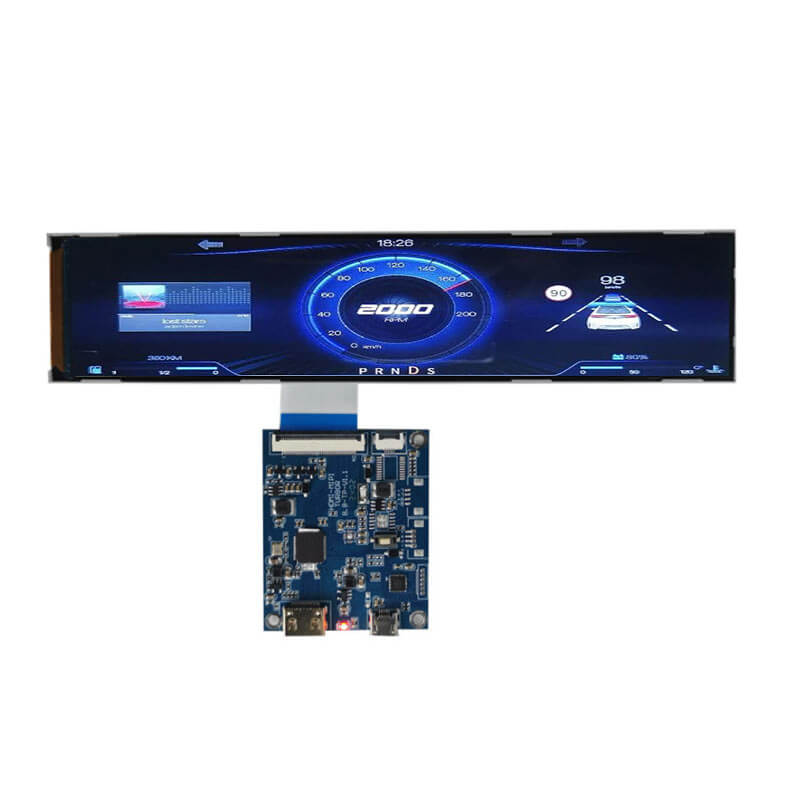

7 Inch Stretched Bar Display 600x1424 Wide Temperature LCD Module With Driver Board

Part No.:ET069BA01-LH
Size:7″ inch
Resolution:600x1424
Panel Interface:MIPI
Display mode:Transmission

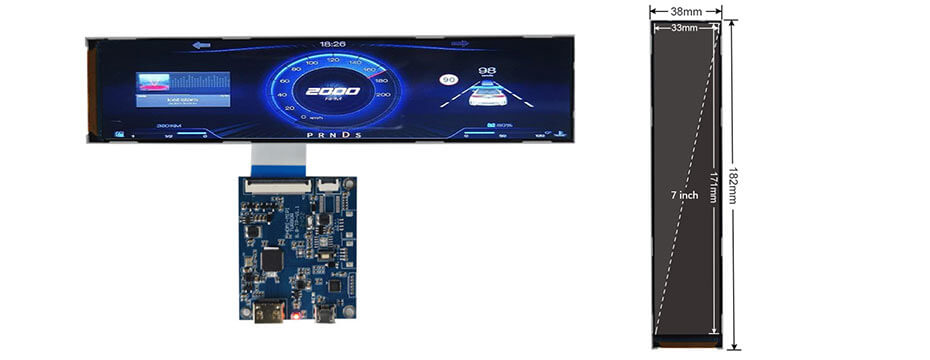

Outline Dimension:38x182mm
Active Area:33x171mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:400Cd/m2(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

7 Inch LCD Display Overview
7 Inch Stretched Bar Display 600x1424 Wide Temperature LCD Module With Driver Board.

Size: 7 inch
Resolution: 600x1424
Brightness: 400 Cd/m2 (Typ.)
Color: 16.7M
Viewing Direction: Full viewing angle
Display Mode: Transmission mode,normally black
Interface: MIPI
