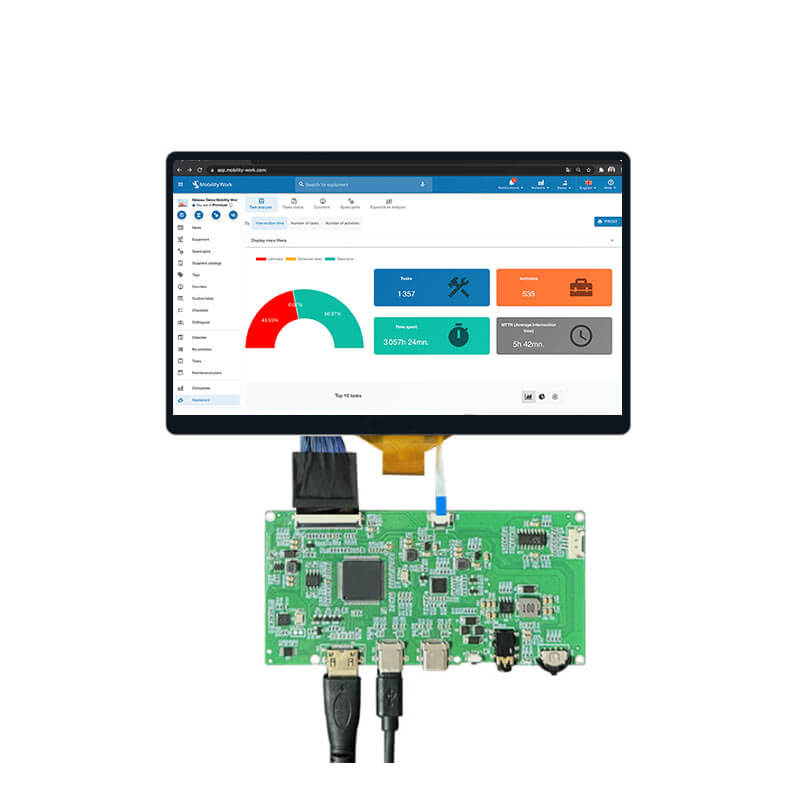

TL070FVXS01-02 7 Inch TFT LCD Display 1920x1080 eDP Touch Display With Driver Board

7 Inch LCD Display Overview
TL070FVXS01-02 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 314 PPI. As for mechanical detail, it features active area of 154.944(W)×87.156(H) mm, outline size of 165.04(W)×106.26(H)×3.49(D) mm, with surface treament of Hard coating, net weight of 65.0g (Typ.). As a SFT, Normally Black, Transmissive Assembly product, TL070FVXS01-02 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr/Td), 6.3 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 8S5P WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. TL070FVXS01-02 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.

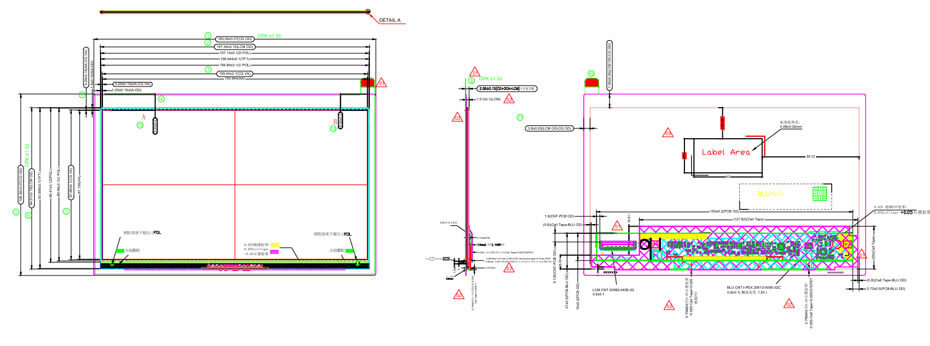

7 Inch LCD Display Drawing
