5.1"-7" LCD Display (7")

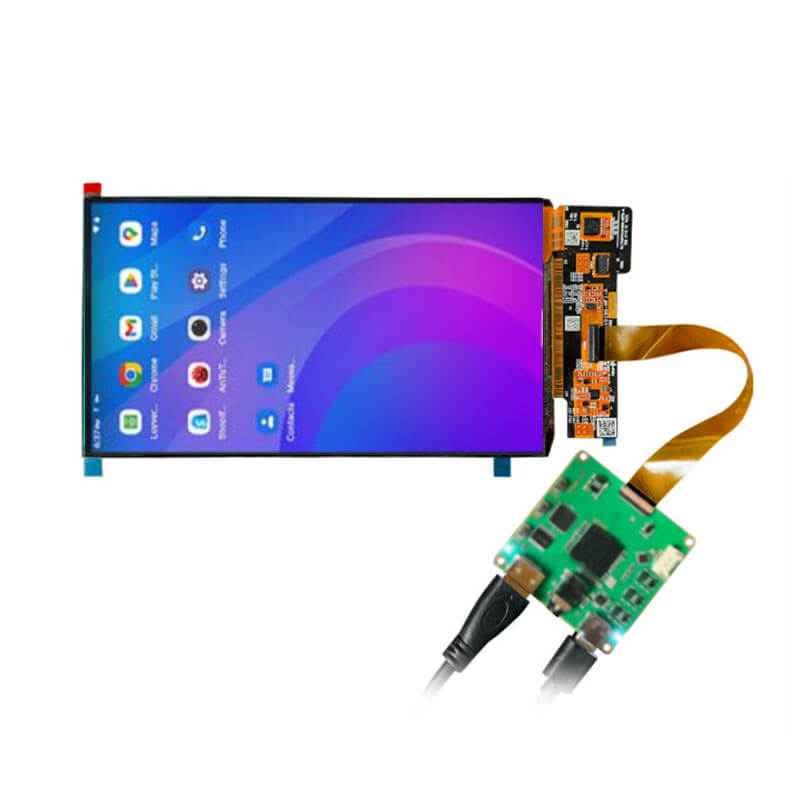

7 Inch AMOLED Display 1920x1080 FHD MIPI 850Nits High Brightness OLED Touchscreen With Controller Board

  • Part No.:ET070AM01-K-HDMI
  • Size:7″ inch
  • Resolution:1080x1920
  • Panel Interface:MIPI
  • Display mode:AMOLED
  • Outline Dimension:89.1344x160.9056x1.095mm
  • Active Area:87.1344x154.9056mm
  • Viewing Angle L/R/U/D:IPS Fulll Angle
  • Brightness(cd/m2):850nits
  • Operation / Storage Temp:-30~70°C / -40~80°C
  • Touch:yes



7 Inch LCD Display Overview
7 Inch AMOLED Display 1920x1080 FHD MIPI 850Nits High Brightness OLED Touchscreen With Controller Board.

Size: 7 inch
Type: AMOLED
Interface: MIPI 4 lanes
Resolution: 1080 RGBx1920

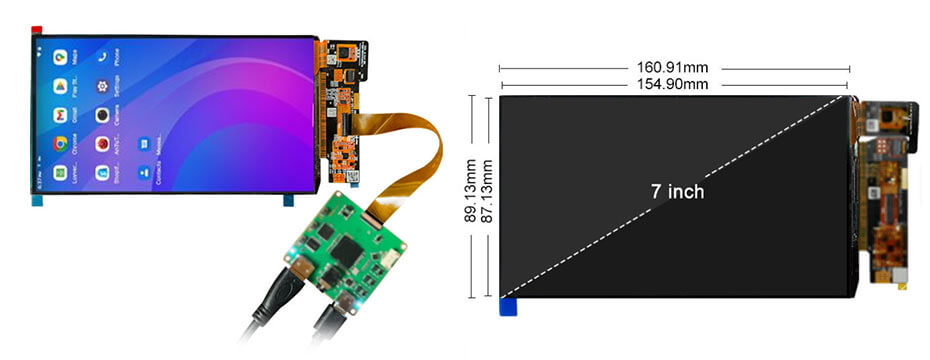

Dimension outline: 89.1344x160.9056x1.095 mm
Active area: 87.1344x154.9056mm
Brightness: 850 nits
PPI: 315
Color depth: 10 bits,100%RGB
Color gamut: NTSC 100%
Contrast ratio: 100000:1
Frame rate: 90~165Hz


PRODUCTION AND MANUFACTURING

X
youritech

At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
