5.1"-7" LCD Display (7")

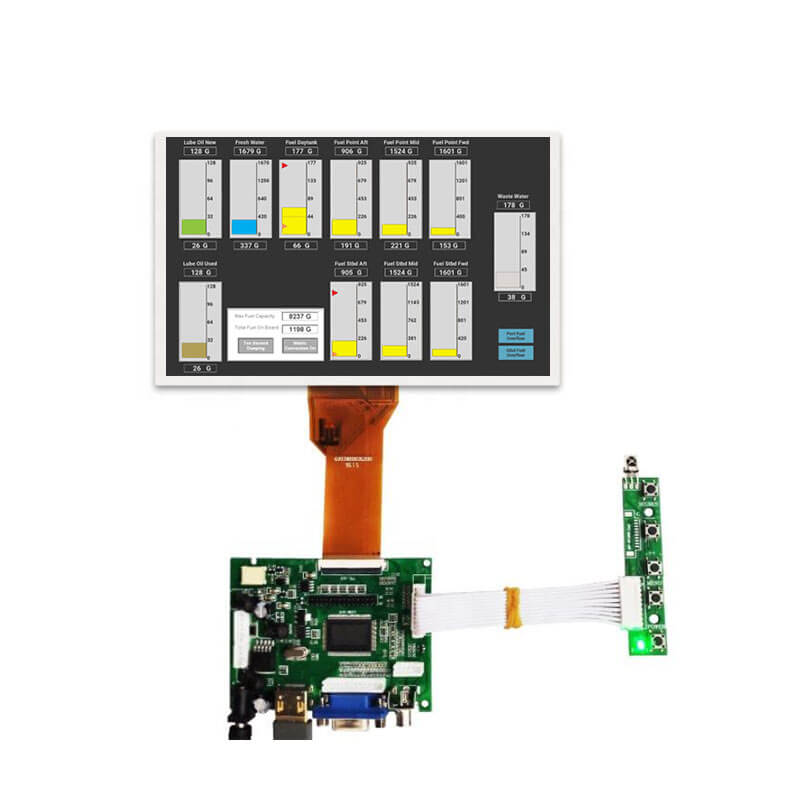

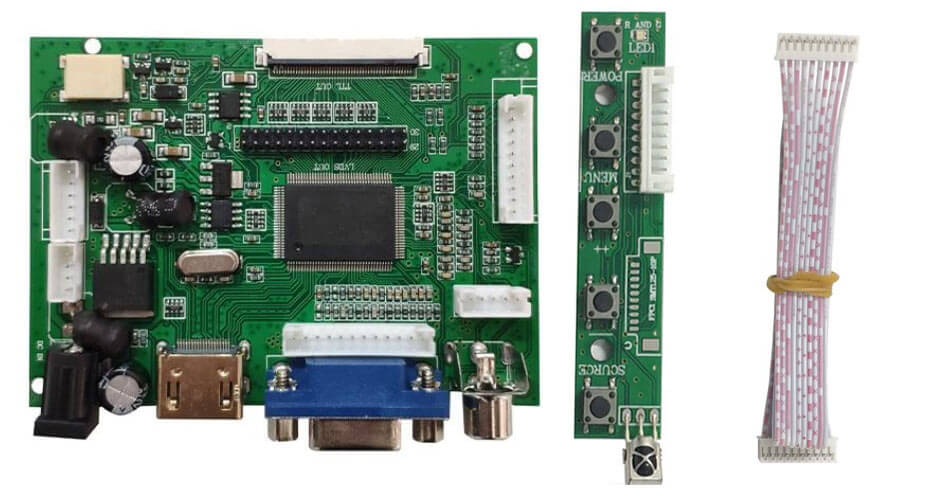

AT070TN94 Innolux 7 Inch TFT LCD Display 800x480 Wide Temperature LCD Module With Driver Board

Part No.:AT070TN94
Size:7″ inch
Resolution:800x480
Panel Interface:Parallel RGB
Display mode:TN,Transmissive

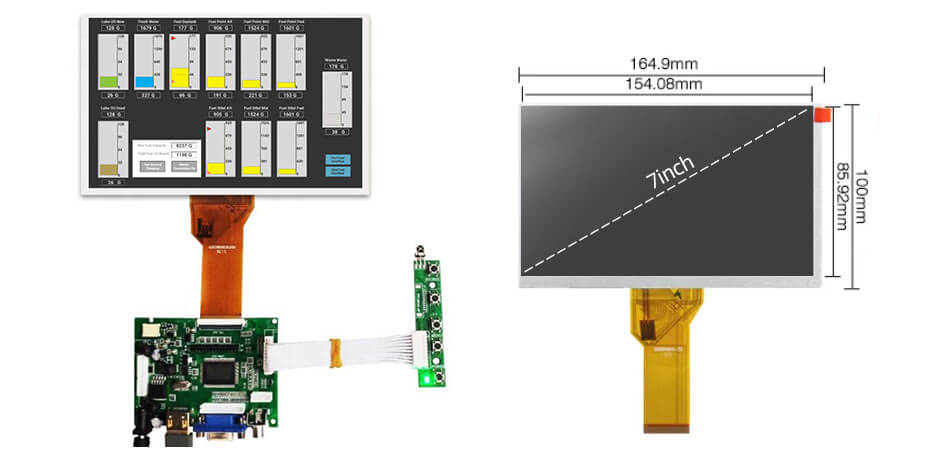

Outline Dimension:164.9x100x6mm
Active Area:154.08x85.92mm
Viewing Angle L/R/U/D:70/70/50/70 (Typ.)
Brightness（cd/m2）:400cd/m²(Typ.)
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:no

7 Inch LCD Display Overview
AT070TN94 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte , 80.15mm length FPC. Based on its features, recommend that this model be applied to Automotive Display etc.
