6.86 Inch Stretched LCD Display 480×1280 MIPI Bar Display with Touch & HDMI Driver Board

6.86 Inch Stretched Bar Display Overview
ET068BA01-GX is a 6.86-inch diagonal stretched LCD display screen product. ET068BA01-GX supports a display resolution of 480×1280 with a 40-Pin MIPI interface and Normally Black display mode. It features an outline size of 66.60(W)×181.0(H)×4.75(D) mm and supports a wide viewing angle in all directions (L/R/U/D). ET068BA01-GX provides 520 cd/m² display brightness and supports an operating temperature range of -20°C to 70°C. It can be equipped with a touch panel and an HDMI driver board, making it suitable for stretched bar displays, secondary monitors, embedded displays, and other applications requiring a long-form display solution.

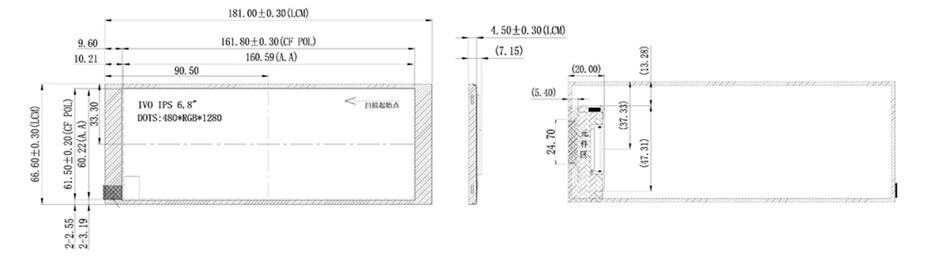

6.86 Inch Stretched Bar Display Drawing

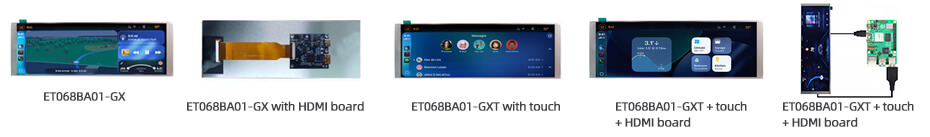

6.86 Inch Bar Displays Solution For Reference
ET068BA01-GX
ET068BA01-GX with HDMI board
ET068BA01-GXT with touch
ET068BA01-GXT + touch + HDMI board
ET068BA01-GX WITH USB board

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
