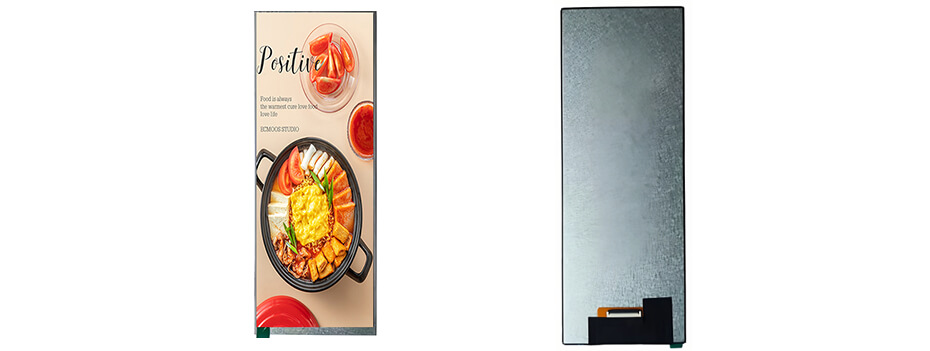

9.3 Inch Stretched LCD Display IPS 600×1600 40-Pin MIPI Bar Display with Touch & HDMI Driver Board

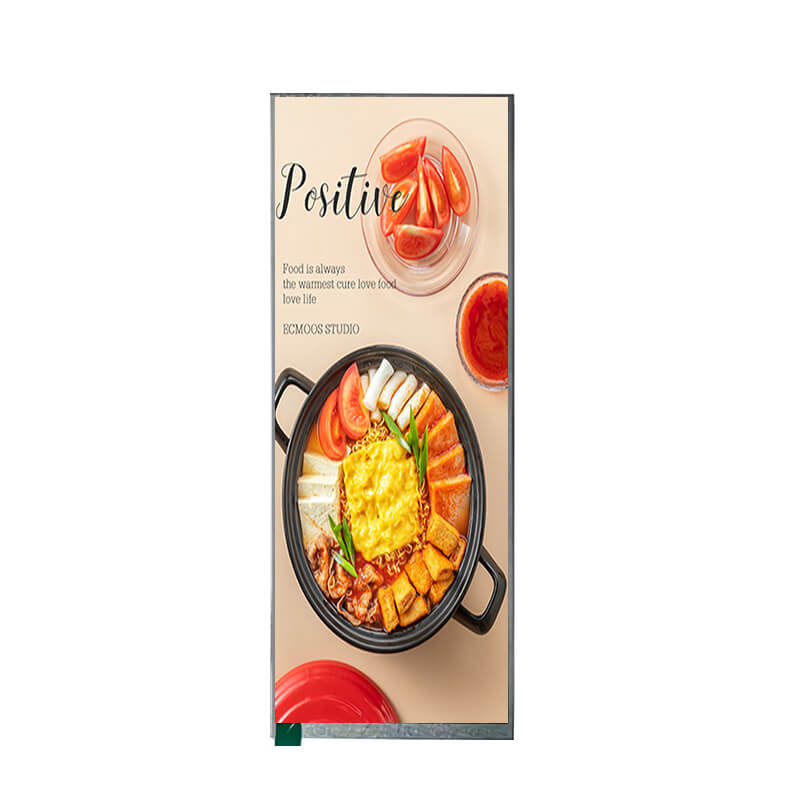

9.3 Inch Stretched Bar Display Overview
AV093SKQ-N80-5QP0 is a 9.3-inch diagonal IPS stretched LCD display screen product. AV093SKQ-N80-5QP0 supports a display resolution of 600×1600 with a 40-Pin MIPI interface and Normally Black display mode. It features an outline size of 89(W)×231(H)×4.6(D) mm and supports a wide viewing angle in all directions (L/R/U/D). AV093SKQ-N80-5QP0 provides 750 cd/m² display brightness and supports an operating temperature range of -20°C to 70°C. It can be equipped with a touch panel and an HDMI driver board, making it suitable for stretched bar displays, secondary monitors, embedded displays, and other applications requiring a long-form display solution.
9.3 Inch Stretched Bar Display Drawing

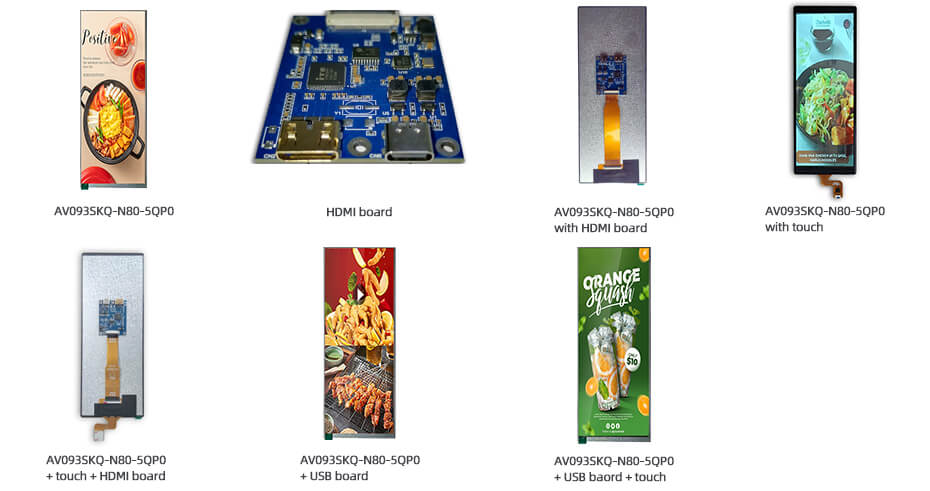

9.3 Inch Bar Displays Solution For Reference
AV093SKQ-N80-5QP0
HDMI board
AV093SKQ-N80-5QP0 with HDMI board
AV093SKQ-N80-5QP0 with touch
AV093SKQ-N80-5QP0 + touch + HDMI board
AV093SKQ-N80-5QP0 + USB board
AV093SKQ-N80-5QP0 + USB baord + touch

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
