5.1"-7" LCD Display (6.2")

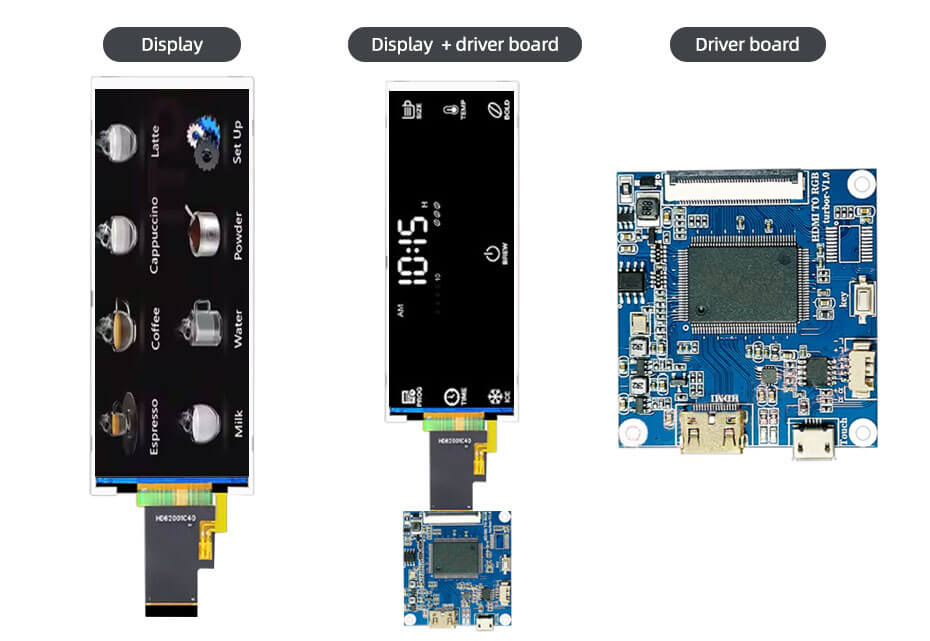

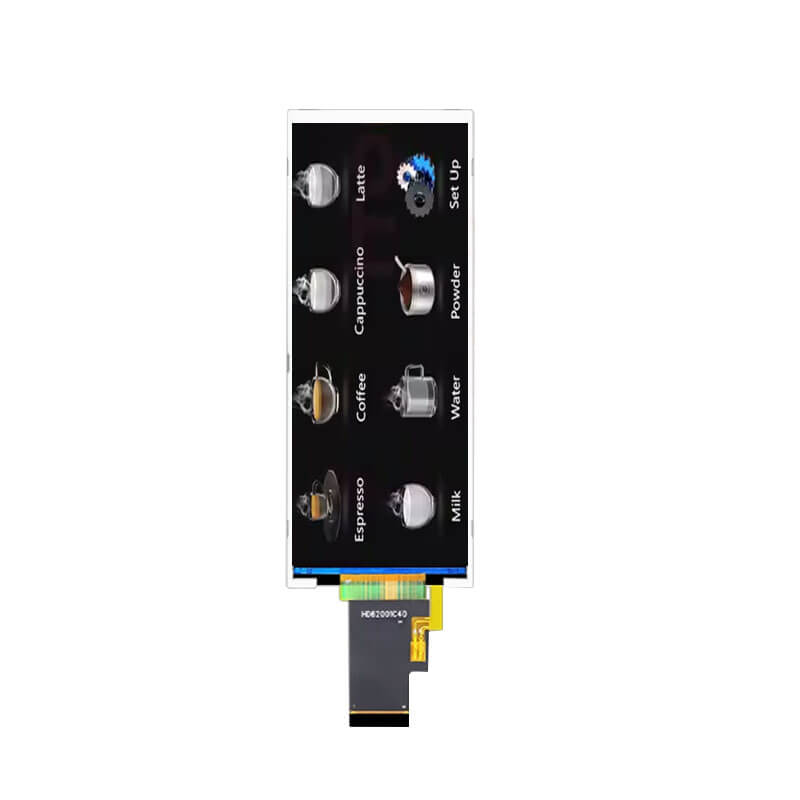

6.2 Inch Bar Display 360x960 Full Viewing Angle IPS TFT LCD Display With HDMI Driver Board

Part No.:ET062BA01-HDMI
Size:6.2″ inch
Resolution:360x960
Panel Interface:HDMI
Display mode:/
Outline Dimension:62.29x163.36x4.5(mm)
Active Area:55.3x147.46(mm)
Viewing Angle L/R/U/D:IPS Full Viewing
Brightness（cd/m2）:/
Operation / Storage Temp:-20~+80°C / -20~+80°C
Touch:yes

6.2 Inch 360x960 Bar Display Overview
6.2 Inch Bar Display 360x960 Full Viewing Angle IPS TFT LCD Display With HDMI Driver Board.

6.2 Inch 360x960 Bar Display Features
Model:ET062BA01-HDMI
1)Panel Type: TFT
2)Active Area: 55.3x147.46(mm)
3)Drive IC:GC9503CV
4)Outline Dim.: 62.29x163.36x4.5(mm)
5)Size: 6.2 inch
6)Resolution:360x960
7)Interface: HDMI

Onboard Resources

Display Module Customization

- Optical Bonding
lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.
