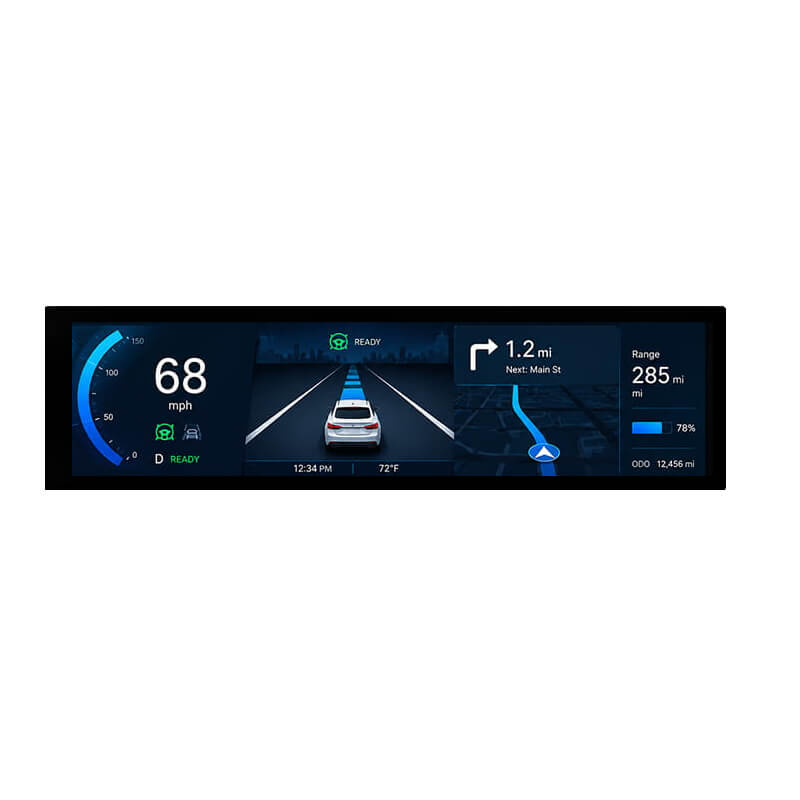

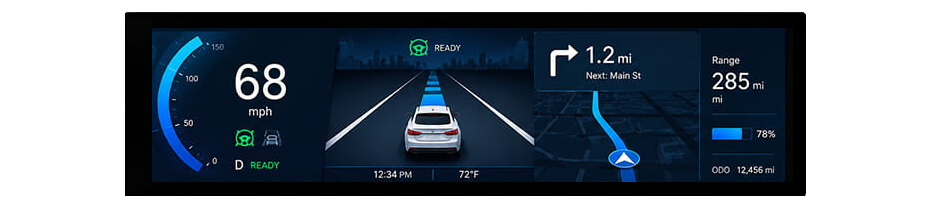

8.8 Inch Stretched Bar Display Overview
ET088RA01-GX is an 8.8-inch diagonal stretched LCD display screen product. ET088RA01-GX supports a display resolution of 480×1920 with a MIPI interface and Normally Black display mode. It features an active area of 54.72(W)×218.88(H) mm and an outline size of 64.05(W)×231.1(H)×4.75(D) mm. It supports a wide viewing angle in all directions (L/R/U/D) and an operating temperature range of -20°C to 70°C. ET088RA01-GX can be equipped with a touch panel and an HDMI driver board, making it suitable for stretched bar displays, secondary monitors, embedded displays, and other applications requiring a long-form display solution.

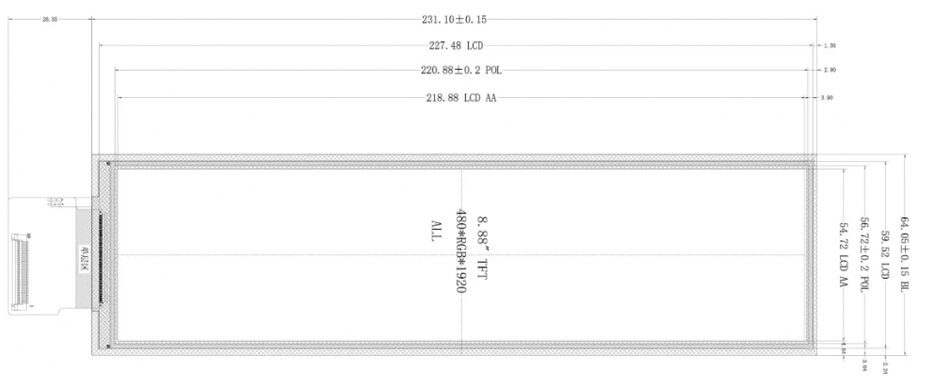

8.8 Inch Stretched Bar Display Drawing

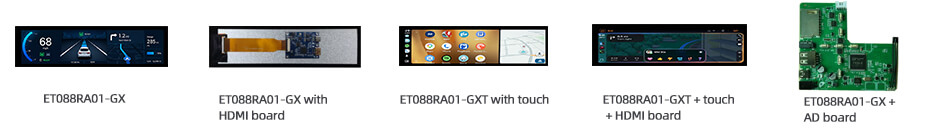

8.8 Inch Bar Displays Solution For Reference
ET088RA01-GX
ET088RA01-GX with HDMI board
ET088RA01-GXT with touch
ET088RA01-GXT + touch + HDMI board
ET088RA01-GX + AD board
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
