6.4 Inch AMOLED Display Overview

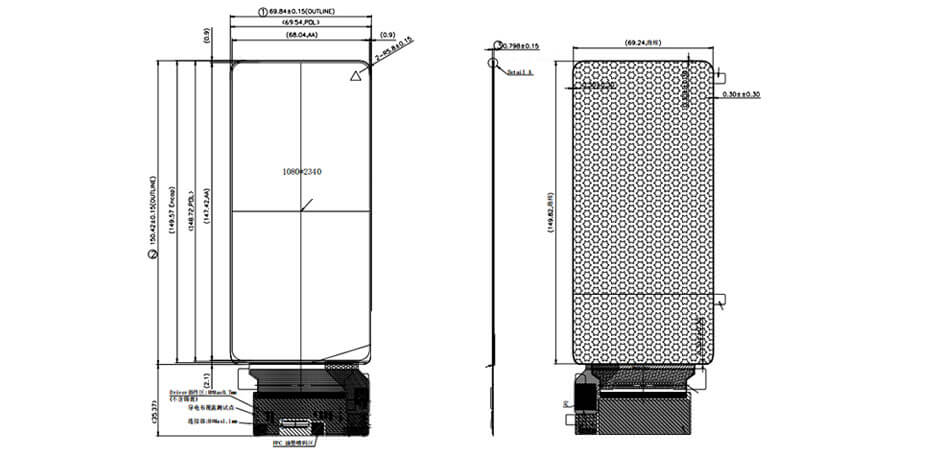

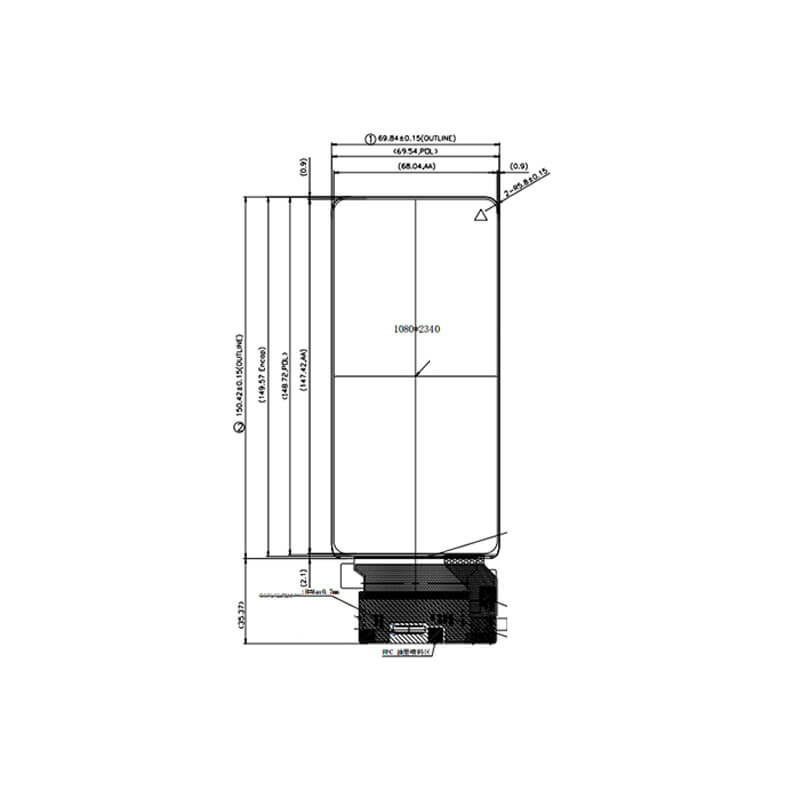

ET064AM03-WT is a 6.4 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET064AM03-WT supports a resolution of 1080×2340 with an approximate 19.5:9 aspect ratio (W:H) and offers viewing angles of 80/80/80/80 (L/R/U/D). It features an active area of 68.04(W) × 147.42(H) mm and an outline dimension of 69.84(W) × 150.42(H) × 0.798(D) mm, and adopts a MIPI interface for signal transmission. The display provides a brightness of 430 nits and operates within a temperature range of -20°C to 70°C (storage: -40°C to 80°C). With integrated capacitive touch functionality, ET064AM03-WT is suitable for interactive applications requiring high-quality display performance.
AMOLED Displays Technology
