6.6 Inch AMOLED Display Overview

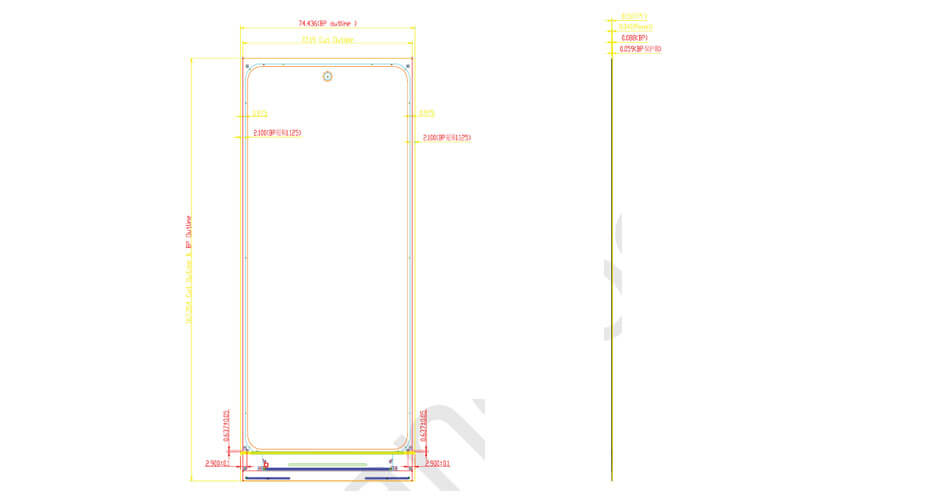

TA066FJMK01-00 is a 6.6 inch diagonal AM-OLED display screen product from TIANMA, it self emiting.TA066FJMK01-00 supports display 1080(RGB)×2400 with aspect ratio of 9:20 (W:H), whose pixels are arranged in Windmill, according to calculation of Panelook it's pixel density is 401 PPI. It features active area of 68.26(W)×151.68(H) mm, outline size of 74.436(W)×167.354(H)×0.44(D) mm, with surface treament of Hard coating. TA066FJMK01-00 can provides 500 cd/m² display brightness 1000000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Max.)(Tr+Td) ms., also with performance of color gamut 100% (DCI-P3).
More 6.6 Inch AMOLED Displays For Reference
A066FJMK01-00 (1080×2400, IPS, 500nits, -20~70°C, 74.436×167mm)
ET066AM01-A (1080×2400, MIPI, IPS, 770nits, -20~70°C, 71.452×157.41mm)
